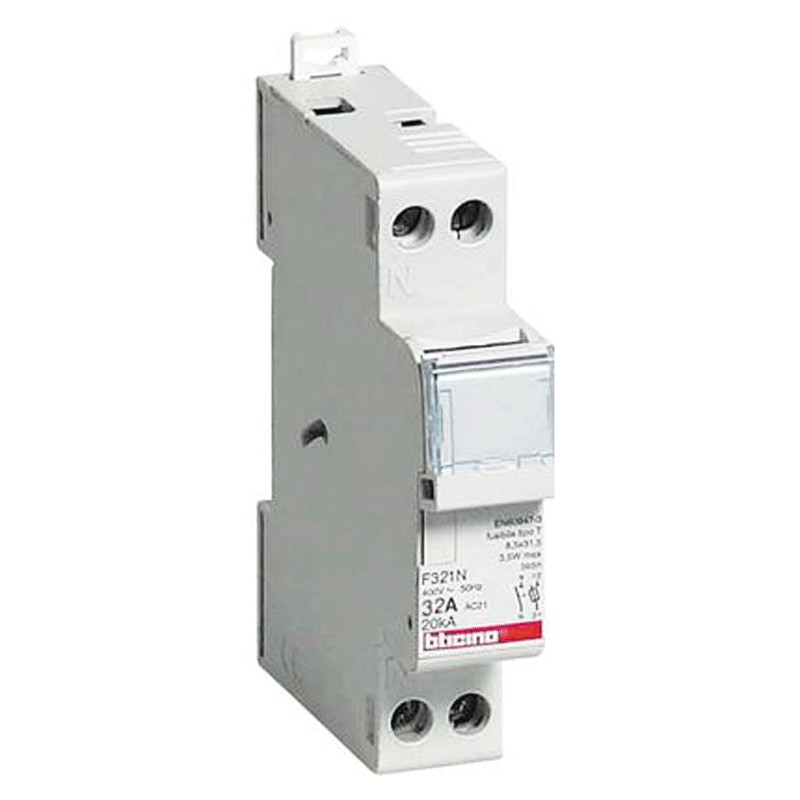

Bticino fuse disconnector 1P+N 32A 500V 1 module F321N
BTI F321N
8012199163369
Bticino fusible switch disconnector, with the following characteristics:
- Voltage 500 Vac
- Current In 32A
- 1 module
- Poles 1P+N
Bticino fuse disconnector 1P+N 32A 500V 1 module F321N
€14.61
Tax included
€14.61
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 121
: 18
Pay in installments with Klarna
Thedisconnector, otherwise called voltage isolator, has the same features of a switch, but on a larger scale: it is, in fact, responsible for closing the flow of energy to the power plants. This serves mainly to ensure the safety of the plant and primarily of the people who work inside since one of its peculiarities is to separate the flow of energy from the working environments. Another peculiarity of this instrument is the ability to detect defects in the electrical flow and isolate them. When the defect is corrected, the disconnector will ensure that the current flows normally again.
Features:
- Bticino series
- Voltage 500 Vac
- Current In 32A
- 1 module
- Poles 1P+N
- Degree of protection IP20
- Height 83 mm
- Width 17,7 mm
- Depth 73 mm
- Maximum cable section 10/16 mmq
Data sheet
- Voltage: 500VAC
- Modules: 1
- Poles: 1P+N
- Amps: 32A
- Circuit Protections: Disconnectors
- Operating voltage: AC
