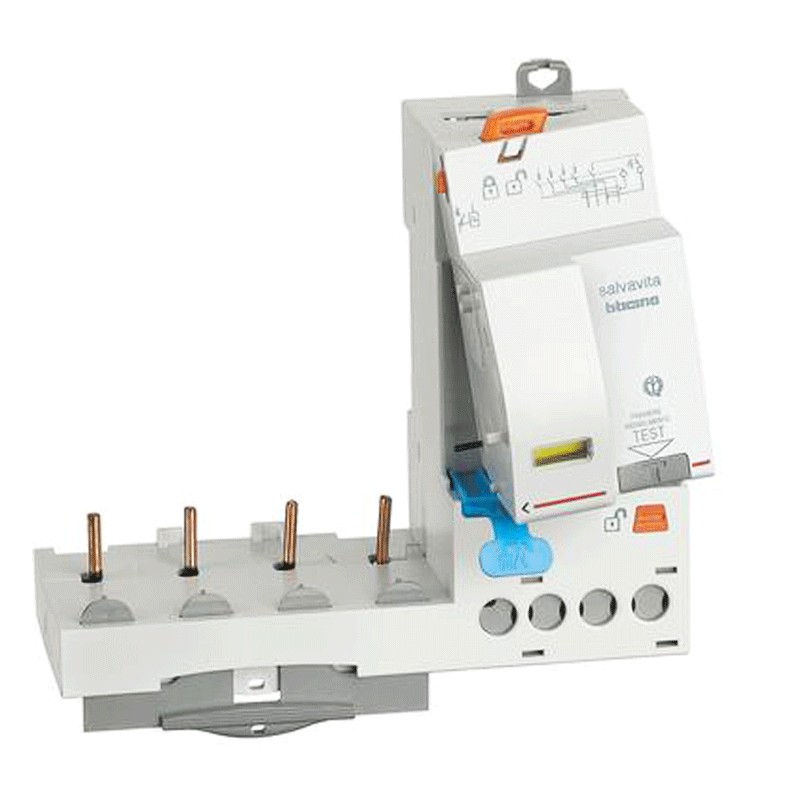

Bticino residual current circuit breaker 4P AC 32A 500mA 2 modules G45AC32
BTI G45AC32
8005543463239
Bticino differential block (circuit breaker), with the following characteristics:
- 2 modules
- DIN connection (universal for any switchboard on the market)
- 4 poles
- 32 amperes
- Differential current Idn 500mA
- Voltage 400 Vac
- AC differential type
Bticino residual current circuit breaker 4P AC 32A 500mA 2 modules G45AC32
€123.06
Tax included
€123.06
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 20
Pay in installments with Klarna
The differential blocks are mechanically designed to prevent a wrong coupling between the block and the circuit breaker: the power of the block must always be equal or greater than that of the circuit breaker. The lateral plastic clamp allows a quicker assembly of the block on the circuit breaker and a push button prevents possible interventions.
It is used to protect human health in case of earth fault (electrical leakage) or phase-to-earth electrocution, thus providing protection also against macro electrical shock, both direct and indirect, on exposed persons.
The AC differential blockworks only with alternating current. Almost all civil installations fall into this typology.
Characteristics:
- Bticino series
- Voltage 400Vac
- Current In 32A
- Differential current Idn 500mA
- AC differential type
- 2 modules
- 4 poles
- Degree of protection IP20
- Height 83 mm
- Width 35.6 mm
- Depth 76 mm
- Maximum cable section 25/35mmq
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 2
- Poles: 4P
- RCD Type: AC
- Differential current : 0.5A
- Amps: 32A
- Circuit Protections: Earth Leakage add-on Blocks
