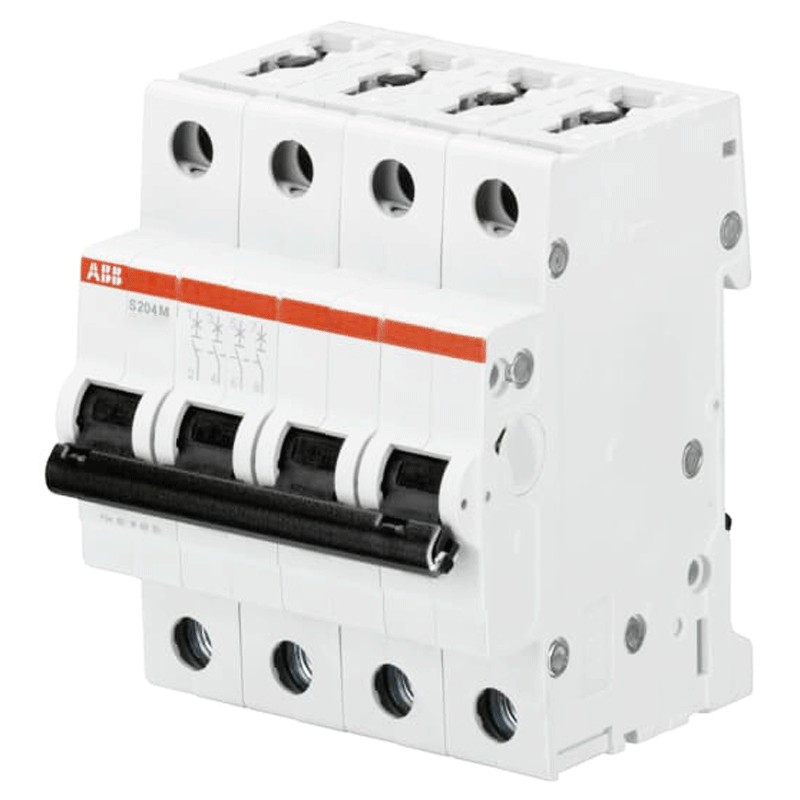

ABB Circuit breaker 4P 32A 10kA C Type 4 Modules S204M
ABB S550789
4016779550789
Abb Thermal-magnetic circuit breaker, 4 modules, DIN connection (universal for any switchboard on the market), poles 4P, 32 amperes, breaking capacity 10kA, voltage 400 Vac, curve C.
ABB Circuit breaker 4P 32A 10kA C Type 4 Modules S204M
€100.83
Tax included
€100.83
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 75
: 16
Pay in installments with Klarna
The C-curve can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic installations.
A circuit breaker is a safety device that can automatically (i.e. without external intervention) interrupt the flow of electrical current in an electrical circuit in the event of an overcurrent.
Features:
- Abb series
- Voltage 400 Vac
- Current In 32A
- Interrupting capacity Icn 10kA
- Rated frequency 50/60 Hz
- Tripping curve C
- 4 modules
- Poles 4P
- Actuator marking I / O
- Contact position indication Red ON / Green OFF
- Height 88 mm
- Width 70 mm
- Depth 69 mm
- Recessed depth 69 mm
- Net weight 0.5 kg
- Degree of protection IP20
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 4
- Poles: 4P
- Curve: C
- Power: 10KA
- Amps: 32A
- Circuit Protections: Circuit breakers
