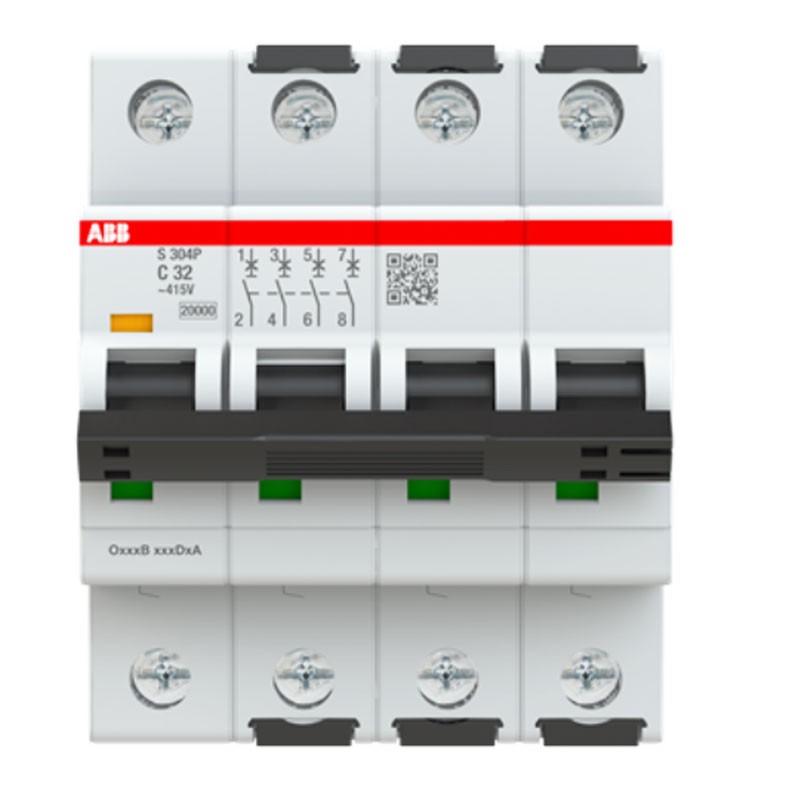

Abb circuit breaker S304P 4P 32A 25kA type C 4 modules S304PC32
ABB S304PC32
4016779590815
Abb automatic miniature circuit breaker S304P series, with the following characteristics:
- Tripping characteristic: C
- Rated operating voltage: acc. to IEC 60898-1 415V AC - acc. to IEC 60947-2 415V AC
- Rated insulation voltage (U i ):acc. to IEC/EN 60664-1 500V
- Rated impulse withstand voltage (U imp):6kV
- Dielectric proof voltage:50/60 Hz, 1 minute:2kV
- Input voltage type:AC/DC
- Rated current:32 amps
- Rated frequency:50/60 Hz
- Power loss:11.6W (at rated operating conditions per pole 2.9W)
- Number of poles: 4
- Number of protected poles:4
- Number of modules:4
Abb circuit breaker S304P 4P 32A 25kA type C 4 modules S304PC32
€106.23
Tax included
€106.23
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
S300P series circuit breakers provide protection in industrial installations against overloads and short circuits. This product is manufactured to IEC and UL international standards for markets where it is required.
Curve C can tolerate short-time overcurrents up to five to ten times the rated current and is widely used in domestic installations.
A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.
Operating voltage:
- Maximum (tolerance included) 457V AC
- Maximum 457V AC
- Minimum 12 V AC
- Minimum 12 V DC
Connection capacity:
- 10 / 10 mm² rod
- Flexible with ferrule 0.75 ... 25 mm²
- Flexible 0.75 ... 25 mm²
- Rigid 0.75 ... 35 mm² Stranded
- 0,75 ... 35 mm²
Other Specifications:
- Rated short-circuit capacity:(AC) 20 kA
- Rated maximum short-circuit breaking capacity (I cu ):(415 V AC) 25 kA - (440 V AC) 15 kA
- Power connection: Arbitrary
- Contact position indication: Red ON / Green OFF
- Electrical resistance: 10000 AC cycle
- Mechanical resistance: 20000 cycle
- Overvoltage category: IV
- Tightening torque: 2.8 Nm
- Type of screw terminal: Fault-tolerant bi-directional cylinder lifting terminal
- Actuator marking: I/O
- Actuator material: Insulation group II, black, sealable
- Housing material:Insulation group I, RAL 7035
- DIN rail mounting:TH35-15 (mounting rail 35 x 15 mm) acc. to IEC 60715 - TH35-7.5 (mounting rail 35 x 7.5 mm) acc. to IEC 60715
- Mounting position: Any
- Recommended screwdriver: Pozidrive 2
- Operating temperature: -40/+70°C
- Storage temperature: -55/+70°C
- Cable stripping length: 14 mm
- Degree of protection: IP20 housing, with cover IP40
- Pollution degree: 3
- Environmental conditions: 28 cycles at 55°C / 90-96 % and 25°C / 95-100 %
- Vibration resistance acc. to IEC 60068-2-6:5g, 20 cycles at 5...150...5 Hz with 0.8 In load
- Shock resistance acc. to IEC 60068-2-27:25 g / 3 shocks / 18 ms
- Torque: UL/CSA: 18 in.
- Dimensions: width 70mm, height 88mm, net depth/length 69mm
- Net weight: 0.496 kg approx.
There are no reviews
Data sheet
- Voltage:
- 400VAC
- Modules:
- 4
- Poles:
- 4P
- Curve:
- C
- Power:
- 25KA
- Amps:
- 32A
- Circuit Protections:
- Circuit breakers
