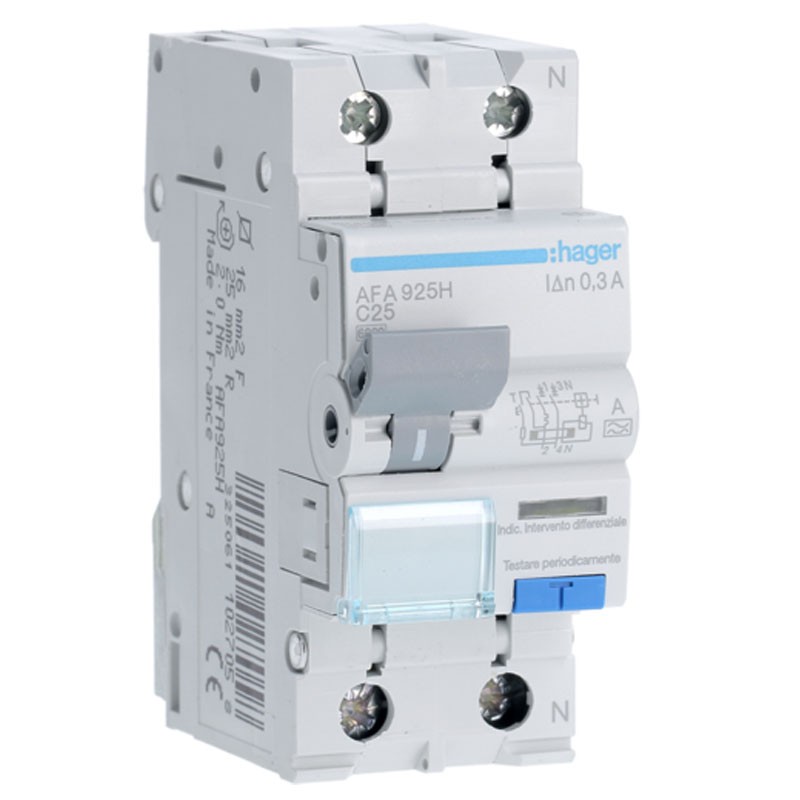

Hager Magnetothermal Circuit Breaker 1P+N 300MA 25A AFA925H

Hager
Hager
HAG AFA925H 3250611027058

Hager differential magnetothermal circuit breaker, 2 modules, DIN connection (universal for any switchboard on the market), 1P+N, 20 amperes, breaking capacity 6kA, rated operating voltage AC 240 Vac, rated differential current 300mA, type A, trip curve C.


Request info about this product

Hager Magnetothermal Circuit Breaker 1P+N 300MA 25A AFA925H

€158.47 Tax included
€158.47

Hager Magnetothermal Circuit Breaker 1P+N 300MA 25A AFA925H

€158.47
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 7
Altre disponibilità dal produttore
qty

Hager Magnetothermal Circuit Breaker 1P+N 300MA 25A AFA925H

€158.47

Buy it within and receive it from Monday, 22 December
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

The residual current circuit breaker in the electrical system integrates three different protections:

  • the magnetic one for short circuits that can put an entire building at risk with the danger of fire
  • the thermalone for overloads in the power supply (e.g., more than one appliance in operation)
  • the differential proper of the circuit breaker that protects the subject from a power leakage


The C curve, trip threshold of 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic systems.


The differential circuit breaker type A trip is provided for alternating sine differential currents and unidirectional pulsating differential currents applied suddenly or slowly increasing (IEC EN 61008-1).


Features:

  • Hager series
  • Right neutral position
  • Number of protected poles 1
  • Voltage Nominal operating voltage AC 240 Vac
  • Current In 25 amperes
  • Interrupting capacity Icn 6kA
  • Tripping curve C
  • Rated differential current 300 mA
  • Rated insulation voltage 500 V
  • Maximum utilization voltage 240 V
  • Rated fault withstand current 4kV
  • 2 modules
  • Poles: 1P+N
  • Protected against untimely tripping: no
  • Rated frequency 50 Hz
  • Differential protection type A
  • Depth 68 mm
  • Height 83 mm
  • Width 35 mm
  • Type of screw connection
  • Tightening torque 2.1 Nm
  • Degree of protection IP20
  • DIN rail mounting mode
  • Altitude 2000m
  • Calibration temperature 30°C

  • Tropicalized execution for all climates
  • Operating temperature: -25/+40°C

There are no reviews

Data sheet

Modules:
2
Poles:
1P+N
Curve:
C
Power:
6KA
RCD Type:
A
Differential current :
0.3A
Amps:
25A
Circuit Protections:
RCBO
