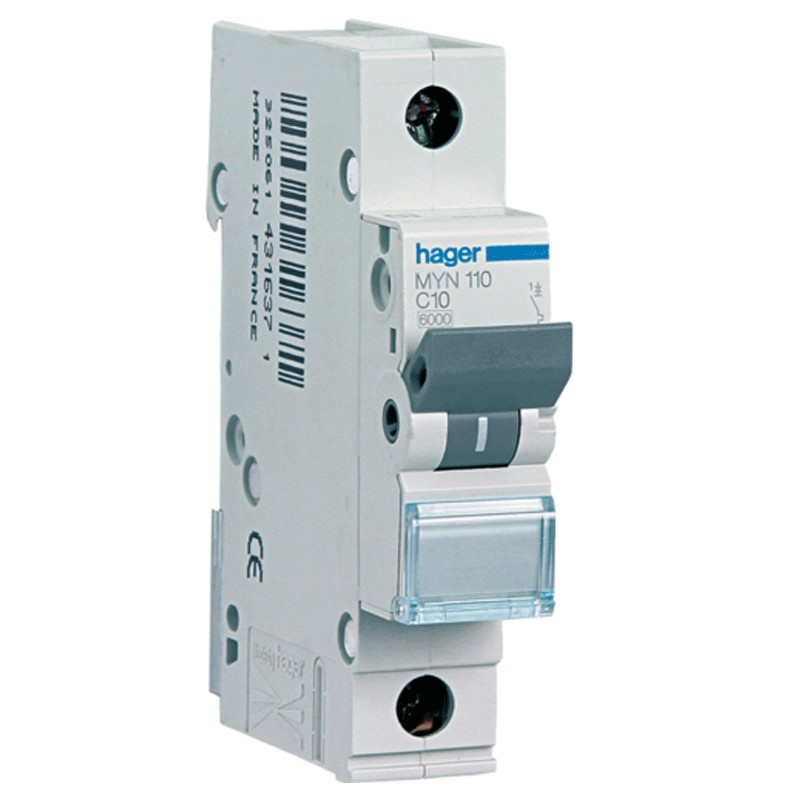

Circuit breaker Hager 1P 10A 4.5 KA C 1 form MYN110
HAG MYN110
3250614340772
Circuit breaker Hager 1P 10A 4.5 KA C 1 form MYN110
Circuit breaker Hager 1P 10A 4.5 KA C 1 form MYN110
€13.23
Tax included
€13.23
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 14
: 4
Pay in installments with Klarna
Technical characteristics rated operational Voltage ac: 230/400 V rated Frequency: 50/60 Hz rated Current in: 10 A Poles: 1 P Power rated breaking capacity Icn: 4.5 kA Curve: C Number of modules 17.5 mm: 1 Power loss per pole: 1,63 W short-circuit Capacity of - NF EN 60898: 4,5 kA rated Voltage, insulation: 500v Number of operations (mechanical endurance): 20000 electrical Life and number of cycles: 4000 protection Index IP: IP20 operating Temperature: -25 to 60 °C storage Temperature: -25 to 80 °C Torque: 2.8 Nm Execution tropicalized for all climates
Data sheet
- Voltage: 230/400VAC
- Modules: 1
- Poles: 1P
- Curve: C
- Power: 4.5KA
- Amps: 10A
- Circuit Protections: Circuit breakers
