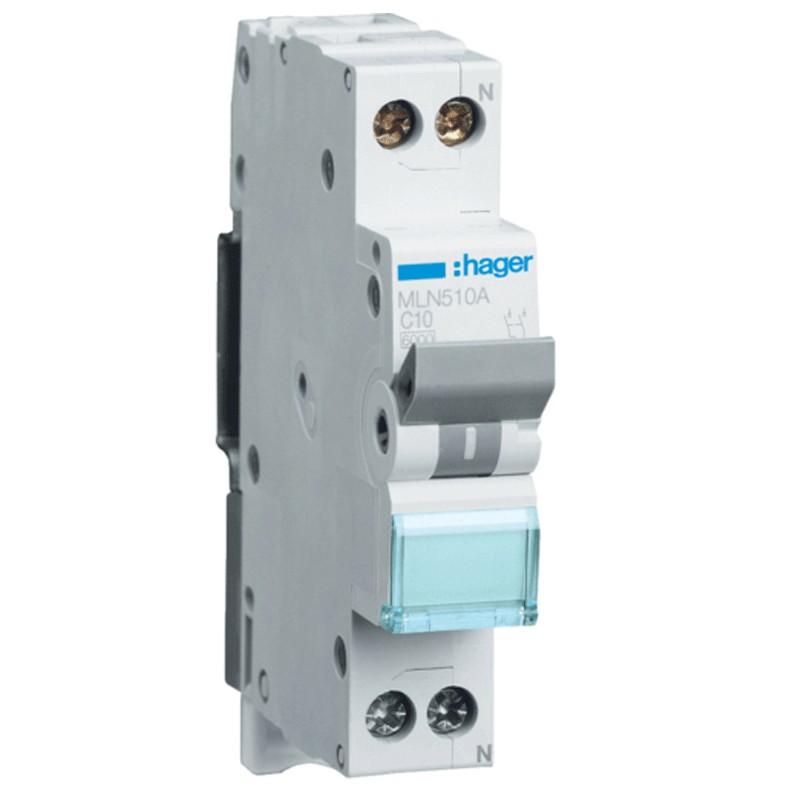

Circuit breaker Hager 1P+N 10A 6K A C 1 module MLN510A
HAG MLN510A
3250614318115
Circuit breaker Hager 1P+N 10A 6K A C 1 module MLN510A
Circuit breaker Hager 1P+N 10A 6K A C 1 module MLN510A
€38.64
Tax included
€38.64
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 24
: 3
Further Hager circuit breaker combinations:
Technical characteristics Rated operational voltage ac: 230-240 V Rated frequency: 50/60 Hz Rated current in: 10 A Number Of Poles: 2 P Power rated breaking capacity Icn: 6 kA Curve: C Number of modules 17.5 mm: 1 Power dissipated per pole: 2.1 W Capacity short-circuit - NF EN 60898: 6 kA Rated voltage insulation: 500 V The number of operations (mechanical endurance): 20000 Electrical life and number of cycles: 1000 The position of the neutral: the right Protection index IP: IP20 Operating temperature: -25 to 60 °C Storage temperature: -25 to 80 °C Tightening torque: 1,9 Nm Execution tropicalized for all climates
Data sheet
- Voltage:
- 230VAC
- Modules:
- 1
- Poles:
- 1P+N
- Curve:
- C
- Amps:
- 10A
- Circuit Protections:
- Circuit breakers
