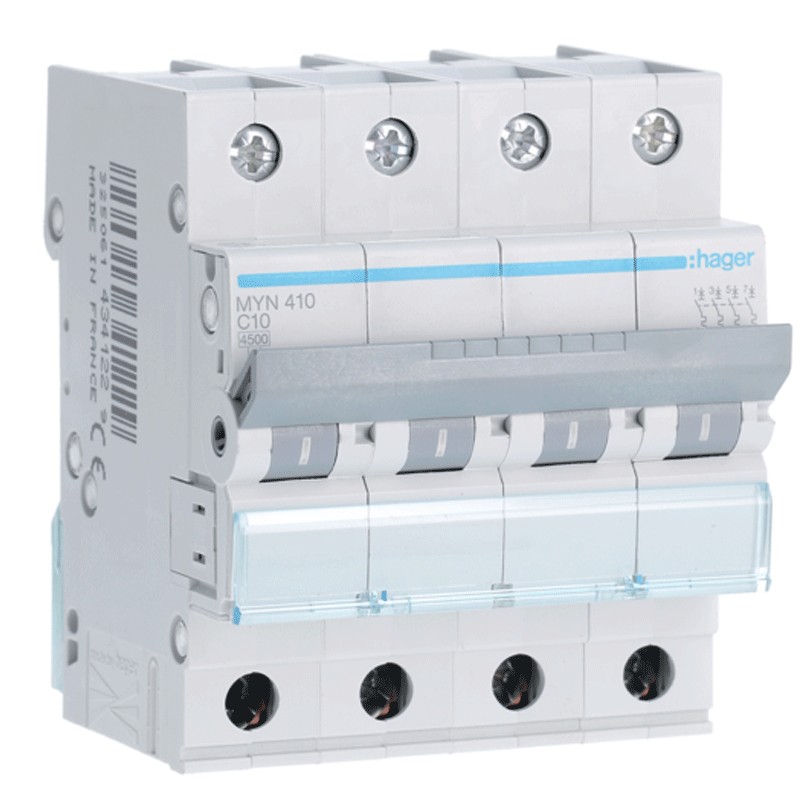

Circuit breaker Hager 4P 10A 4.5 KA C 4 modules MYN410
HAG MYN410
3250614341229
Circuit breaker Hager 4P 10A 4.5 KA C 4 modules MYN410
Circuit breaker Hager 4P 10A 4.5 KA C 4 modules MYN410
€56.03
Tax included
€56.03
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 10
: 2
Technical characteristics rated operational Voltage ac: 230/400 V rated Frequency: 50/60 Hz rated Current in: 10 A Poles: 4 P Power rated breaking capacity Icn: 4.5 kA breaking capacity Icu: 6 kA Curve: C Number of modules 17.5 mm: 4 Power loss per pole: 1.3 W short-circuit Capacity of - NF EN 60898: 4,5 kA rated Voltage, insulation: 500v Number of operations (mechanical endurance): 20000 electrical Life and number of cycles: 4000 protection Index IP: IP20 operating Temperature: -25 to 60 °C storage Temperature: -25 to 80 °C Torque: 2.8 Nm Execution tropicalized for all climates
There are no reviews
Data sheet
- Voltage:
- 400VAC
- Modules:
- 4
- Poles:
- 4P
- Curve:
- C
- Power:
- 4.5KA
- Amps:
- 10A
- Circuit Protections:
- Circuit breakers
