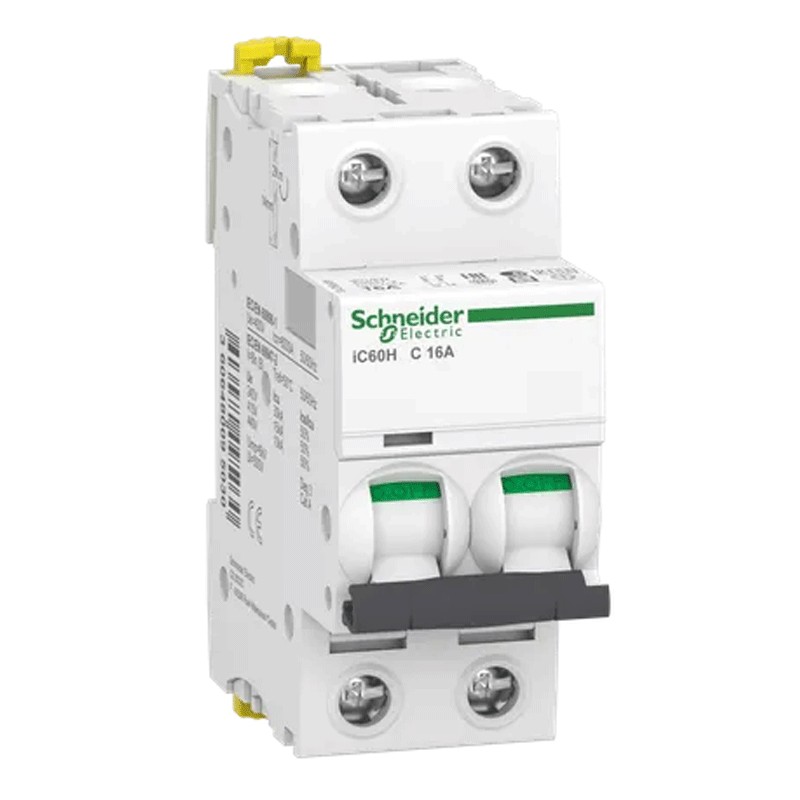

Schneider Circuit breaker 2P 16A 10KA C 2 modules A9F89216
SNR A9F89216
3606480095030
Schneider thermal-magnetic circuit breaker, 2 modules, DIN socket (universal for any switchboard on the market), 2P, 16 amperes, breaking capacity 10kA, rated insulation voltage 500 Vac, trip curve C.
Schneider Circuit breaker 2P 16A 10KA C 2 modules A9F89216
€68.84
Tax included
€68.84
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 87
: 16
C curve, trip threshold 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic installations, residential and functional buildings.
A circuit breaker is a safety device capable of automatically (i.e. without external intervention) interrupting the flow of electric current in an electrical circuit in the event of an overcurrent.
Features:
- Schneider series
- Thermal-magnetic circuit breaker
- Rated insulation voltage 500 Vac
- Current In 16A
- Breaking capacity Icn 10kA
- DIN rail mounting bracket
- Mains frequency 50/60 Hz
- Tripping curve C
- 2 modules
- 2P protected poles
- Height 85 mm
- Depth 78.5 mm
- Width 36 mm
- Product weight 0.25 kg
- Clamp connection
- Tightening torque 2 Nm
- Degree of protection IP20
There are no reviews
Data sheet
- Modules:
- 2
- Poles:
- 2P
- Curve:
- C
- Power:
- 10KA
- Amps:
- 16A
- Circuit Protections:
- Circuit breakers
