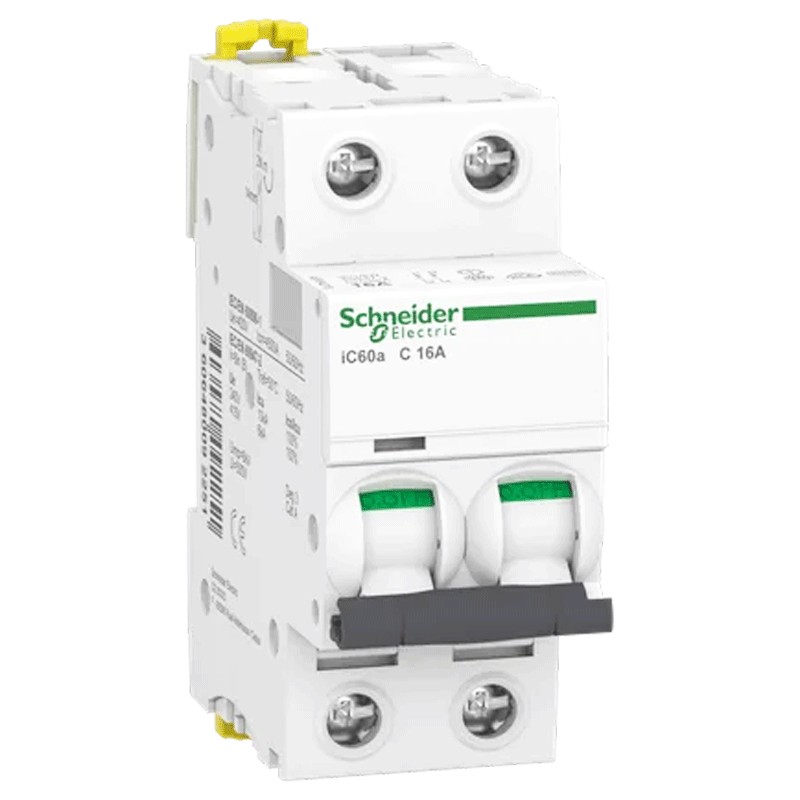

Circuit breaker-Schneider 2P 16A 4,5 KAC 2 modules A9F64216
SNR A9F64216
3606480092251
Circuit breaker-Schneider 2P 16A 4,5 KAC 2 modules A9F64216
Circuit breaker-Schneider 2P 16A 4,5 KAC 2 modules A9F64216
€33.22
Tax included
€33.22
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 97
: 13
Pay in installments with Klarna
Features Presentation Application the Gamma Distribution Acti 9 product Name Acti 9 iC60 Type of product or component, Switch, modular, shortened Name IC60a Number of poles 2P Number of poles protected 2 rated Current [In] 16 A Type AC Technology trip unit circuit Breaker Code C curve breaking capacity 6 kA Icu conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz 10 kA Icu conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz 4500 A Icn conforming to EN/IEC 60898-1 - 400 V AC 50/60 Hz utilization Category Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2 Attitude to slicing It conforming to EN 60947-2 Yes conforming to IEC 60947-2 Yes conforming to EN 60898-1 Yes conforming to IEC 60898-1 reference Standards IEC 60898-1 EN 60898-1 EN 60947-2 IEC 60947-2 technical specifications network Frequency 50/60 Hz Limit of the magnetic release 8 x In +/- 20% rated breaking capacity service [Ics] 4500 100 % x Icu conforming to EN 60898-1 - 400 V AC 50/60 Hz 4500 100 % x Icu conforming to IEC 60898-1 - 400 V AC 50/60 Hz 10 kA 100 % x Icu conforming to EN 60947-2 - 220...240 V AC 50/60 Hz 6 kA 100 % x Icu conforming to EN 60947-2 - 380...415 V AC 50/60 Hz 10 kA 100 % x Icu conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz 6 kA 100 % x Icu conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz limitation Class 3 conforming to EN 60898-1 3 conforming to IEC 60898-1 rated insulation Voltage [Ui] 500 V AC 50/60 Hz conforming to IEC 60947-2 500 V AC 50/60 Hz conforming to EN 60947-2 rated Voltage impulse withstand [Uimp] 6 kV conforming to EN 60947-2 6 kV conforming to IEC 60947-2 Signalling position contacts Type control Lever Reporting of local Indicator shooting Mode Bar mount combo removable installed Support for DIN rail mounting Distance of 9 mm 4. Width 36 mm Depth: 78.5 mm Colour White Connections - terminals single Terminal, top or bottom rigid cable 1...25 mm2 max single Terminal, top or bottom flexible cables 1...16 mm2 max stripping Length wire 14 mm top or bottom tightening Torque 2 Nm top or bottom earth leakage Protection separate Block Environment IP Degree of protection IP20 B conforming to EN/IEC 60529
There are no reviews
Data sheet
- Modules: 2
- Poles: 2P
- Curve: C
- Power: 4.5KA
- Amps: 16A
- Circuit Protections: Circuit breakers
