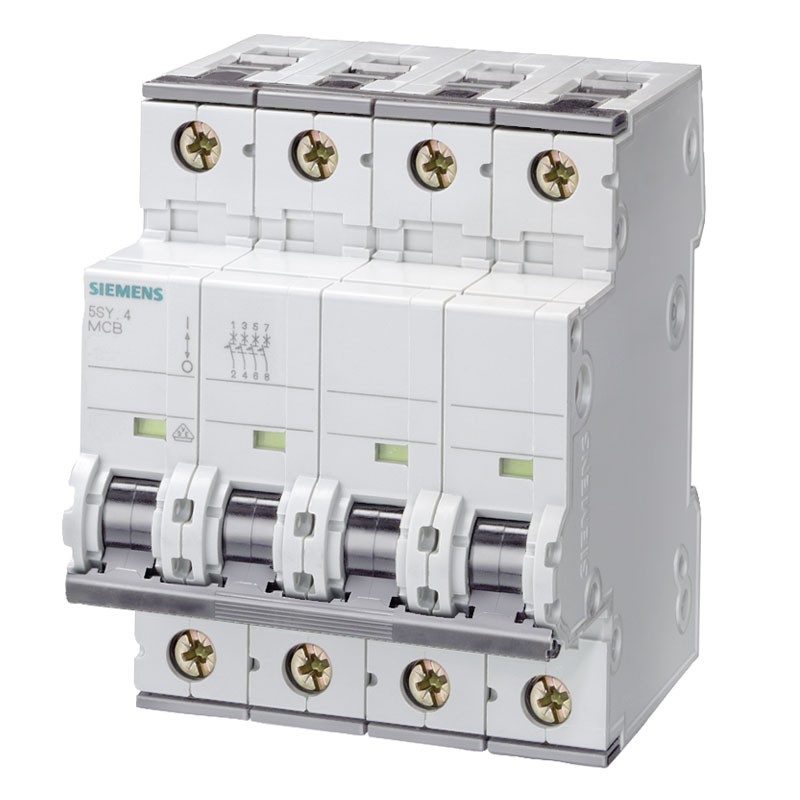

Siemens 4P 10A 10kA type C circuit breaker 4 modules 5SY44107

Siemens
SIE 5SY44107 4001869182216

Siemens circuit breaker with the following characteristics:



  • Supply voltage for single-phase operation with AC 440V
  • Supply voltage with AC rated value 400V, with DC rated value 60V
  • Operating voltage with DC nominal value max 72V
  • Operating current: 10 amperes
  • Breaking capacity 10kA
  • 4 modules DIN connection (universal connection for any switchboard on the market)
  • 4 poles
  • Tripping curve C
Request info about this product

Siemens 4P 10A 10kA type C circuit breaker 4 modules 5SY44107

€67.66 Tax included
€67.66

Siemens 4P 10A 10kA type C circuit breaker 4 modules 5SY44107

€67.66
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 19
Altre disponibilità dal produttore
qty

Siemens 4P 10A 10kA type C circuit breaker 4 modules 5SY44107

€67.66

Buy it within and receive it from Tuesday, 30 September
Two-year warranty
Secure Payment
Easy return within 14 days
Purchase with tax breaks

Curve C can tolerate short-term overcurrents of up to five to ten times the rated current and is widely used in domestic installations.




A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.



Features:

  • Siemens series
  • Mechanical service life (switching cycles) / typ. 10.000
  • Overvoltage category III
  • Pollution degree 3
  • Energy limitation class 3
  • Degree of protection IP20, with conductors connected
  • Power dissipation at current rating / with AC / in hot operating state / per pole 1.1W
  • Short-circuit breaking capacity (Icn): with AC according to UL 1077 and CSA C22.2 No.235: 5 kA
  • Tightening torque with screw terminals: min 2.5 Nm - max 3.5 Nm
  • Mains cable position: any
  • Ambient temperature during operation: min -40 °C - max 70 °C
  • Ambient temperature during storage: min -40 °C - max 75 °C
  • Fastening type: Quick fastening system
  • Any mounting position
  • Number of test cycles per environmental test according to IEC 60068- 2-30: 6
  • Net weight 605 grams



Dimensions:

  • Height 90 mm
  • Width 72 mm
  • Depth 76 mm
  • Recessed depth 70 mm

There are no reviews

Data sheet

Voltage:
400VAC
Modules:
4
Poles:
4P
Curve:
C
Power:
10KA
Amps:
10A
Circuit Protections:
Circuit breakers
