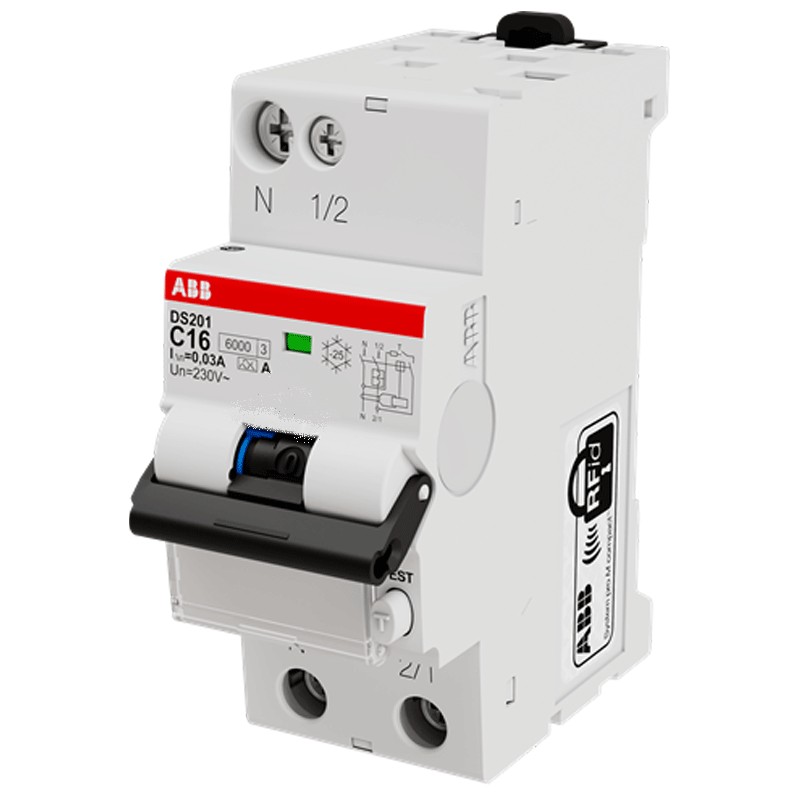

Differential Magnetothermal Abb 16A 1P N 30MA A 6KA 2M DS201C16A30
ABB DS201C16A30
8012542739319
Differential Magnetothermal Abb Rated current 16A, poles 1P N, Sensitivity 30MA, Residual current type: A, Rated short-circuit capacity 6KA, size 2 Modules.
Differential Magnetothermal Abb 16A 1P N 30MA A 6KA 2M DS201C16A30
€133.34
Tax included
€133.34
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 64
: 19
Features:
- Reference standards: IEC/EN 61009-1, IEC/EN 61009-2-1
- Type of residual current: A type
- Number of poles: 2
- Number of protected poles: 1
- Rated current (In): 16 A
- Rated Current Sensitivity: 0.03 A
- Nominal voltage (Ur): 230 V
- Rated insulation voltage (Ui): 500 V
- Overvoltage category: III
- Degree of pollution: 2
- Test Voltage (Ut):170 264 V
- Rated frequency (f):50 60 Hz
- Rated short-circuit rating (Icn): 6 kA
- Extreme rated short-circuit capacity (Icu): 10 kA
- Rated service short-circuit rating (Ics): 7.5 kA
- Rated primary impulse withstand voltage: 4 kV
- Dielectric test voltage: 2.5 kV
- Intervention characteristic: C
- Energy limitation class: 3
- Enclosure type: Insulation group I - II, RAL 7035
- Contact position indication:Red ON / Green OFF
- Degree of protection: IP20
- Terminal Type: Screw Terminals
- Screw Clamp Type: Failsafe Bi-directional Cylinder-lift Terminal
- Cable Size:25 mm²
- Connection capacity: Busbar 10/10 mm² - Stranded 0.75 25 mm² Flexible with Ferrule 0.75 16 mm² - Flexible 0.75 16 mm² - Flexible 0.75 16 mm
- Tightening torque:2.8 N-m
- Cable stripping length: 12 mm
- Dimensions: Product width: 0.035 m - Product height: 0.085 m - Product depth: 0.069 m - Product net weight: 0.200 kg.
There are no reviews
Data sheet
- Modules:
- 2
- Poles:
- 1P+N
- Power:
- 6KA
- RCD Type:
- A
- Differential current :
- 0.03A
- Amps:
- 16A
- Circuit Protections:
- RCBO
