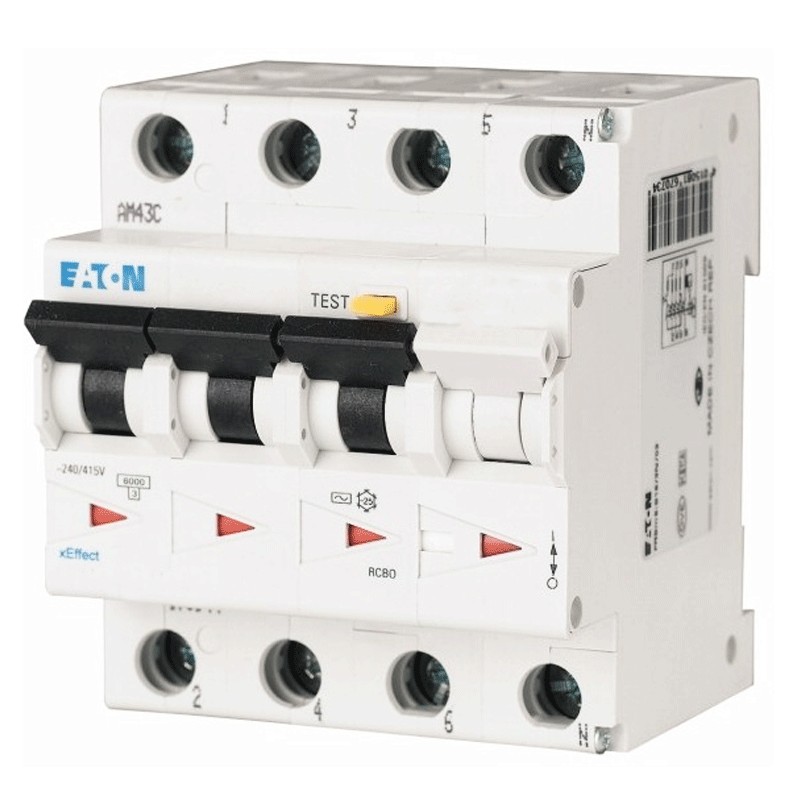

Earth leakage circuit breaker Eaton 16A 3P+E curve C 30Ma 4500ka 170999
EAO 170999
4015081671205
Eaton differential thermomagnetic circuit breaker, 4 modules, DIN connection (universal for any switchboard on the market), 3P+E, 16 amperes, breaking capacity 4.5kA, voltage 240 Vac, trip curve C.
Earth leakage circuit breaker Eaton 16A 3P+E curve C 30Ma 4500ka 170999
€202.07
Tax included
€202.07
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 6
: 2
Pay in installments with Klarna
The thermal-magnetic circuit breaker is located next to the circuit breaker and combines magnetic and thermal protection and, if necessary, interrupts the electrical current.
The thermal-magnetic circuit breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.
The thermal-magnetic differential switch in the electrical system integrates three different protections:
- the magnetic one for short circuits that can put an entire building at risk of fire;
- the thermal one for overloads in the supply of electrical energy (e.g. more than one household appliance in operation);
- the differential which protects the subject from a current leakage.
Features:
- Eaton series
- Voltage 240 Vac
- Current In 16A
- Interrupting capacity Icn 4,5kA
- Intervention curve C
- 4 modules
- 3P+E
- Rated frequency 50 Hz
- Degree of protection IP20
There are no reviews
Data sheet
- Modules: 4
- Poles: 3P+T
- Curve: C
- Power: 4.5KA
- RCD Type: A
- Differential current : 0.03A
- Amps: 16A
- Circuit Protections: RCBO
