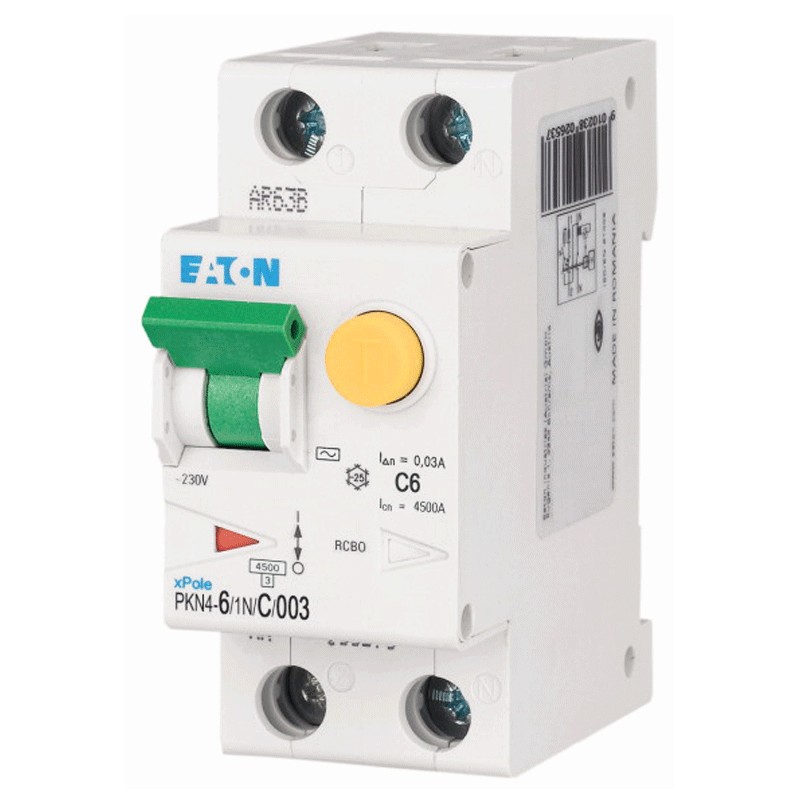

Eaton 6A 1P+N 30MA differential circuit breaker AC type 4.5K 236873
EAO 236873
Eaton differential magnetothermal switch, 2 modules, DIN connection (universal for any switchboard on the market), 1P+N, 6 amperes, breaking capacity 4.5kA, rated insulation voltage 440 Vac, rated differential current 30mA, type AC, trip curve C.
Eaton 6A 1P+N 30MA differential circuit breaker AC type 4.5K 236873
€23.58
Tax included
€23.58
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 129
: 16
The thermal-magnetic circuit breaker is located next to the circuit breaker and combines magnetic and thermal protection and, if necessary, interrupts the electrical current.
The thermal-magnetic circuit breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.
The thermal-magnetic differential switch in the electrical system integrates three different protections:
- the magnetic one for short circuits that can put an entire building at risk of fire;
- the thermal one for overloads in the supply of electrical energy (e.g. more than one household appliance in operation);
- the differential which protects the subject from a current leakage.
The AC residual current circuit breaker type tripping is assured for sinusoidal alternating currents applied suddenly or slowly increasing (CEI EN 61008-1).
Features:
- Eaton series
- Rated insulation voltage 240 Vac
- Current In 6A
- Interrupting capacity Icn 4,5kA
- Trip curve C
- AC differential trip characteristic
- Rated differential current 30 mA
- 2 modules
- 1P+N
- Rated frequency 50 Hz
- Recessed depth 69.5 mm
- Degree of protection IP20
Data sheet
- Modules:
- 2
- Poles:
- 1P+N
- Curve:
- C
- Power:
- 4.5KA
- RCD Type:
- AC
- Differential current :
- 0.03A
- Amps:
- 6A
- Circuit Protections:
- RCBO
