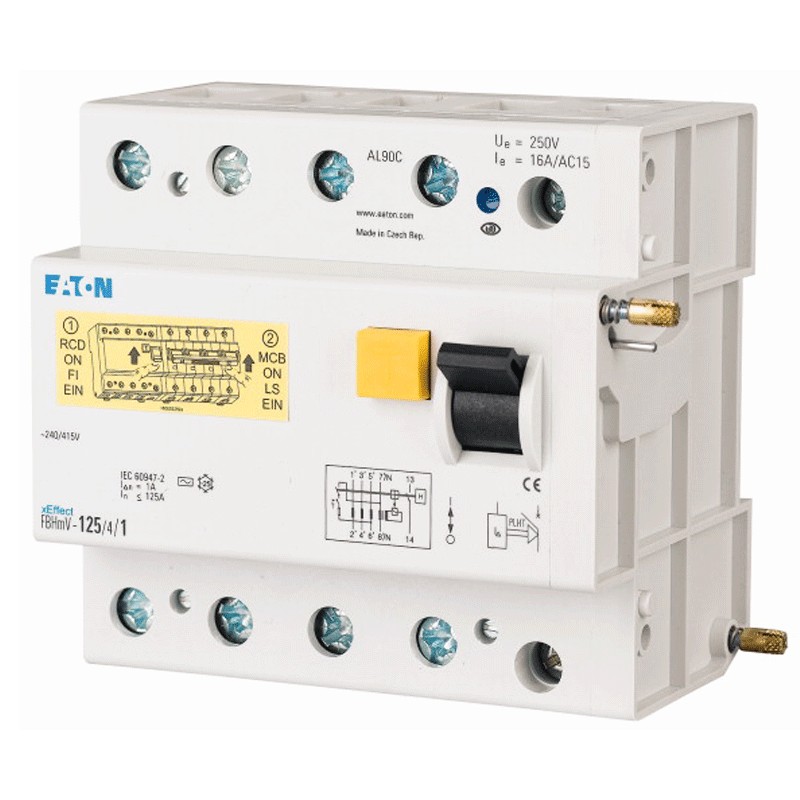

Eaton combinable differential switch 125A 300mA 4P AC 170252
EAO 170252
4015081667543
Eaton differential lock (circuit breaker), with the following features:
- DIN connection (universal for any switchboard on the market)
- 4 poles
- 125 amperes
- 300mA differential current
- Rated voltage 415 Vac
- AC differential type
Eaton combinable differential switch 125A 300mA 4P AC 170252
€148.84
Tax included
€148.84
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
The pure earth leakage pure residual current circuit breaker serves to protect people and not installations. The moment a person touches it, it creates a circuit with the ground. The current instead of staying in the home circuit, uses the human body to go to ground.
The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, when the current is accidentally lost.
A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.
The AC residualcurrent circuit breaker operates only with alternating current. Almost all civil installations fall into this type.
Characteristics:
- Eaton series
- Rated voltage 415 Vac
- Rated insulation voltage Ui 440 V
- Current In 125A
- Differential current 300mA
- Frequency 50 Hz
- AC differential type
- 4 poles
- Degree of protection IP20
- Recessed depth 70 mm
- DIN rail mounting type
Data sheet
- Voltage:
- 415VAC
- Modules:
- 4
- Poles:
- 4P
- RCD Type:
- AC
- Differential current :
- 0.3A
- Amps:
- 125A
- Circuit Protections:
- Earth Leakage add-on Blocks
