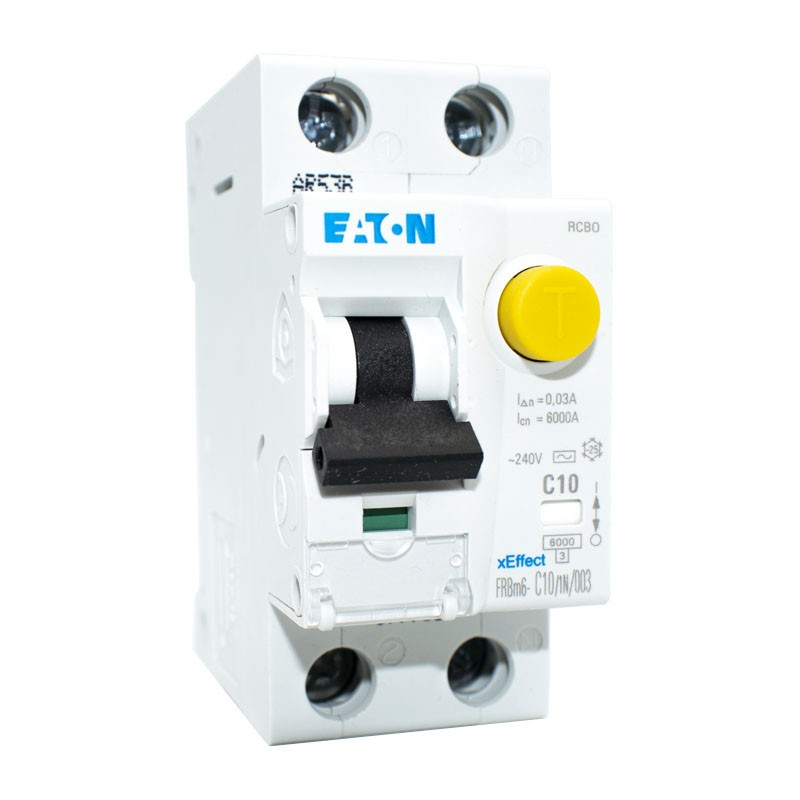

Eaton MD1N10 10A 1P+N 30MA AC 6K residual current circuit breaker 177798

Eaton FRBM6 10A 1P+N 30MA AC 6K residual current circuit breaker 177798

Eaton
Eaton
EAO 177798 4015081723713

Eaton FRBM6 magnetothermal differential switch, 2 modules, DIN connection (universal for any switchboard on the market), 1P+N, 10 amperes, breaking capacity 6kA, differential rated current 30 mA, rated voltage 240 Vac, AC type, trip curve C.


Request info about this product
Eaton MD1N10 10A 1P+N 30MA AC 6K residual current circuit breaker 177798

Eaton FRBM6 10A 1P+N 30MA AC 6K residual current circuit breaker 177798

€69.36 Tax included
€69.36

Eaton FRBM6 10A 1P+N 30MA AC 6K residual current circuit breaker 177798

€69.36
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 34
Altre disponibilità dal produttore
qty

Eaton FRBM6 10A 1P+N 30MA AC 6K residual current circuit breaker 177798

€69.36

Buy it within and receive it from Wednesday, 12 November
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

The thermal-magnetic circuit breaker is located next to the circuit breaker and combines magnetic and thermal protection and, if necessary, interrupts the electrical current.


The thermal-magnetic circuit breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.

The thermal-magnetic differential switch in the electrical system integrates three different protections:

  • the magnetic one for short circuits that can put an entire building at risk of fire;
  • the thermal one for overloads in the supply of electrical energy (e.g. more than one household appliance in operation);
  • the differential which protects the subject from a current leakage.

The C curve, intervention threshold from 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic installations.

The AC type differential switch the tripping is ensured for suddenly or slowly increasing applied sinusoidal alternating currents (CEI EN 61008-1).


Features:

  • Eaton series
  • Rated voltage 240 Vac
  • Current In 10A
  • Interrupting capacity Icn 6kA
  • Rated differential current 30 mA
  • Switching curve C
  • 2 modules
  • 1P+N
  • AC differential type
  • Rated frequency 50 Hz
  • Recessed depth 75.5 mm
  • Degree of protection IP20

There are no reviews

Data sheet

Modules:
2
Poles:
1P+N
Power:
6KA
RCD Type:
AC
Differential current :
0.03A
Amps:
10A
Circuit Protections:
RCBO
