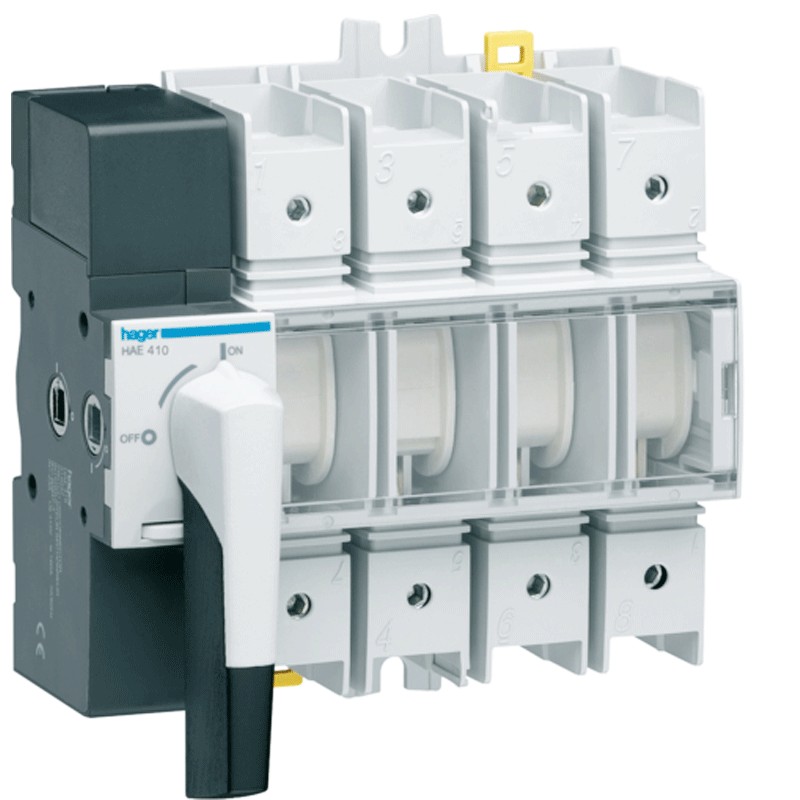

Hager 4P 100A 8 modules disconnector with rotary control HAE410
HAG HAE410
3250613140403
Hager disconnect switch with compact rotary control, with the following characteristics:
- Nominal operating voltage AC 380 / 415 Vac
- Rated insulation voltage 800 V
- Rated fault withstand current 8000 V
- Rated current In 100A
- 8 modules
- 4 poles
- Degree of protection of the enclosure IP20
- DIN rail mounting
Hager 4P 100A 8 modules disconnector with rotary control HAE410
€124.25
Tax included
€124.25
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Thedisconnector, otherwise called voltage isolator, has the same features of a switch, but on a larger scale: it is, in fact, responsible for closing the flow of energy to the power plants. This serves mainly to ensure the safety of the plant and primarily of the people who work inside since one of its peculiarities is to separate the flow of energy from the working environments. Another peculiarity of this instrument is the ability to detect defects in the electrical flow and isolate them. When the defect is corrected, the disconnector will ensure that the current flows normally again.
Features:
- Hager Series
- Nominal operating voltage 380 / 415 Vac
- Rated insulation voltage 800 V
- Rated Fault Holding Current 8000 V
- Rated current In 100A
- 8 modules
- 4 poles
- Built-in fixed box type
- Total power dissipation 12 W
- Power dissipation per pole 3 W
- Rated power at 400V in AC1 65 kW
- Interlockable cover yes
- Minimum cross-section with rigid cable 70mm²
- Screw connection type
- Lug with cable 95 mm²
- Degree of protection of the housing IP20
- Operating temperature -20...+70 °C
- DIN rail mounting
There are no reviews
Data sheet
- Voltage:
- 380/415VAC
- Modules:
- 8
- Poles:
- 4P
- Amps:
- 100A
- Circuit Protections:
- Disconnectors
- Operating voltage:
- AC
