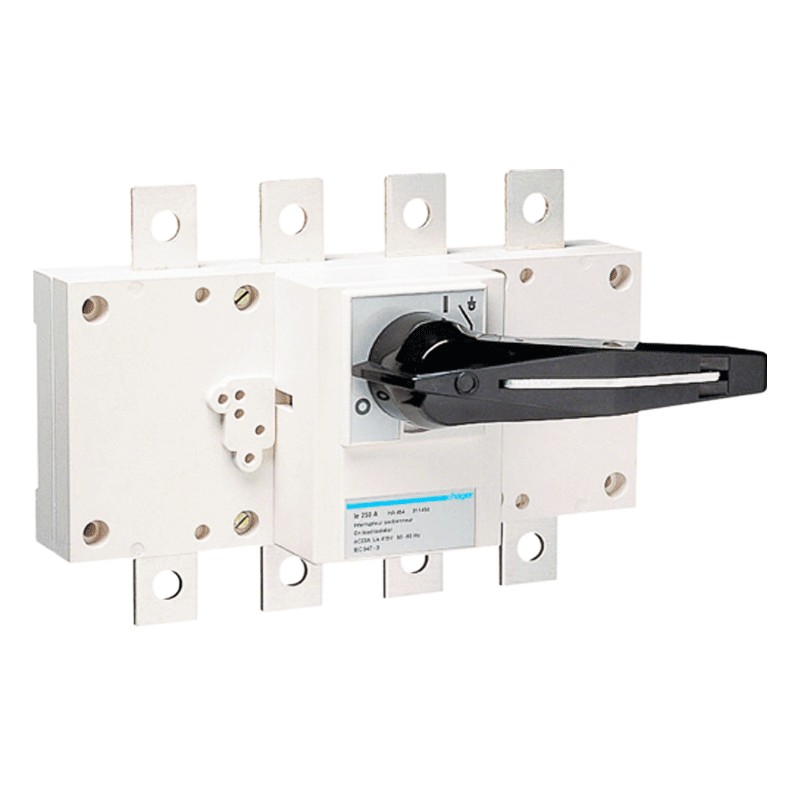

Hager 4P 250A disconnect switch with rotary control HA454
HAG HA454
3250613114541
Hager long rotary switch/disconnector, with the following characteristics:
- Rated operating voltage AC 380 / 415 Vac
- Rated insulation voltage 800 V
- Rated current of resistance to failure 8000 V
- Rated current In 250A
- 4 poles
- Degree of protection of the enclosure IP00
- Type of fixing bottom plate mounting
Hager 4P 250A disconnect switch with rotary control HA454
€267.23
Tax included
€267.23
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
: 2
Pay in installments with Klarna
Thedisconnector, otherwise called voltage isolator, has the same features of a switch, but on a larger scale: it is, in fact, responsible for closing the flow of energy to the power plants. This serves mainly to ensure the safety of the plant and primarily of the people who work inside since one of its peculiarities is to separate the flow of energy from the working environments. Another peculiarity of this instrument is the ability to detect defects in the electrical flow and isolate them. When the defect is corrected, the disconnector will ensure that the current flows normally again.
Features:
- Hager Series
- Nominal operating voltage 380 / 415 Vac
- Rated insulation voltage 800 V
- Rated Fault Holding Current 8000 V
- Rated current In 250A
- 4 poles
- Enclosure protection degree IP00
- Built-in fixed box type
- Cover Interlockable yes
- Minimum section with rigid cable 150mm²
- Type of screw connection
- Cable lug with 120 mm² cable
- Operating temperature -20...+70 °C
- Type of fixing bottom plate mounting
There are no reviews
Data sheet
- Voltage: 380/415VAC
- Poles: 4P
- Amps: 250A
- Circuit Protections: Disconnectors
- Operating voltage: AC
