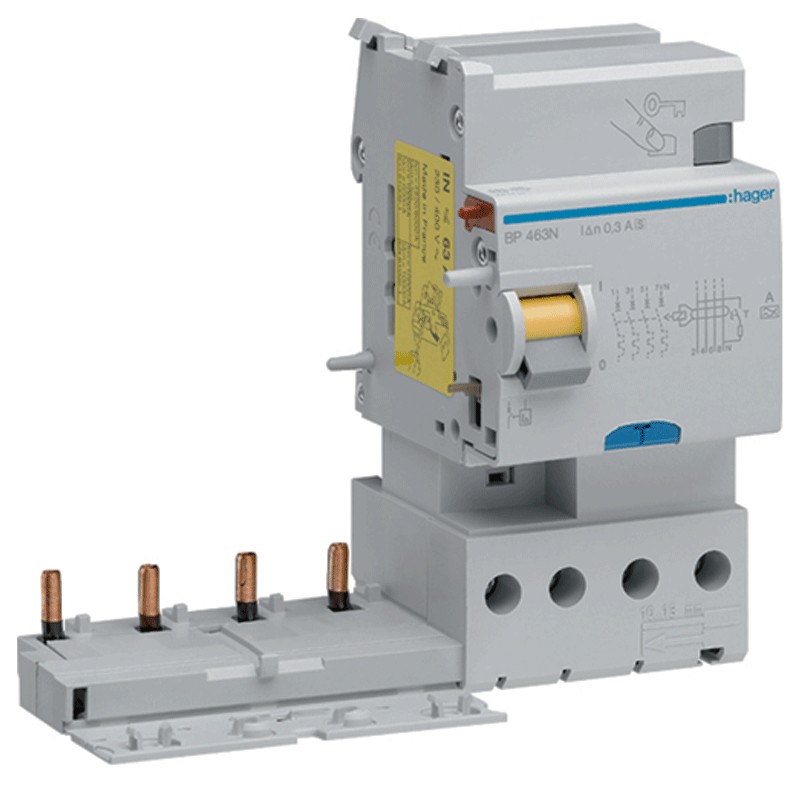

Hager differential lock 4P 63A 300mA A/S 3 modules BP463N
HAG BP463N
3250611464501
Hager selective differential lock (circuit breaker), with the following features:
- DIN connection (universal for any switchboard on the market)
- 4 poles
- 3 modules
- 63 amperes
- Rated differential current 300mA
- Rated operating voltage AC 230/400Vac
- Type of differential A (selective)
Hager differential lock 4P 63A 300mA A/S 3 modules BP463N
€212.39
Tax included
€212.39
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
: 1
Frequently bought together
The pure earth leakage pure residual current circuit breaker serves to protect people and not installations. The moment a person touches it, it creates a circuit with the earth. The current instead of staying in the home circuit, uses the human body to go to ground.
The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, when the current is accidentally lost.
A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.
The differential lock type A, ensures operation for AC and unidirectional pulsating type currents.
Features:
- Hager Series
- Differential lock selective (S)
- Nominal operating voltage 230/400 Vac
- Current In 63A
- 300mA differential current
- Frequency 50 Hz
- Neutral position right
- Rated insulation voltage 500V
- Rated Fault Holding Current 4000V
- Type of differential A
- 4 poles
- 3 modules
- Degree of protection of the enclosure IP20
- Depth of the installed product 9.2 cm
- Height of the installed product 7 cm
- Width of installed product 3.5 cm
- Tightening torque 2.2 Nm
- DIN rail mounting type
There are no reviews
Data sheet
- Voltage:
- 230/400VAC
- Modules:
- 3
- Poles:
- 4P
- RCD Type:
- A
- Differential current :
- 0.3A
- Amps:
- 63A
- Circuit Protections:
- Earth Leakage add-on Blocks
