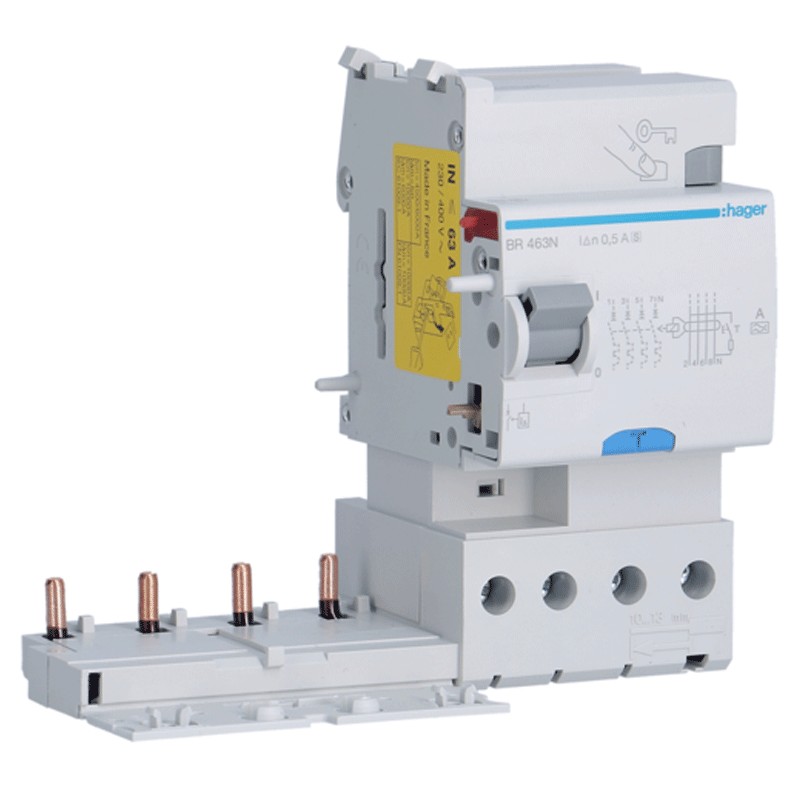

Hager differential lock 4P 63A 500mA A/S 3 modules BR463N
HAG BR463N
3250611484509
Hager selective differential lock (circuit breaker) with the following features:
- DIN connection (universal for any switchboard on the market)
- 4 poles
- 3 modules
- 63 amperes
- Rated differentialcurrent 500mA
- Rated operating voltage AC 230/400Vac
- Type of differential A (selective)
Hager differential lock 4P 63A 500mA A/S 3 modules BR463N
€227.72
Tax included
€227.72
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
: 2
Frequently bought together
The pure earth leakage pure residual current circuit breaker serves to protect people and not installations. The moment a person touches it, it creates a circuit with the earth. The current instead of staying in the home circuit, uses the human body to go to ground.
The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, when the current is accidentally lost.
A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.
The residual current circuit breakertype A-S: selective or delayed residual current circuit breakers: they operate with intentional delay (like type A).
Features:
- Hager Series
- Selective differential selective (S)
- Nominal operating voltage AC 230/400Vac
- Current In 63A
- Differential current 500mA
- Frequency 50 Hz
- Neutral position right
- Rated insulation voltage 500V
- Rated Fault Holding Current 4000V
- Type of differential A
- 4 poles
- 3 modules
- Degree of protection of the enclosure IP20
- Depth of the installed product 9.2 cm
- Height of the installed product 7 cm
- Width of installed product 3.5 cm
- Tightening torque 2.9 Nm
- DIN rail mounting type
There are no reviews
Data sheet
- Voltage:
- 230/400VAC
- Modules:
- 3
- Poles:
- 4P
- RCD Type:
- A
- Differential current :
- 0.5A
- Amps:
- 63A
- Circuit Protections:
- Earth Leakage add-on Blocks
