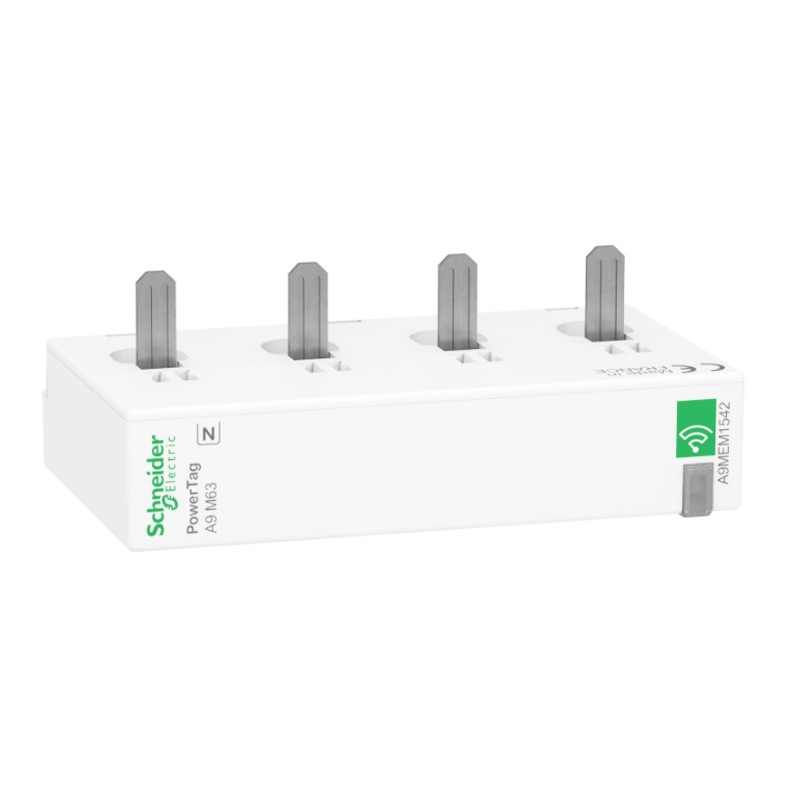

Monitoring sensor Schneider POWERTAG 63A 3P+N valley A9MEM1542
SNR A9MEM1542
Schneider POWERTAG monitoring sensor , with the following characteristics:
-
Poles 3P + N
-
Maximum current [Imax] 63 A
-
Basic current 10 A
-
Input current 40 mA
-
Saturation current 130 A
-
Accuracy class 1
-
Mounting system with screws (terminals)
-
Mains frequency 50 Hz/60 Hz
-
Maximum power 2 VA
-
Colour white (RAL 9003)
Monitoring sensor Schneider POWERTAG 63A 3P+N valley A9MEM1542
€175.40
Tax included
€175.40
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
: 2
Pay in installments with Klarna
Features:
- Schneider Series
- Poles 3P + N
- Maximum current [Imax] 63 A
- Basic Current 10 A
- Input current 40 mA
- Saturation current 130 A
- Accuracy Class 1
- Low mounting position
- Switch mounting bracket
- Screw mounting system (terminals)
- Mains frequency 50 Hz/60 Hz
- Maximum power 2 VA
- Height 16.5 mm
- Width 72 mm
- Depth 43 mm
- Product weight 35 gr
- Colour white (RAL 9003)
- Operating altitude 0...2000 m
- Operating ambient temperature -25...60 °C
- Storage temperature -40...85 °C
- Overvoltage category "III
- Degree of protection IK05
- Degree of protection IP20
- Pollution degree 3
- Relative humidity 0...95 % at 45 °C
There are no reviews
Data sheet
- Type: Monitoring sensors
