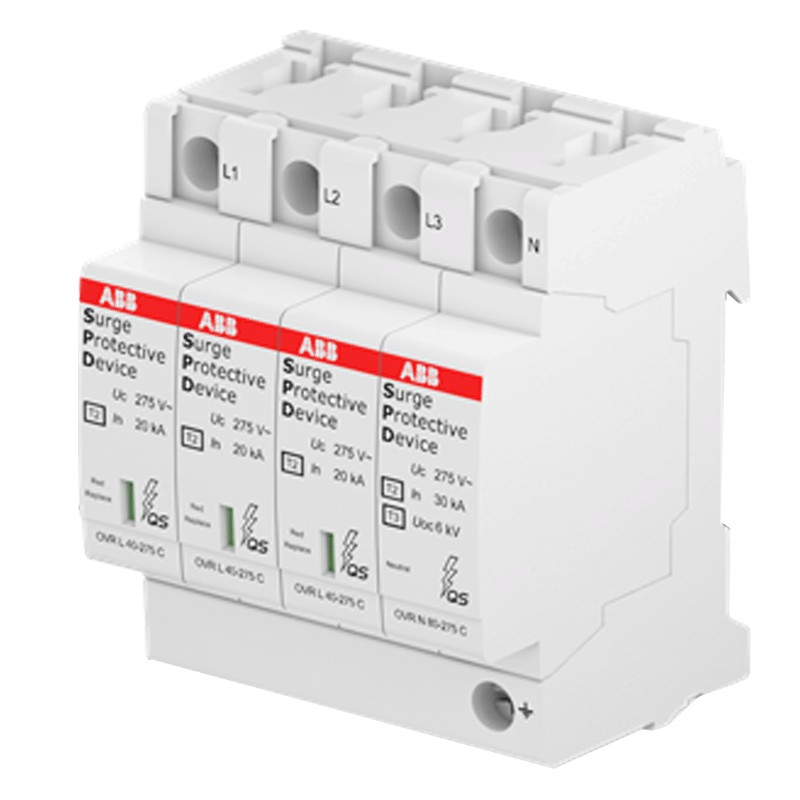

Overvoltage arrester ABB OVR T2 3P+N IMAX 40KA OVR023N40275S
ABB OVR023N40275S
3660308525321
ABB OVR T2 IMAX surge arrester with the following characteristics:
- Nominal AC voltage 230/400 V
- Type of low voltage distribution system TT- TN/S
- Impulse discharge current I (imp, 10 / 350 µs) 2 kA
- Rated discharge current 20 kA - maximum 40 kA - total 160 kA
- 4 modules
- 4 poles protected
- 4P+N contacts
- type 2
Overvoltage arrester ABB OVR T2 3P+N IMAX 40KA OVR023N40275S
€251.86
Tax included
€251.86
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 25
: 2
Pay in installments with Klarna
Article with removable cartridge, it is suitable for installation at the origin of the system, in intermediate switchboards and near terminal equipment, and protects against indirect lightning strikes. It is also equipped with an end-of-life indicator.
The surge arrester is an instrument that can be installed inside the electrical panel, therefore upstream of the home installation. Its use makes it possible to protect the electrical system on which it is installed.
The surge arrester will protect the entire system from surges, surges and peaks of electricity that may come from the operator of the power line, or from atmospheric phenomena such as lightning. These power anomalies can cause serious damage to the devices connected to the outlets.
A power surge can cause the hardware of a PC to break, or short circuit the boards of smartphones, tablets and home appliances. In the event that the flow of energy suddenly increases dramatically, human life can even be at risk due to electrocution.
To prevent this from happening, it is therefore advisable to fit a surge protector.
Surge arresters are divided into three classes:
In class 1 we find devices to be used in areas where adverse weather phenomena such as thunderstorms and lightning usually insist (for example in the mountains). In this case the arrester is mounted in the electrical panel and can withstand several surges without being damaged. The discharge takes place in 350 microseconds, so that the excess energy does not reach the system.
In class 2 there are surge arresters that protect the system from surges and spikes that may be caused by maintenance work on the line by the operator.
In class 3, on the other hand, we find those devices that offer even greater protection: in this case, the surge arrester is installed directly at the electrical outlets present in the home.
Features:
- Abb series
- Nominal AC voltage 230/400 V
- Type of low voltage distribution system TT- TN/S
- Impulse discharge current I (imp, 10 / 350 µs) 2 kA
- Rated discharge current 20 kA - maximum 40 kA - total 160 kA
- 4 modules
- 4 poles protected
- 4P+N contacts
- type 2
- Plug-in version
- Arrester class II
- Short-circuit proof Icc 100 kA
- Power loss 29 mW
- Width 71.2 mm
- Depth 58 mm
- Height 88 mm
- Net weight 0.48 kg
There are no reviews
Data sheet
- Modules: 4
- Poles: 3P+N
- Maximum current: 40KA
- Version: 2
- Model: AC
- Circuit Protections: Surge protectors
