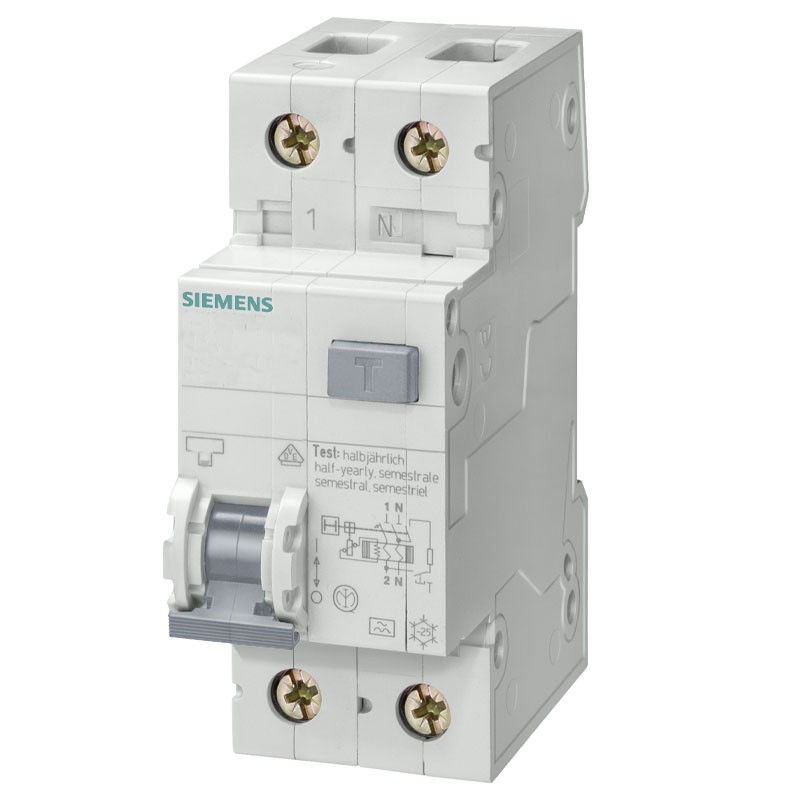

Siemens 20A 30Ma A 4.5KA Differential Circuit Breaker 2M 5SU13537KK20
SIE 5SU13537KK20
4001869306469
Siemens differential magnetothermal circuit breaker, 2 modules, DIN connection (universal for any switchboard on the market), poles 1P+N, 20 amperes, breaking capacity 4.5kA, voltage 230/240 Vac, differential current Idn 30mA, type A, trip curve C.
Siemens 20A 30Ma A 4.5KA Differential Circuit Breaker 2M 5SU13537KK20
€55.79
Tax included
€55.79
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 107
: 15
Pay in installments with Klarna
The thermal-magnetic circuit breaker is located next to the circuit breaker and integrates a magnetic protection to a thermal one, and in case of need it interrupts the electric current.
The thermal-magnetic circuit breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal features.
The magneto-thermal differential switch in the electrical system integrates three different protections:
- the magnetic one for short circuits that can endanger an entire building with the danger of fire;
- the thermal one for overloads in the power supply (e.g., more than one appliance in operation);
- that differential proper of the earth leakage circuit breaker, which protects the subject from a leakage of current.
Type A differential circuit breaker tripping is assured for alternating sine differential currents and unidirectional pulsating differential currents applied suddenly or slowly increasing (IEC EN 61008-1).
Features:
- Siemens series
- Voltage 230/240 Vac
- Current In 20A
- Interrupting capacity Icn 4.5kA
- Tripping curve C
- Differential current Idn 30mA
- Type of differential A
- Frequency of use 50 Hz
- 2 modules
- Mechanical service life (switching cycles) typ. 10.000
- Overvoltage category III
- Pollution degree 2
- 1P+N poles
- Height 90 mm
- Width 36 mm
- Depth 77 mm
- Recessed depth 70 mm
- Mounting position: any
- Net weight 276 grams
- Tightening torque / with screw terminals min 2.5 Nm, max 3 Nm
- Degree of protection IP20, for installation in distribution board, with conductors connected
- Influence of ambient temperature: max. 95% relative humidity
- Ambient temperature during operation: -25/+55 °C
- Ambient temperature during storage: -40/+75 °C
- Number of test cycles for environmental test according to IEC 60068-2-30: 28
There are no reviews
Data sheet
- Modules: 2
- Poles: 1P+N
- Curve: C
- Power: 4.5KA
- RCD Type: A
- Differential current : 0.03A
- Amps: 20A
- Circuit Protections: RCBO
