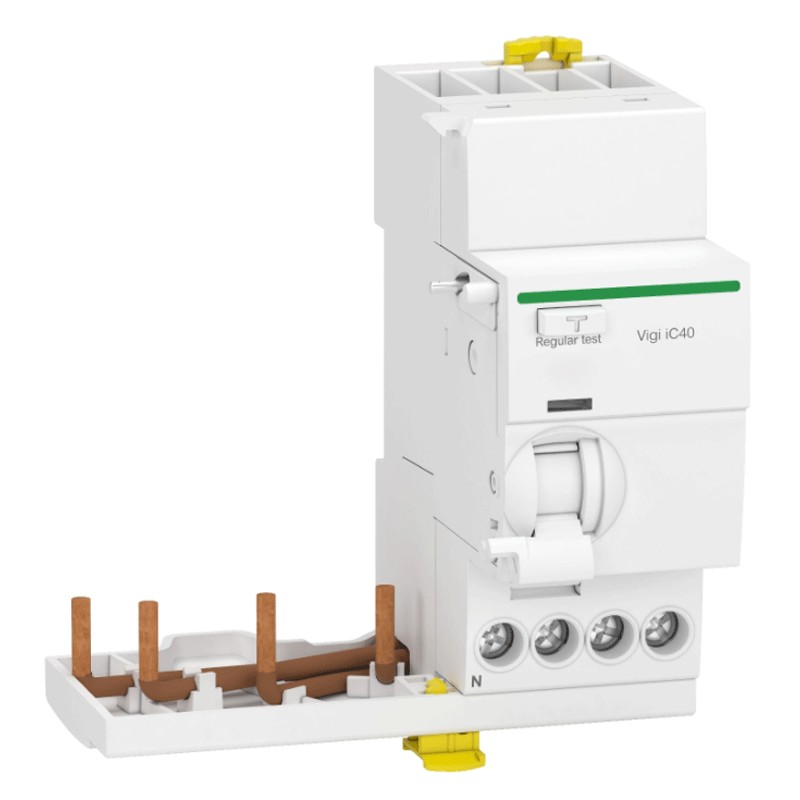

Schneider Acti9 3P+N 25A 300mA AC 2M differential lock IC40 A9Y83725

Schneider
Schneider
SNR A9Y83725 3606481328205

Schneider differential lock (circuit breaker), Acti9 range, with the following characteristics

  • DIN connection (universal for any switchboard on the market)
  • 3P+N
  • 2 modules
  • 25 amperes
  • Rated differential current 300 mA
  • Rated operating voltage 400 Vac
  • AC differential type
  • Device name Vigi IC40

Request info about this product

Schneider Acti9 3P+N 25A 300mA AC 2M differential lock IC40 A9Y83725

€118.22 Tax included
€118.22

Schneider Acti9 3P+N 25A 300mA AC 2M differential lock IC40 A9Y83725

€118.22
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 15
logo priority: 1
Altre disponibilità dal produttore
qty

Schneider Acti9 3P+N 25A 300mA AC 2M differential lock IC40 A9Y83725

€118.22

Buy it within and receive it from Thursday, 13 November
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

The pure earth leakage pure residual current circuit breaker serves to protect people and not installations. The moment a person touches it, it creates a circuit with the ground. The current instead of staying in the home circuit, uses the human body to go to ground.

The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, when the current is accidentally lost.

A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.

The differential block type A/SI, is more immune to electromagnetic disturbances present on networks.

Characteristics:

  • Schneider series
  • Rated voltage of use 400 Vac
  • Current In 25A
  • Differential current 300 mA
  • Mains frequency 50/60 Hz
  • Type of differential A/SI
  • 3P+N
  • 2 modules
  • Local Fault indication
  • Degree of protection of the housing IP20
  • Mounting method
  • DIN rail mounting bracket
  • Height 99.5 mm
  • Width 90 mm
  • Depth 74 mm
  • Product weight 90 gr
  • Colour white
  • Tightening torque 2 Nm
  • Mechanical life 20000 cycles
  • Electrical life 10000 cycles

There are no reviews

Data sheet

Voltage:
400VAC
Modules:
2
Poles:
3P+N
RCD Type:
AC
Amps:
25A
Circuit Protections:
Earth Leakage add-on Blocks
