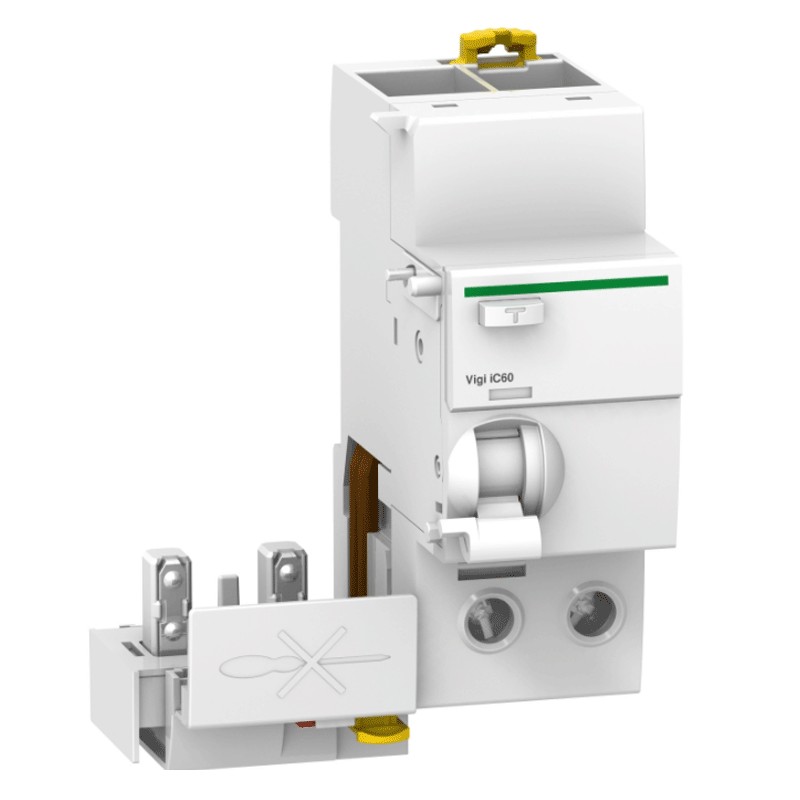

Schneider differential lock 2P 40A 30mA AC 2 modules A9Q41240
SNR A9Q41240
3606480393938
Schneider differential lock (circuit breaker), with the following features:
- DIN connection (universal for any switchboard on the market)
- 2 poles
- 2 modules
- 40 amperes
- Nominal differential current 30 mA
- Rated operating voltage 230/240 Vac
- Type of AC differential
Schneider differential lock 2P 40A 30mA AC 2 modules A9Q41240
€110.48
Tax included
€110.48
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 18
: 13
The pure earth leakage pure residual current circuit breaker serves to protect people and not installations. The moment a person touches it, it creates a circuit with the earth. The current instead of staying in the home circuit, uses the human body to go to ground.
The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, when the current is accidentally lost.
A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.
The AC residualcurrent circuit breaker operates only with alternating current. Almost all civil installations fall into this type.
Characteristics:
- Schneider series
- Rated voltage 230/240 Vac
- Current In 40A
- Differential current 30 mA
- Mains frequency 50/60 Hz
- AC differential type
- 2 poles
- 2 modules
- Local signalling trigger indicator
- Degree of protection of the housing IP20
- Mounting method
- DIN rail mounting bracket
- Height 91 mm
- Width 36 mm
- Depth 73.5 mm
- Product weight 0.165 kg
- Tightening torque 2 Nm
There are no reviews
Data sheet
- Voltage:
- 230/240VAC
- Modules:
- 2
- Poles:
- 2P
- RCD Type:
- AC
- Differential current :
- 0.03A
- Amps:
- 40A
- Circuit Protections:
- Earth Leakage add-on Blocks
