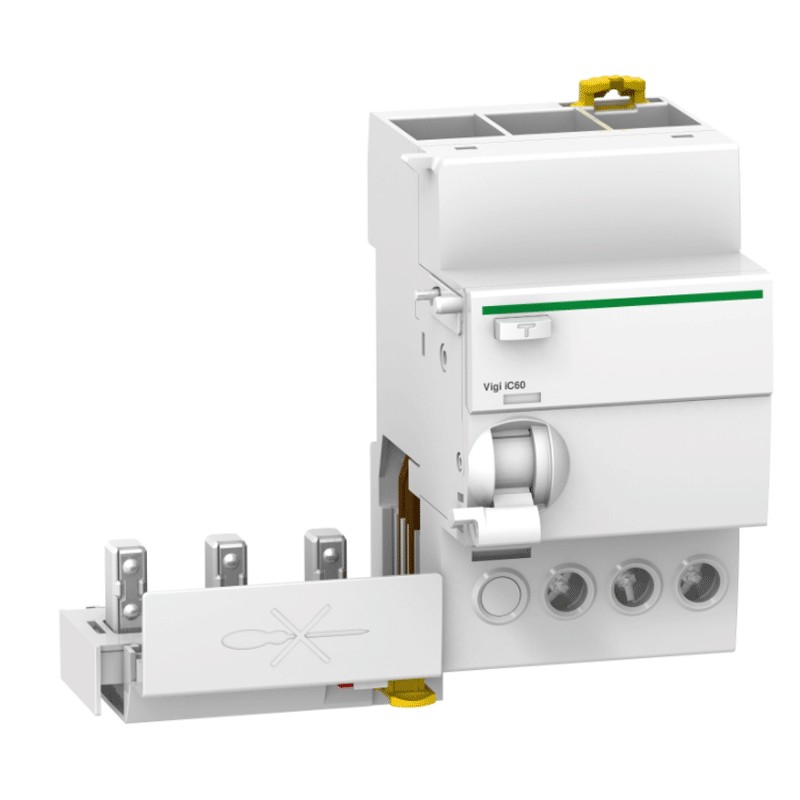

Schneider differential lock 3P 25A 300mA AC 3 modules A9Q44325
SNR A9Q44325
3606480393969
Schneider differential lock (circuit breaker), with the following features:
- DIN connection (universal for any switchboard on the market)
- 3 poles
- 3 modules
- 25 amperes
- Rated differential current 300 mA
- Rated operating voltage 400/415 Vac
- Type of AC differential
Schneider differential lock 3P 25A 300mA AC 3 modules A9Q44325
€123.35
Tax included
€123.35
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 6
The pure earth leakage pure residual current circuit breaker serves to protect people and not installations. The moment a person touches it, it creates a circuit with the earth. The current instead of staying in the home circuit, uses the human body to go to ground.
The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, when the current is accidentally lost.
A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.
The AC residualcurrent circuit breaker operates only with alternating current. Almost all civil installations fall into this type.
Characteristics:
- Schneider series
- Rated voltage of use 400/415 Vac
- Current In 25A
- Differential current 300 mA
- Mains frequency 50/60 Hz
- AC differential type
- 3 poles
- 3 modules
- Local signalling trigger indicator
- Degree of protection of the housing IP20
- Mounting method
- Support for DIN rail mounting
- Height 91 mm
- Width 54 mm
- Depth 73.5 mm
- Product weight 0.210 kg
- Tightening torque 2 Nm
There are no reviews
Data sheet
- Voltage:
- 400/415VAC
- Modules:
- 3
- Poles:
- 3P
- RCD Type:
- AC
- Differential current :
- 0.3A
- Amps:
- 25A
- Circuit Protections:
- Earth Leakage add-on Blocks
