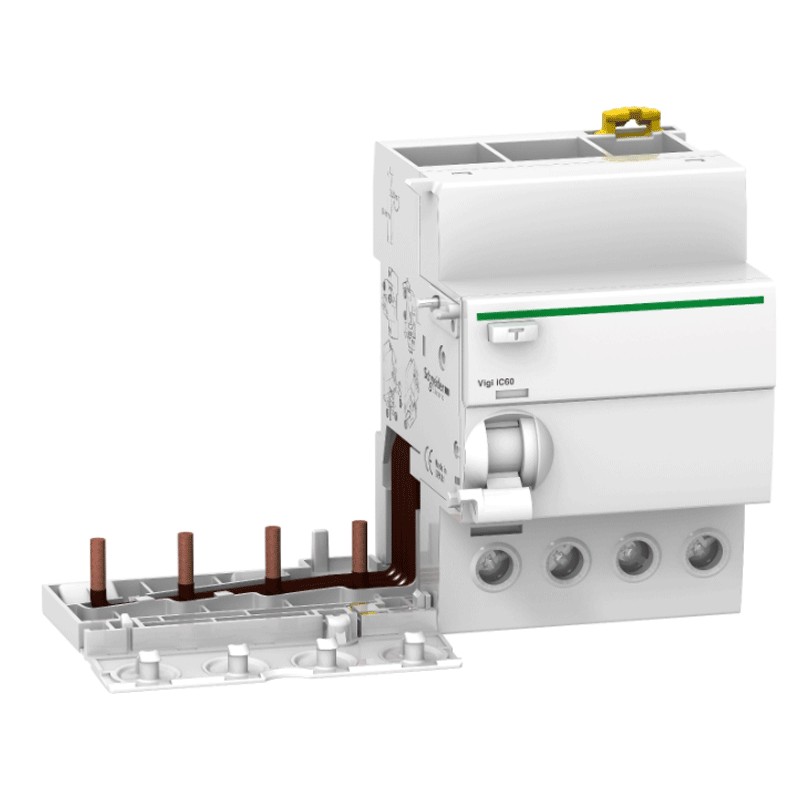

Schneider differential lock 4P 63A 300mA A 3.5 modules A9V54463
SNR A9V54463
3606480090769
Schneider differential lock (circuit breaker), with the following features:
- DIN connection (universal for any switchboard on the market)
- 4 poles
- 3.5 modules
- 63 amperes
- Rated differential current 300 mA
- Rated operating voltage 400/415 Vac
- Type of differential A
Schneider differential lock 4P 63A 300mA A 3.5 modules A9V54463
€199.35
Tax included
€199.35
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 30
: 1
The pure earth leakage pure residual current circuit breaker serves to protect people and not installations. The moment a person touches it, it creates a circuit with the earth. The current instead of staying in the home circuit, uses the human body to go to ground.
The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, when the current is accidentally lost.
A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.
The differential circuit breaker type A, guarantees the operation for AC and unidirectional pulsating type currents.
Characteristics:
- Schneider series
- Rated voltage 400/415 Vac
- Current In 63A
- Differential current 300 mA
- Mains frequency 50/60 Hz
- Type of differential A
- 4 poles
- 3.5 modules
- Local signalling trip indicator
- Degree of protection of the housing IP20
- Mounting method
- DIN rail mounting bracket
- Height 91 mm
- Width 135 mm
- Depth 73.5 mm
- Product weight 0.245 kg
- Tightening torque 3.5 Nm lower part
There are no reviews
Data sheet
- Voltage:
- 400/415VAC
- Modules:
- 3.5
- Poles:
- 4P
- RCD Type:
- A
- Differential current :
- 0.3A
- Amps:
- 63A
- Circuit Protections:
- Earth Leakage add-on Blocks
