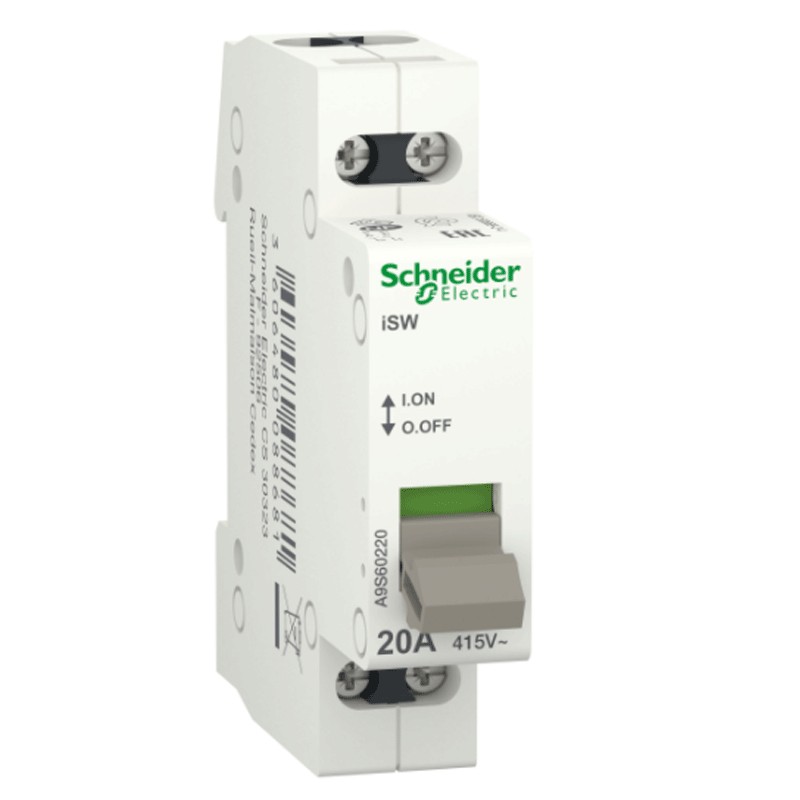

Schneider disconnector 2P 20A 1 module A9S60220

Schneider
Schneider
SNR A9S60220 3606480088681

Schneider switch-disconnector, with the following characteristics:

  • Rated operating voltage 415 Vac
  • Rated frequency 50/60 Hz
  • Rated insulation voltage 500 Vac
  • Rated operational current 20A
  • 2 poles
  • 1 module
  • Degree of protection of the enclosure IP4
  • Mounting method fixed
  • Support for DIN rail mounting

Request info about this product

Schneider disconnector 2P 20A 1 module A9S60220

€19.24 Tax included
€19.24

Schneider disconnector 2P 20A 1 module A9S60220

€19.24
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 80
logo priority: 2
Altre disponibilità dal produttore
qty

Schneider disconnector 2P 20A 1 module A9S60220

€19.24

Buy it within and receive it from Wednesday, 17 December
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Thedisconnector, otherwise called voltage isolator, has the same features of a switch, but on a larger scale: it is, in fact, responsible for closing the flow of energy to the power plants. This serves mainly to ensure the safety of the plant and primarily of the people who work inside since one of its peculiarities is to separate the flow of energy from the working environments. Another peculiarity of this instrument is the ability to detect defects in the electrical flow and isolate them. When the defect is corrected, the disconnector will ensure that the current flows normally again.

Characteristics:

  • Schneider series
  • Rated operating voltage 415 Vac
  • Rated frequency 50/60 Hz
  • Rated insulation voltage 500 Vac
  • Rated operational current 20A
  • Rated impulse withstand voltage 4 kV
  • Type of lever control
  • Local ON/OFF indication
  • 2 poles
  • 1 module
  • Degree of protection of the housing IP4
  • Mounting method fixed
  • Support for DIN rail mounting
  • Height 77 mm
  • Width 18 mm
  • Depth 70 mm
  • Colour white
  • Mechanical life 300000 cycles
  • Electrical life 30000 cycles
  • Wire stripping length 9 mm
  • Tightening torque 1,2 Nm
  • Pollution degree 2
  • Tropicalisation 2
  • Relative humidity 95 % at 55 °C
  • Operating ambient temperature -20...50 °C
  • Storage temperature -40...70 °C

There are no reviews

Data sheet

Voltage:
415VAC
Modules:
1
Poles:
2P
Amps:
20A
Circuit Protections:
Disconnectors
Operating voltage:
AC
