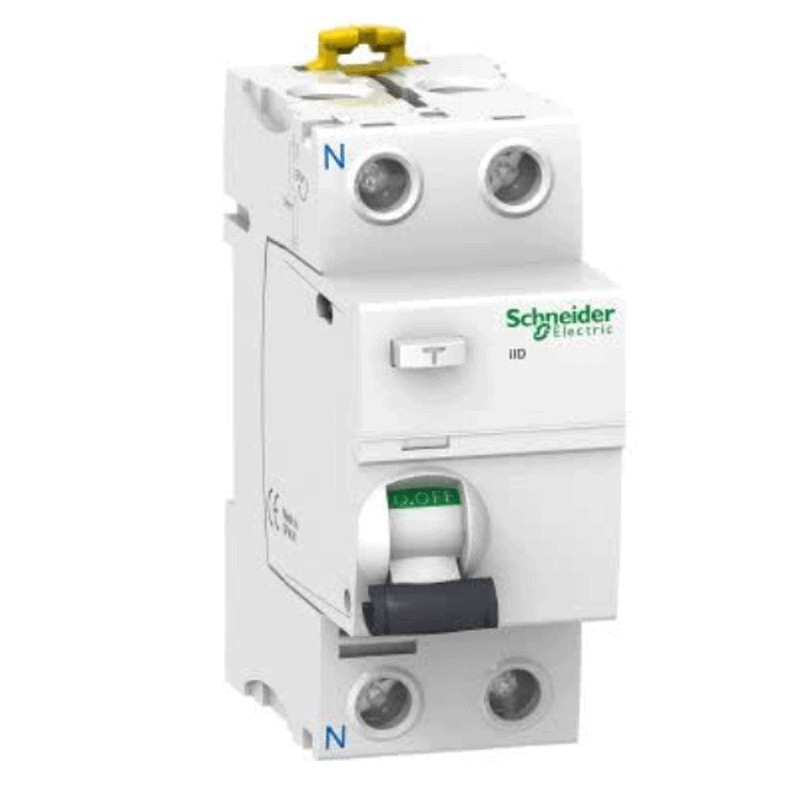

Schneider pure residual current device 2P 25A 300MA AC 2 modules A9R44225
SNR A9R44225
3606480089015
Schneider pure differential switch, 2 modules, DIN connection (universal for any switchboard on the market), 2P poles, 25 amperes, differential current Idn 300mA, voltage 230/240V Vac, AC differential type.
Schneider pure residual current device 2P 25A 300MA AC 2 modules A9R44225
€100.66
Tax included
€100.66
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 7
The pure earth leakage circuit breaker is used to protect people and not the equipment. The moment a person goes to touch it, it creates a circuit with the earth. The current instead of remaining in the domestic circuit, uses the human body to go to earth.
The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, at the moment in which the current is accidentally lost.
A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.
The AC residualcurrent circuit breaker operates only with alternating current. Almost all civil installations fall into this type.
Characteristics:
- Schneider series
- Voltage 230/240 Vac
- Current In 25A
- Differential current Idn 30mA
- AC differential type
- 2 modules
- 2P
- Degree of protection IP20
- Mains frequency 50/60 Hz
- Neutral position left
- Control type Lever
- Mounting bracket
- Mounting bracket DIN rail
- Height 91 mm
- Width 36 mm
- Depth 73.5 mm
- Product weight 210 gr
- Colour white
There are no reviews
Data sheet
- Voltage:
- 230VAC
- Modules:
- 2
- Poles:
- 2P
- RCD Type:
- AC
- Differential current :
- 0.3A
- Amps:
- 25A
- Circuit Protections:
- Residual current devices
