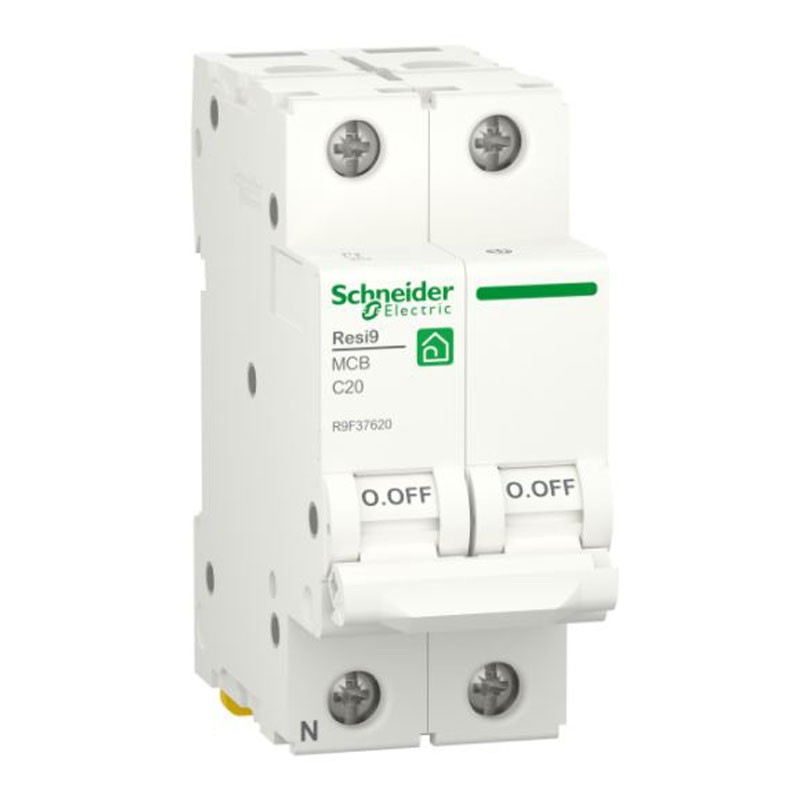

Schneider thermomagnetic circuit breaker 20A 1P+N 4,5KA C 2 modules R9F37620
SNR R9F37620
3606481856265
Schneider Resi9 20A thermal-magnetic circuit breaker, poles 1P+N, breaking capacity 4.5KA C 2 modules, rated insulation voltage 440V, DIN mounting (universal for any switchboard on the market), trip curve C.
Schneider thermomagnetic circuit breaker 20A 1P+N 4,5KA C 2 modules R9F37620
€7.89
Tax included
€7.89
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 103
: 48
Pay in installments with Klarna
C curve, trip threshold from 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. And widely used in domestic installations, residential and functional buildings.
A circuit breaker is a safety device capable of automatically (i.e. without external intervention) interrupting the flow of electrical current in an electrical circuit in the event of an overcurrent.
- Schneider Series
- Thermal magnetic circuit breaker
- Rated insulation voltage 440 Vac
- Current In 20A
- Breaking capacity Icn 4,5kA
- DIN rail mounting bracket
- Nominal operating voltage Ue 230 V AC
- Mains frequency 50/60 Hz
- Switching curve C
- 2 modules
- 1P+N poles
- Height 81 mm
- Recessed depth 44 mm
- Width 36 mm
- Product weight 240 g
- Clamp connection
- Tightening torque 2 Nm upper or lower part
- Degree of protection IP20.
Data sheet
- Voltage: 400VAC
- Modules: 2
- Poles: 1P+N
- Curve: C
- Power: 4.5KA
- Amps: 20A
- Circuit Protections: Circuit breakers
