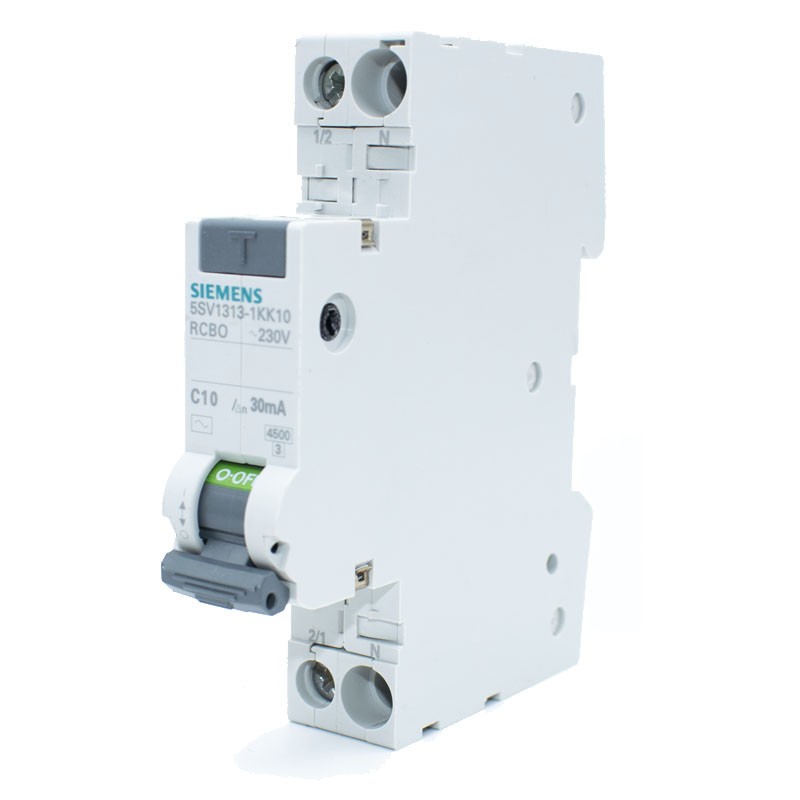

Siemens Residual Current Operated Circuit Breaker 10A 1P+N 30MA AC 4.5KA 5SV13131KK10
SIE 5SV13131KK10
4001869557212
Siemens Residual Current Operated Circuit Breaker, 1 module, DIN connection (universal for any switchboard on the market), 1P+N, 10 amperes, breaking capacity 4.5kA, differential rated current 30 mA, rated voltage 230 Vac, AC type, trip curve C.
With the kit you save compared to individually purchased items
Siemens Residual Current Operated Circuit Breaker 10A 1P+N 30MA AC 4.5KA 5SV13131KK10
€22.77
Tax included
€22.77
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4304
: 464
Pay in installments with Klarna
Further Siemens RCBO combinations:
The circuit breaker is located next to the circuit breaker and combines magnetic and thermal protection and, if necessary, interrupts the electrical current.
The thermal-magnetic circuit breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.
The thermal-magnetic differential switch in the electrical system integrates three different protections:
- the magnetic one for short circuits that can put an entire building at risk of fire;
- the thermal one for overloads in the supply of electrical energy (e.g. more than one household appliance in operation);
- the differential which protects the subject from a current leakage.
The C curve, intervention threshold from 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic installations.
The AC type differential switch the tripping is ensured for suddenly or slowly increasing applied sinusoidal alternating currents (CEI EN 61008-1).
Features:
- Siemens series
- Rated voltage 240 Vac
- Current In 10A
- Interrupting capacity Icn 4.5kA
- Fault current per trip / nominal value 30 mA
- Tripping curve C
- 1 module
- 1P+N
- AC differential type
- Operating frequency 50 Hz
- Mounting depth 69.5 mm
- Tightening torque / with screw terminals min 1.2 Nm - max 2 Nm
- Height 90 mm
- Width 18 mm
- Depth 77 mm
- Recessed depth 70 mm
- Any mounting position
- Net weight 117 g
- Degree of protection IP20, for installation in a distribution board, with connected conductors
Todo correcto. Envío muy rápido. Buena relación precio-calidad
Il punto di forza è la larghezza,di un solo modulo
Veloci e precisi. Prodotti subito disponibi ed evasione in tempi record dell'ordine
Adequate to our needs, a perfect alternative to our previous standard.
Tutto secondo le mie aspettative. Grazie
Davvero top prodotti fantastici e prezzi competitivi
i prodotti che cercavo li ho trovati e hanno risolto il problema di spazio nel mio centralino
conforme a la commande, merci
je l'utiliserai plus tard
ottimo prodotto già usato in precedenza senza problemi
Ottimo per quando si ha poco spazio nel quadro
Data sheet
- Modules: 1
- Poles: 1P+N
- Power: 4.5KA
- RCD Type: AC
- Differential current : 0.03A
- Amps: 10A
- Circuit Protections: RCBO
