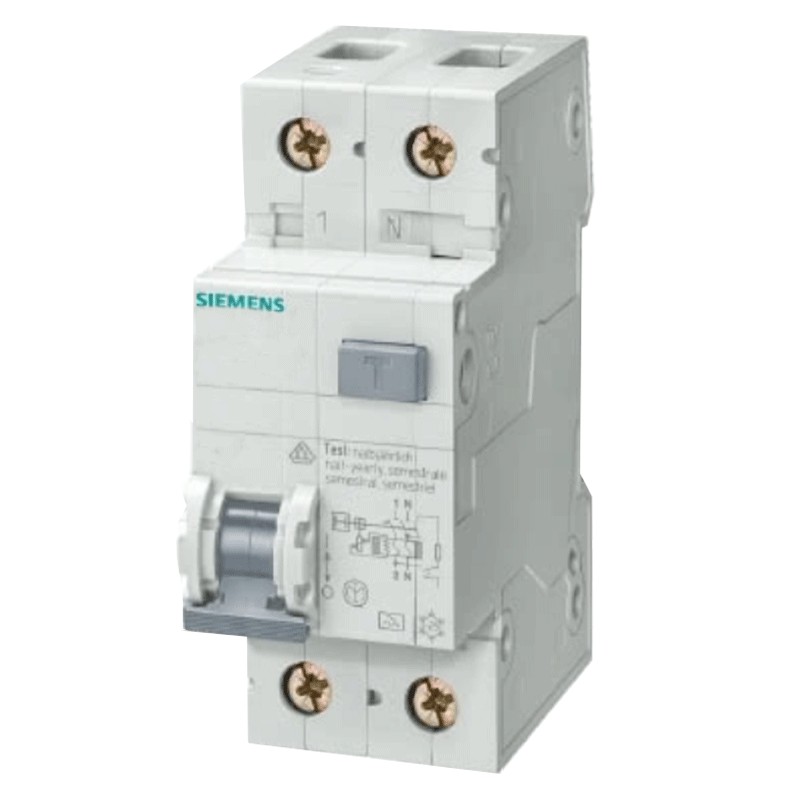

Siemens 1P+N 16A 30mA differential circuit breaker type A 4,5kA 2 modules 5SU13537KK16
SIE 5SU13537KK16
4001869306452
Siemens differential thermomagnetic circuit breaker, 2 modules, DIN mounting (universal for any switchboard on the market), poles 1P+N, 16 amperes, breaking capacity 4.5kA, voltage 230/240 Vac, differential current Idn 30mA, type A, trip curve C.
Siemens 1P+N 16A 30mA differential circuit breaker type A 4,5kA 2 modules 5SU13537KK16
€55.79
Tax included
€55.79
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 495
: 70
The thermomagnetic circuit breaker is located next to the circuit breaker and integrates a magnetic protection with a thermal one and interrupts the electric current in case of need.
The thermal magnetic circuit breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.
The thermal-magnetic differential switch present in the electrical system integrates three different protections
- the magnetic one for short circuits that can put an entire building at risk of fire;
- the thermal one for overloads in the supply of electrical energy (e.g. more than one household appliance in operation);
- the differential which protects the subject from a current leakage.
The type A residual current circuit breaker tripping is ensured for alternating sinusoidal differential currents and unidirectional pulsating differential currents applied suddenly or slowly increasing (CEI EN 61008-1).
Features:
- Siemens series
- Voltage 230/240 Vac
- Current In 16A
- Interrupting capacity Icn 4,5kA
- Intervention curve C
- Differential current Idn 30mA
- Type of differential A
- Frequency of use 50 Hz
- 2 modules
- 1P+N poles
- Height 90 mm
- Width 36 mm
- Depth 77 mm
- Recessed depth 70 mm
- Net weight 268 g
- Tightening torque / with screw terminals min. 2.5 Nm, max. 3 Nm
- Degree of protection IP20, for installation in distribution board, with connected wires
Prodotto conforme alla descrizione. Originale!
Prodotto conforme alla descrizione. Ottimo venditore, spedizione veloce
Data sheet
- Modules:
- 2
- Poles:
- 1P+N
- Curve:
- C
- Power:
- 4.5KA
- RCD Type:
- A
- Differential current :
- 0.03A
- Amps:
- 16A
- Circuit Protections:
- RCBO
