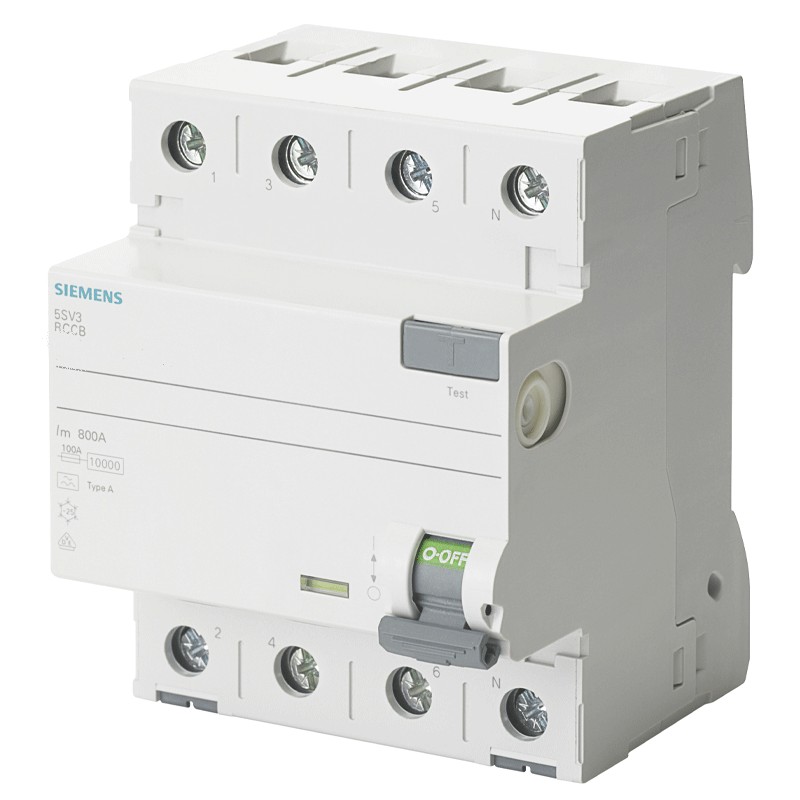

Siemens 4-pole differential circuit breaker 25A 500V A 5SV36526
SIE 5SV36526
4001869430492
Differential switch Siemens, 4 modules, DIN connection (universal for any switchboard on the market), poles 4P, 25 amperes, differential current Idn 300mA, voltage 500 Vac, differential type A.
Siemens 4-pole differential circuit breaker 25A 500V A 5SV36526
€117.61
Tax included
€117.61
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
The pure earth leakage circuit breaker is used to protect people and not the equipment. The moment a person goes to touch it, it creates a circuit with the earth. The current instead of remaining in the domestic circuit, uses the human body to go to earth.
The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, when the current is accidentally lost.
A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.
The residualcurrent circuit breaker type A, guarantees operation for AC and unidirectional pulsating type currents.
Features:
- Siemens series
- Voltage 500 Vac
- Current In 25A
- Differential current Idn 300mA
- Differential type A
- 4 modules
- 4P
- Degree of protection IP20, for installation in distribution board, with conductors connected
- Frequency of use 50 Hz
- Height 90 mm
- Width 72 mm
- Depth 70 mm
- Recessed depth 70 mm
- Type of mounting DIN rail (REG)
- Any mounting position
- Tightening torque/with screw terminals min 2.5 Nm - max 3 Nm
- Net weight 350 g
There are no reviews
Data sheet
- Modules:
- 4
- Poles:
- 4P
- RCD Type:
- A
- Differential current :
- 0.3A
- Amps:
- 25A
- Circuit Protections:
- Residual current devices
