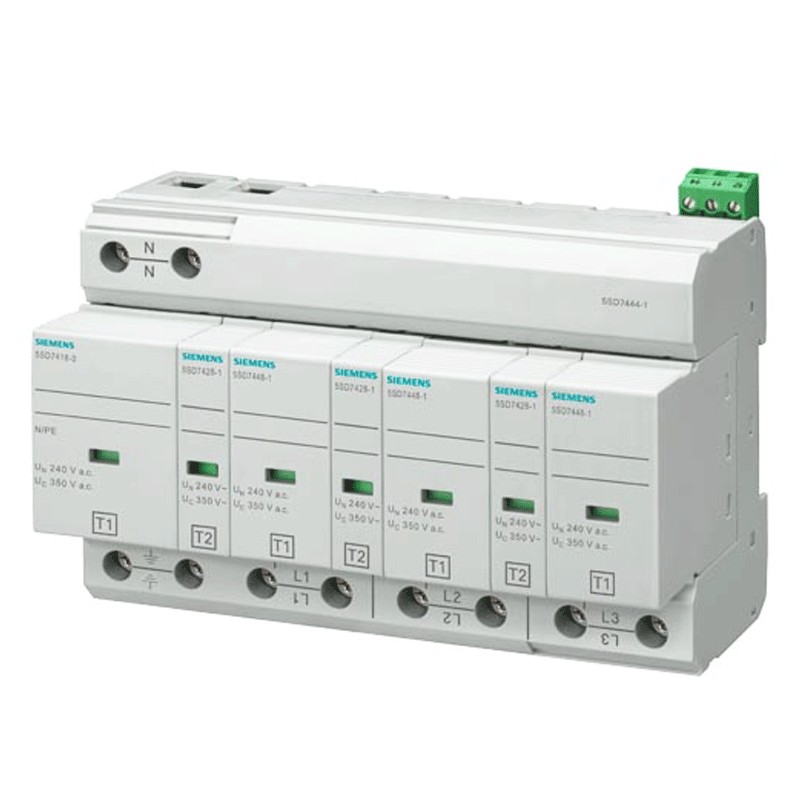

Siemens combined overvoltage arrester 100KA CLI+II 4P 5SD74441
SIE 5SD74441
4001869340555
Siemens combined surge arrester, requirement class B+C, with the following features:
- Distribution system type TT, TN-S
- Operating voltage AC 240 / 415 Vac
- Operating voltage 230 Vac
- Frequency of use 50/60 Hz
- Permanent operating voltage (max. 350 V - between N and PE 350 V - between L and (PE)N 350 V)
- Load current 125 A
- Discharge impulse current 100kA
- With remote display
4 poles - 4 modules
- Type 1+2
Siemens combined overvoltage arrester 100KA CLI+II 4P 5SD74441
€939.97
Tax included
€939.97
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
The surge arrester is an instrument that can be mounted inside the electrical panel, therefore upstream of the home system. Its use allows you to put in protection the electrical system on which it is installed.
The surge arrester will protect the entire system from surges, surges and peaks of electricity that may come from the operator of the power line, or from atmospheric phenomena such as lightning. These power anomalies can cause serious damage to the devices connected to the outlets.
A power surge can cause the hardware of a PC to break, or short circuit the boards of smartphones, tablets and home appliances. In the event that the flow of energy suddenly increases dramatically, human life can even be at risk due to electrocution.
To prevent this from happening, it is therefore advisable to fit a surge protector.
Surge arresters are divided into three classes:
In class 1 we find devices to be used in areas where adverse weather phenomena such as thunderstorms and lightning usually insist (for example in the mountains). In this case the arrester is mounted in the electrical panel and can withstand several surges without being damaged. The discharge takes place in 350 microseconds, so that the excess energy does not reach the system.
In class 2 there are surge arresters that protect the system from surges and spikes that may be caused by maintenance work on the line by the operator.
In class 3, on the other hand, we find those devices that offer even greater protection: in this case, the surge arrester is installed directly at the electrical outlets present in the home.
Features:
- Siemens series
- Type of distribution system TT, TN-S
- Operating voltage AC 240/415 Vac
- Operating voltage 230 Vac
- Frequency of use 50/60 Hz
- Permanent operating voltage (max. 350 V - between N and PE 350 V - between L and (PE)N 350 V)
- Load current 125 A
- Discharge impulse current 100kA
- With remote display
4 poles - 4 modules
- Type 1+2
- Type of mounting DIN rail NS 35
- Housing material PBT
- Overvoltage category III
- Pollution degree 2
- Protection class with connection of all terminals IP20
- Installation altitude for altitude above sea level / max. 2,000 m
- Width 142.8 mm
- Height 95 mm
- Depth 71.5 mm
- Net weight 1,236 g
- Electrical connection design screw terminal
- Stripping length 18 mm
- Stripping length of cable for remote signal contacts 7 mm
- Tightening torque 4.3 ... 4,7
- Tightening torque for remote signalling contacts 0.25 Nm
- Installation altitude for altitude above sea level / max. 2,000 m
- Shock acceleration 25 gn
- Vibration acceleration at 5 Hz ... 500 Hz / limited to 2.5 h / per axis
- Ambient temperature during operation -40 °C ... 80 °C
- Ambient temperature during storage and transport 40 °C ... 80 °C
There are no reviews
Data sheet
- Modules:
- 4
- Poles:
- 4P
- Maximum current:
- 50KA
- Version:
- 2
- Model:
- AC
- Circuit Protections:
- Surge protectors
