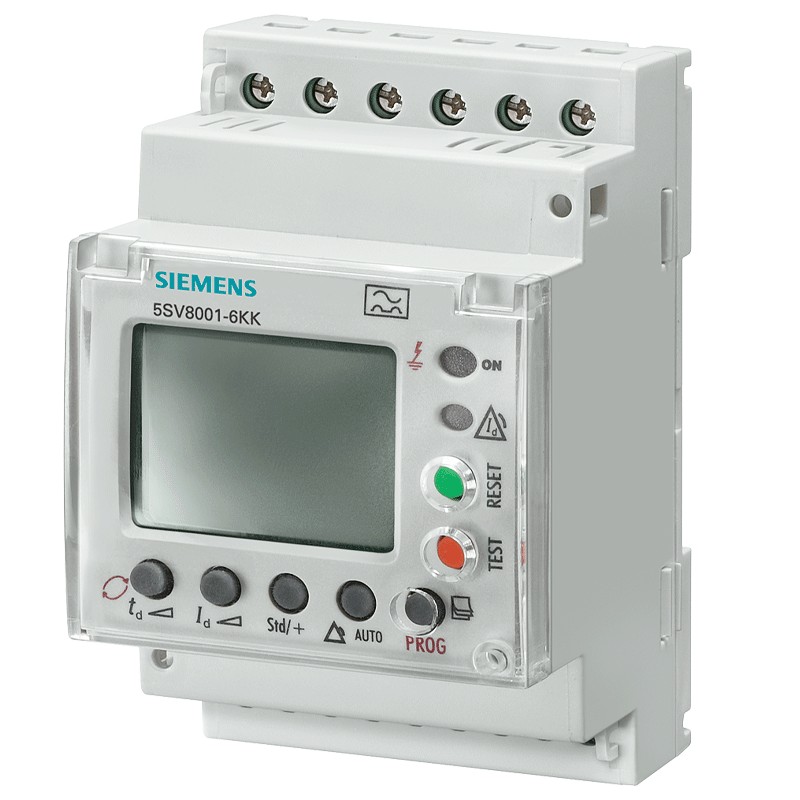

Siemens digital current monitoring relay 3 modules 5SV80016KK

Brand: Siemens

Cod: SIE 5SV80016KK EAN: 4001869397627

Siemens differential current control relays with the following features:

Digital Type A
Frequency of the measuring circuit nominal value min 50 max 60 Hz
Protection class with connection of all terminals IP20
Type of operating voltage for the AC drive
Operating voltage min nominal value 184 Vac, max nominal value 276 Vac, with AC nominal value 230 Vac
Max power dissipation 6 VA
Number of CO contacts for auxiliary contacts 2
Cable stripping length 10 mm
Tightening torque with screw terminals min 0.5 Nm , max 0.6 Nm
Ambient temperature during operation min admissible -10 °C, max admissible 50 °C

€224.70 Tax included

€224.70

€224.70
Tax included

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 155

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Are you a professional ?

Request access to

Features:

Siemens Series
Digital Type A
Switching delay settable initial value 0.02 s - final value 10 s
Frequency of the measuring circuit nominal value min 50 Hz - max 60 Hz
Protection class with connection of all terminals IP20
Overvoltage category III
Pollution degree 2
Voltage type of the operating voltage for the AC drive
Operating voltage min nominal value 184 Vac, max nominal value 276 Vac, with AC nominal value 230 Vac
Power dissipation max 6 VA
Switching value adjustable for current initial value 30 mA, final value 30A
Frequency of use nominal value min 50 Hz, max 60 Hz
Number of CO contacts for auxiliary contacts 2
Switching voltage of the relay contacts nominal value 230 Vac
Switching current of relay contacts nominal value 6A
Cable length to current summing transformer 10 mm
Cable stripping length 10 mm
Conductor cross section connectable with flexible conductor min 0.13 mm², max 2.1 mm²
Conductor cross-section connectable to solid conductor min 0.13 mm², max 2.1 mm² Conductor cross-section connectable to solid conductor min 0.13 mm², max 2.1 mm² Clamping torque with terminals
Tightening torque with screw terminals min 0.5 Nm, max 0.6 Nm
Height 85 mm
Width 54 mm
Depth 68 mm
Net weight 290 g
Ambient temperature during operation min. permissible -10 °C, max. permissible 50 °C
