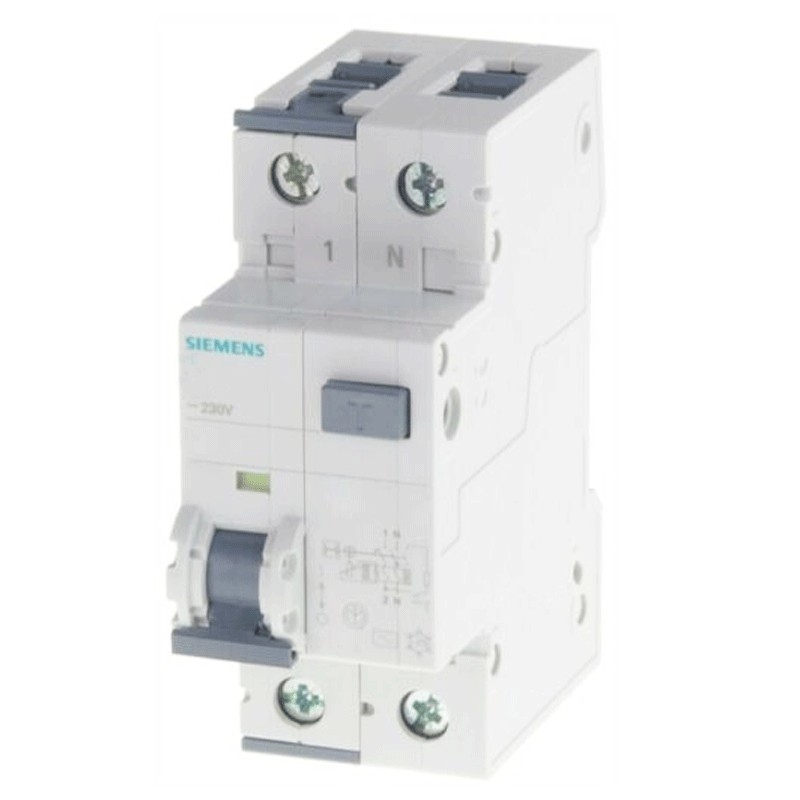

Siemens Residual Current Operated Circuit Breaker 20A 1P+N 30MA 4,5KA 5SU13531KK20
SIE 5SU13531KK20
4001869306377
Siemens Residual Current Operated Circuit Breaker, 2 modules, DIN connection (universal for any switchboard on the market), poles 1P+N, 20 amperes, breaking capacity 4.5kA, voltage 230/240 Vac, differential current Idn 30mA, type AC, trip curve C.
Siemens Residual Current Operated Circuit Breaker 20A 1P+N 30MA 4,5KA 5SU13531KK20
€24.55
Tax included
€24.55
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1556
: 310
Pay in installments with Klarna
Further Siemens RCBO combinations:
The circuit breaker is located next to the circuit breaker and integrates a magnetic protection with a thermal one and interrupts the electric current in case of need.
The Residual Current Operated Circuit Breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.
The Residual Current Operated Circuit Breaker present in the electrical system integrates three different protections
- the magnetic one for short circuits that can put an entire building at risk of fire;
- the thermal one for overloads in the supply of electrical energy (for example, more than one household appliance in operation);
- the differential one, typical of the lifesaver, which protects the subject from a current leakage.
The AC type differential switch intervention is ensured for sinusoidal alternating currents applied suddenly or slowly increasing (CEI EN 61008-1).
Features:
- Bticino series
- Voltage 230/240 Vac
- Current In 20A
- Interrupting capacity Icn 4,5kA
- Intervention curve C
- Differential current Idn 30mA
- AC differential type
- Frequency of use 50 Hz
- 2 modules
- 1P+N poles
- Height 90 mm
- Width 36 mm
- Depth 77 mm
- Recessed depth 70 mm
- Any mounting position
- Net weight 271 g
- tightening torque / with screw terminals min 2.5 Nm, max 3 Nm
- Degree of protection IP20, for installation in a distribution board, with connected conductors
PRODOTTOPRODOTTO DI OTTIMA QUALITA' BEN CONFEZIONATOED INTEGRO DI QUALITA'
siemens è una garanzia per la sicurezza della casa
NICKEL.............................................
Ok, articoli professionali da impiantistica
MI SONO TROVATO BENE MERCE CONFORME ALL'ORDINE TEMPI DI CONSEGNA OK, VENDITORE AFFIDABILE.
Data sheet
- Modules: 2
- Poles: 1P+N
- Curve: C
- Power: 4.5KA
- RCD Type: AC
- Differential current : 0.03A
- Amps: 20A
- Circuit Protections: RCBO
