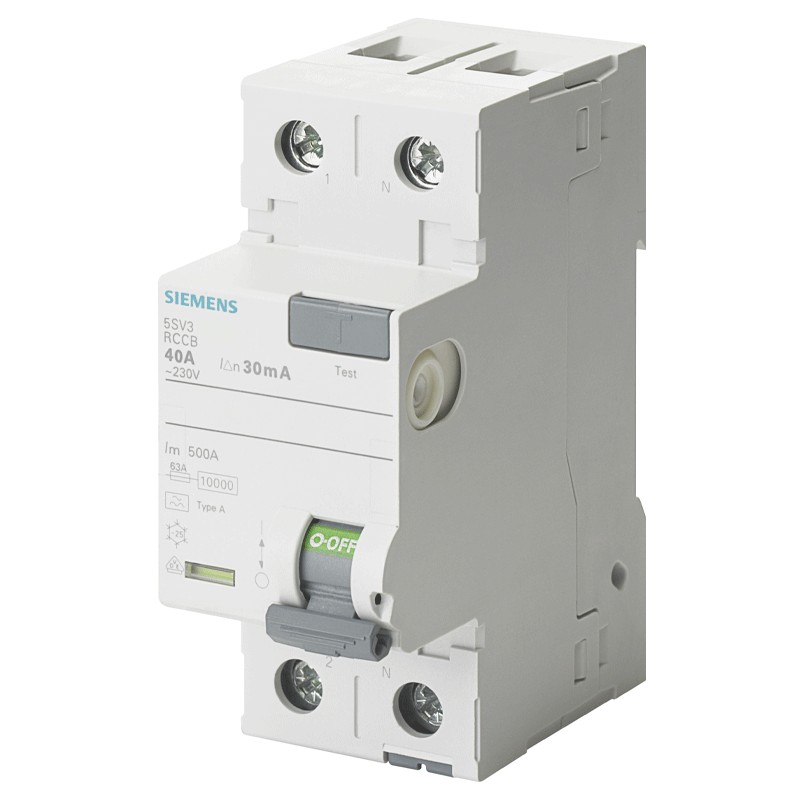

Siemens pure differential switch 2 poles 40A 30mA type A 2 modules 5SV33146
SIE 5SV33146
4001869429649
Pure differential switch (circuit breaker) Siemens, 2 modules, DIN connection (universal for any switchboard on the market), 2P poles, 40 amperes, differential current Idn 30mA, voltage 230 Vac, differential type A.
Siemens pure differential switch 2 poles 40A 30mA type A 2 modules 5SV33146
€88.17
Tax included
€88.17
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 105
: 15
The pure earth leakage circuit breaker is used to protect people and not the equipment. The moment a person goes to touch it, it creates a circuit with the earth. The current instead of remaining in the domestic circuit, uses the human body to go to earth.
The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, when the current is accidentally lost.
A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.
The residualcurrent circuit breaker type A, guarantees operation for AC and unidirectional pulsating type currents.
Features:
- Siemens series
- Voltage 230 Vac
- Current In 40A
- Differential current Idn 30mA
- Differential type A
- 2 modules
- 2P
- Degree of protection IP20, for installation in distribution board, with conductors connected
- Frequency of use 50 Hz
- Height 90 mm
- Width 36 mm
- Depth 70 mm
- Recessed depth 70 mm
- Type of mounting DIN rail (REG)
- Any mounting position
- Tightening torque/with screw terminals min 2.5 Nm - max 3 Nm
- Net weight 203 g
Prodotto ottimo e servizio veloce e preciso. Soddisfattissimo.
Ottimo prodotto a prezzo molto conveniente.
Prezzo molto competitivo
Data sheet
- Voltage:
- 230VAC
- Modules:
- 2
- Poles:
- 2P
- RCD Type:
- A
- Differential current :
- 0.03A
- Amps:
- 40A
- Circuit Protections:
- Residual current devices
