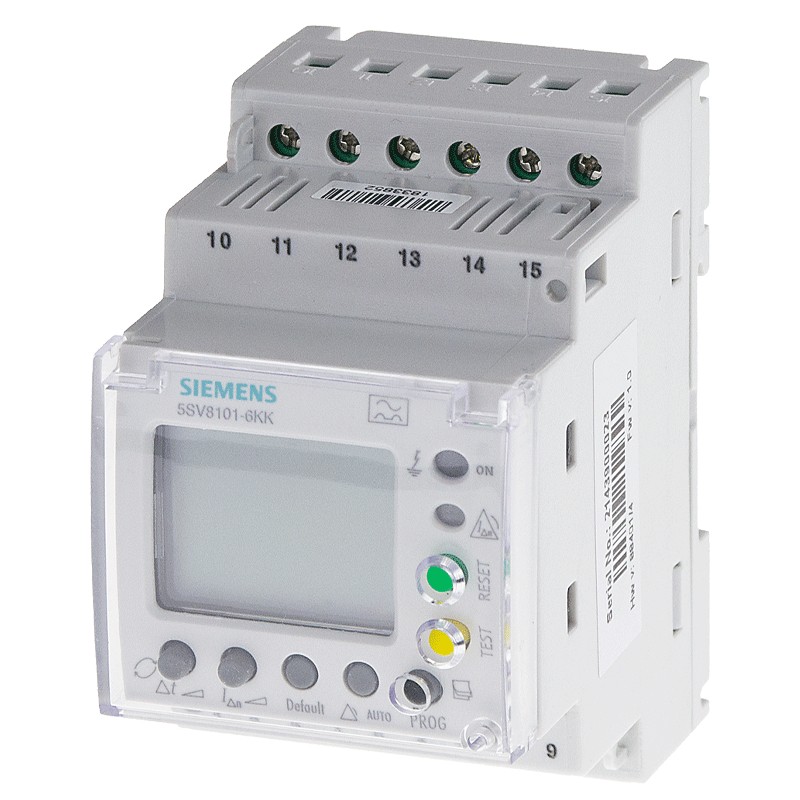

Siemens Residual Current Protection Relay Modular LCD 5SV81016KK
SIE 5SV81016KK
4001869434612
Modular residual current circuit breaker, with the following characteristics:
- Modular residual current
- Type A
- IP degree of protection with connection of all terminals IP20
- Overvoltage category III
- Pollution degree 2
- Type of operating voltage for AC drive
- Operating voltage min nominal value 184 V , max nominal value 276 V with AC, nominal value 230 V
- Power dissipation max 6 VA
- Frequency of operation min. 50 Hz, max. 60 Hz nominal value
- Number of CO contacts / for auxiliary contacts 2
Siemens Residual Current Protection Relay Modular LCD 5SV81016KK
€223.52
Tax included
€223.52
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 8
: 3
Pay in installments with Klarna
Features:
- Siemens Series
- Modular Residual Current
- Type A
- IP degree of protection with connection of all terminals IP20
- Overvoltage category III
- Pollution degree 2
- Type of operating voltage for AC drive
- Operating voltage min nominal value 184 V , max nominal value 276 V with AC, nominal value 230 V
- Power dissipation max 6 VA
- Frequency of operation min. 50 Hz, max. 60 Hz nominal value
- Number of CO contacts / for auxiliary contacts 2
- Cable length to current summing transformer 10 m
- Stripping length 10 mm
- Tightening torque with screw terminals min 0.5 Nm , max 0.6 Nm
- Electrical connection design Screw connection
- Height 85 mm
- Width 54 mm
- Depth 68 mm
- Net weight 253 g
- Ambient temperature during operation min. permissible -10 °C , max. permissible 50 °C
There are no reviews
Data sheet
- Circuit Protections: Residual current devices
