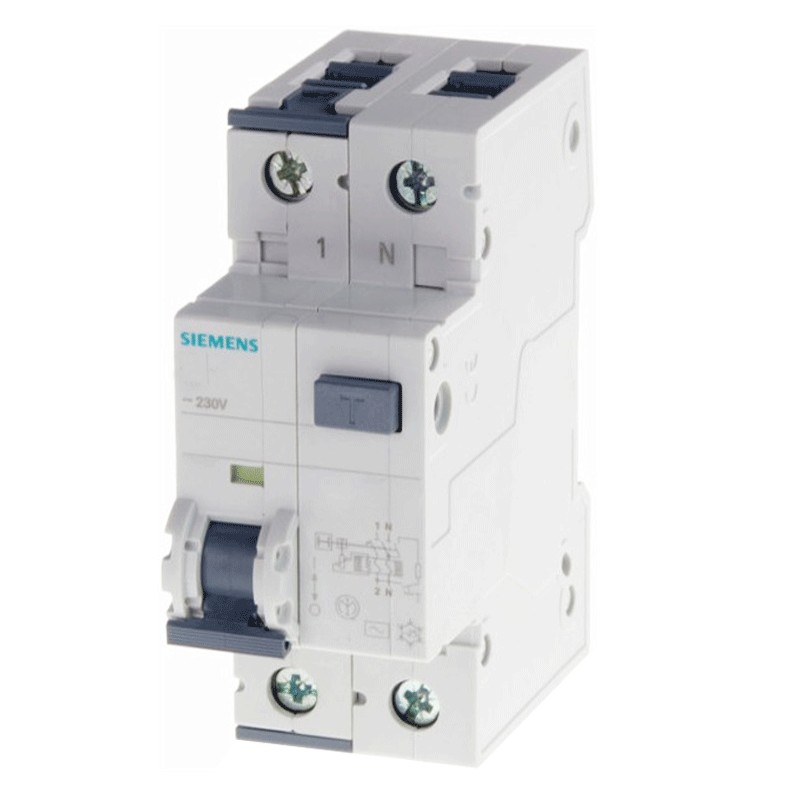

Siemens thermomagnetic differential 10A 1P+N 300MA 4,5KA 5SU16531KK10

Siemens
Siemens
SIE 5SU16531KK10 4001869306995

Siemens differential thermomagnetic circuit breaker, 2 modules, DIN connection (universal for any switchboard on the market), poles 1P+N, 10 amperes, breaking capacity 4.5kA, voltage 230/240 Vac, differential current Idn 300mA, type AC, trip curve C.


Request info about this product

Siemens thermomagnetic differential 10A 1P+N 300MA 4,5KA 5SU16531KK10

€57.92 Tax included
€57.92

Siemens thermomagnetic differential 10A 1P+N 300MA 4,5KA 5SU16531KK10

€57.92
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 66
logo priority: 16
Altre disponibilità dal produttore
qty

Siemens thermomagnetic differential 10A 1P+N 300MA 4,5KA 5SU16531KK10

€57.92

Buy it within and receive it from Thursday, 18 December
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

The thermomagnetic circuit breaker is located next to the circuit breaker and integrates a magnetic protection with a thermal one and interrupts the electric current in case of need.

The thermal magnetic circuit breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.

The thermal-magnetic differential switch present in the electrical system integrates three different protections

  • the magnetic one for short circuits that can put an entire building at risk of fire;
  • the thermal one for overloads in the supply of electrical energy (for example, more than one household appliance in operation);
  • the differential one, typical of the lifesaver, which protects the subject from a current leakage.

The AC type differential switch intervention is ensured for sinusoidal alternating currents applied suddenly or slowly increasing (CEI EN 61008-1).


Features:

  • Bticino series
  • Voltage 230/240 Vac
  • Current In 10A
  • Interrupting capacity Icn 4,5kA
  • Intervention curve C
  • Differential current Idn 300mA
  • AC differential type
  • Frequency of use 50 Hz
  • 2 modules
  • 1P+N poles
  • Height 90 mm
  • Width 36 mm
  • Depth 77 mm
  • Recessed depth 70 mm
  • Any mounting position
  • Net weight 248 g
  • Tightening torque / with screw terminals min 2.5 Nm, max 3 Nm
  • Degree of protection IP20, for installation in distribution board, with connected conductors

There are no reviews

Data sheet

Modules:
2
Poles:
1P+N
Power:
4.5KA
RCD Type:
AC
Differential current :
0.3A
Amps:
10A
Circuit Protections:
RCBO
