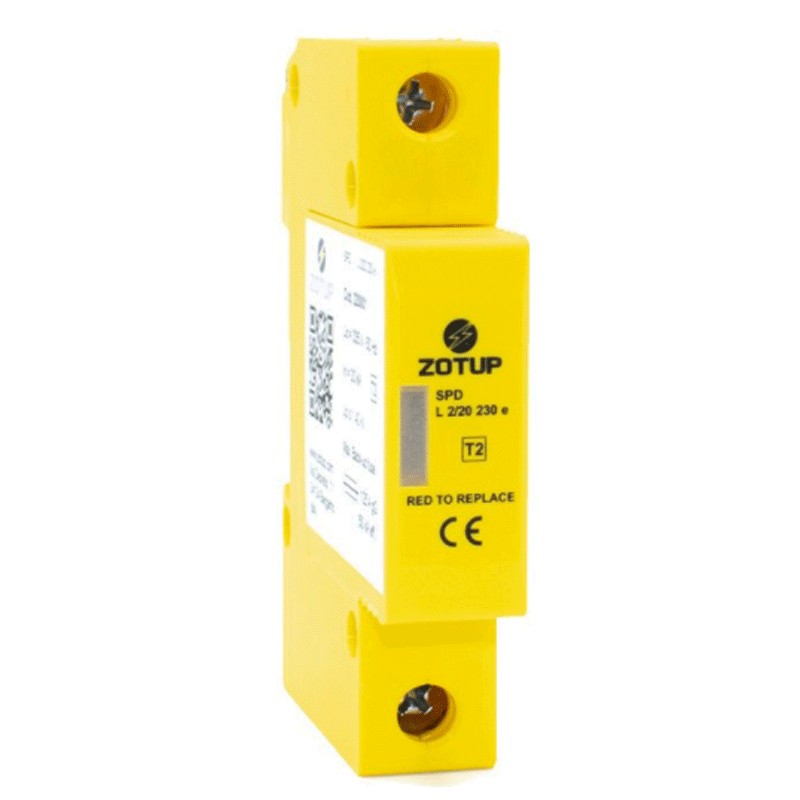

Surge arrester Zotup SPD L2/20 230E 220001
ZOT 220001
8054890322348
Zotup overvoltage protection arrester, with the following characteristics:
- Nominal voltage of the supply system 230/400 Vac
- 1 pole
- 1 module
- Maximum continuous voltage 335 Vac
- Type 2
- Nominal discharge current (8/20µs) 20 kA
- Maximum discharge current (8/20µs) 40 kA
- Indoor mounting on 35 x 7,5 mm DIN rail
- Protection degree IP20
Surge arrester Zotup SPD L2/20 230E 220001
€45.43
Tax included
€45.43
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
: 2
Pay in installments with Klarna
It is a surge arrester in withdrawable execution, limiting, provides one mode of protection. Typically installed in secondary distribution boards (SQBT) in TN or TT systems in combination with N-PE type SPDs when CT2 type connection (1+1 or 3+1) is required according to HD 60364-5-534.
The surge arrester is an instrument that can be installed inside the electrical panel, therefore upstream of the home system. Its use allows the electrical system on which it is installed to be protected.
The surge arrester will protect the entire system from surges, surges and peaks of electricity that may come from the operator of the power line, or from atmospheric phenomena such as lightning. These power anomalies can cause serious damage to the devices connected to the outlets.
A power surge can cause the hardware of a PC to break, or short circuit the boards of smartphones, tablets and home appliances. In the event that the flow of energy suddenly increases dramatically, human life can even be at risk due to electrocution.
To prevent this from happening, it is therefore advisable to fit a surge protector.
Surge arresters are divided into three classes:
In class 1 we find devices to be used in areas where adverse weather phenomena such as thunderstorms and lightning usually insist (for example in the mountains). In this case the arrester is mounted in the electrical panel and can withstand several surges without being damaged. The discharge takes place in 350 microseconds, so that the excess energy does not reach the system.
In class 2 there are surge arresters that protect the system from surges and spikes that may be caused by maintenance work on the line by the operator.
In class 3, on the other hand, we find those devices that offer even greater protection: in this case, the surge arrester is installed directly at the electrical outlets present in the home.
Features:
- Zotup series
- Nominal voltage of the power supply system 230/400 Vac
- 1 pole
- 1 module
- Maximum continuous voltage 335 Vac
- Category of use II
- Type 2
- Rated discharge current (8/20µs) 20 kA
- Maximum discharge current (8/20µs) 40 kA
- Trip time ≤ 25 nsOperating temperature -40...+70 °C
- Humidity 5 %...95
- Terminal connection cross section 4-25 mm2 flexible/ 4-25 mm2 semi-rigid
- Fork connector connection 16 mm2
- Mounting for indoor use on 35 x 7.5 mm DIN rail
- Housing material polyamide PA6
- Flammability rating V-0 according to UL 94
- Degree of protection IP20
- Weight 100 gr
- Width 17,5 mm
There are no reviews
Data sheet
- Model: AC
- Circuit Protections: Surge protectors
