Samsung EHS SPLIT Inverter Heat Pump Kit Samsung EHS SPLIT+Climatehub 6KW Air Water R32
KIT SMGSPIT06KW

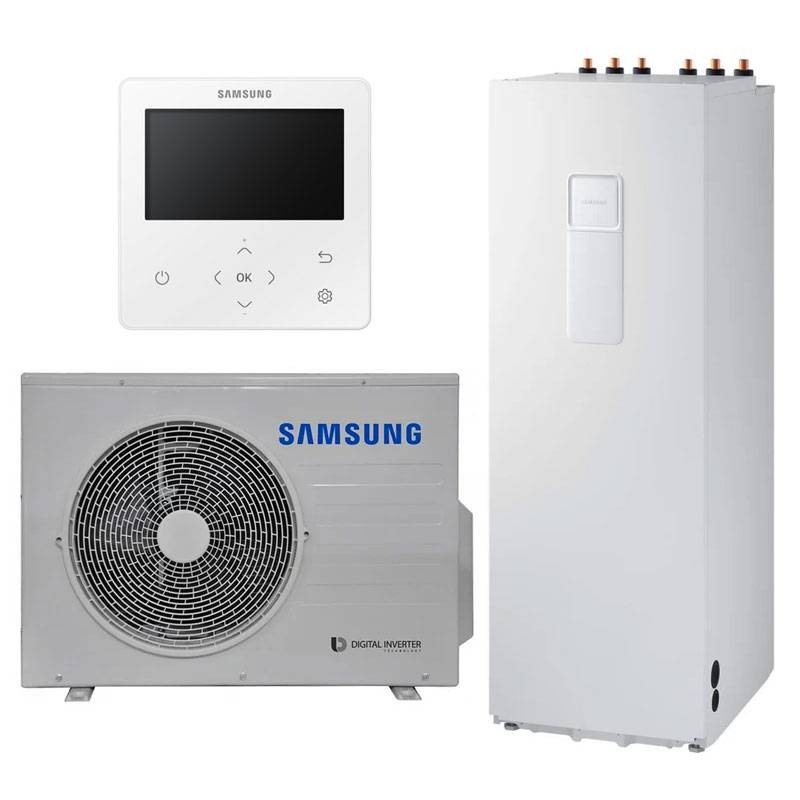

Samsung EHS ClimateHub R32 Inverter Heat Pump System built-in consisting of:
- 1 outdoor unit EHS SPLIT Inverter Heat Pump 6 kW R32 (code AE060RXEDEG/EU)
- 1 Indoor unit EHS ClimateHub SPLIT Integrated system 260 liters for hot/chilled water and DHW production (code AE260RNWSEG/EU)
- 1 EHS R32 System Controller (code MWR-WW10N)
The indoor heat pump solutions for heating, cooling and domestic hot water production.
Maximum efficiency with energy class A+++/A++.
Accessory to be purchased separately for system monitoring and management via Smartphone also remotely using the SmartThings app code MIM-H04EN.
Allows you to optimize the self-consumption of electricity produced by photovoltaic panels. The contact is already set up on the hydronic and ClimateHub modules of Samsung EHS systems.
The air conditioner will be delivered pre-charged with gas R32
Samsung EHS SPLIT Inverter Heat Pump Kit Samsung EHS SPLIT+Climatehub 6KW Air Water R32
€5,209.39
Tax included
€5,209.39
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Frequently bought together

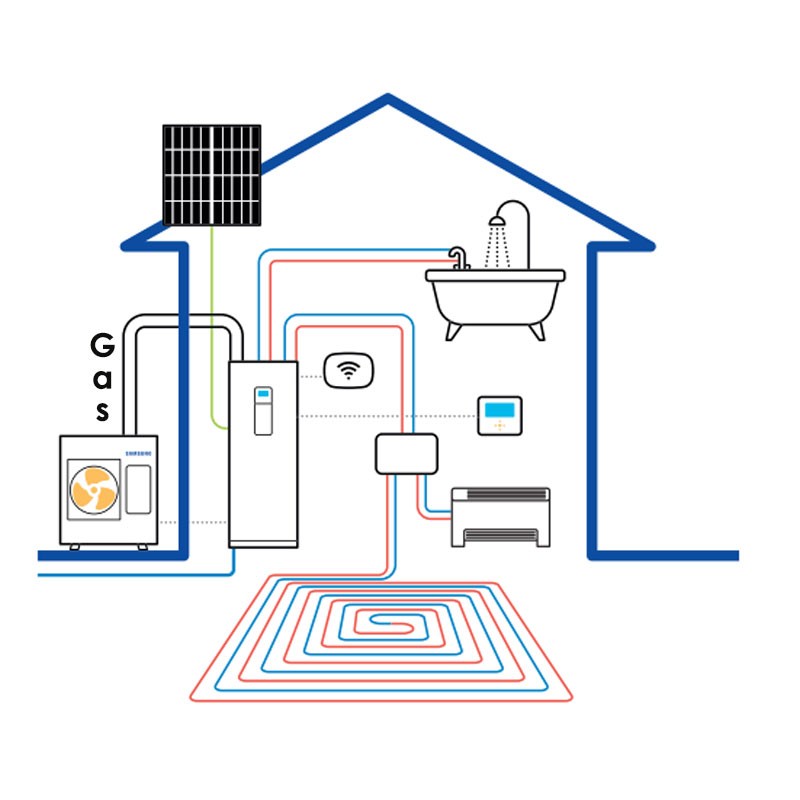

Samsung EHS ClimateHub R32 is the integrated indoor system that enables heating, cooling, and domestic hot water production in association with outdoor heat pump units of the EHS Split R32 series. The ClimateHub system includes all major plumbing components within it: this saves useful space inside the home.
Special features:
- Photovoltaic contact: Allows you to optimize the self-consumption of electricity produced by photovoltaic panels. The contact is already arranged on the hydronic and ClimateHub modules of Samsung EHS systems
- Emergency mode: In case of an interruption in the operation of the outdoor unit, ClimateHub ensures the production of domestic hot water and heating thanks to the included heating elements
- Concrete curing: This is the function that facilitates the curing of concrete by exploiting, for this purpose, the adaptation of supply water temperatures in the radiant system
- Silent function: The silent function makes it possible to reduce with 4 progressive steps the noise of the outdoor machine up to 35 dB, ideal for operation at night. Activation is programmable through the control panel
- Tax incentives and energy efficiency: The high energy efficiency of Samsung EHS R32 systems allows access to incentive systems such as Deductions 65% and Conto Termico for interventions that involve the installation of a heat pump system and increasing the energy efficiency of the building.
Kit component specifications:
Outdoor Unit Heat Pump EHS SPLIT Inverter 6 kW R32 code AE060RXEDEG/EU:
- Rated capacity Cooling/heating 6.50 / 6.00
- MCA/MFA 16.0/20.0A
- COP/EER 4.92/4.42 kW
- SCOP/SEER 4.58/4.73kW
- Liquid/gas connections 6.35 (1/4) / 15.88 (5/8)mm
- Sound pressure Heating/Cooling 47/47 dB(A)
- Sound power Heating/Cooling 60/62 dB(A)
- Dimensions (WxHxD) 880x638x310mm
- Net weight 46.50kg
- Refrigerant gas: R32
- Twin Rotary Inverter Compressor
- Single-phase power supply (220 V - 50 Hz)
- Connection to optional Wi-Fi kit or centralized control systems
- Communication with Nasa protocol
- Air-water side for floor heating/cooling or low temperature radiators
- Dual temperature management (sanitary/heating)
- Possibility of external climatic setting
- Output of maximum 90% of capacity even at outdoor temperature of -10°C
- Operation up to an outdoor temperature of -25°C
Indoor unit EHS ClimateHub SPLIT Integrated system 260 liters for hot/chilled water and DHW production code AE260RNWSEG/EU:
Advantages:

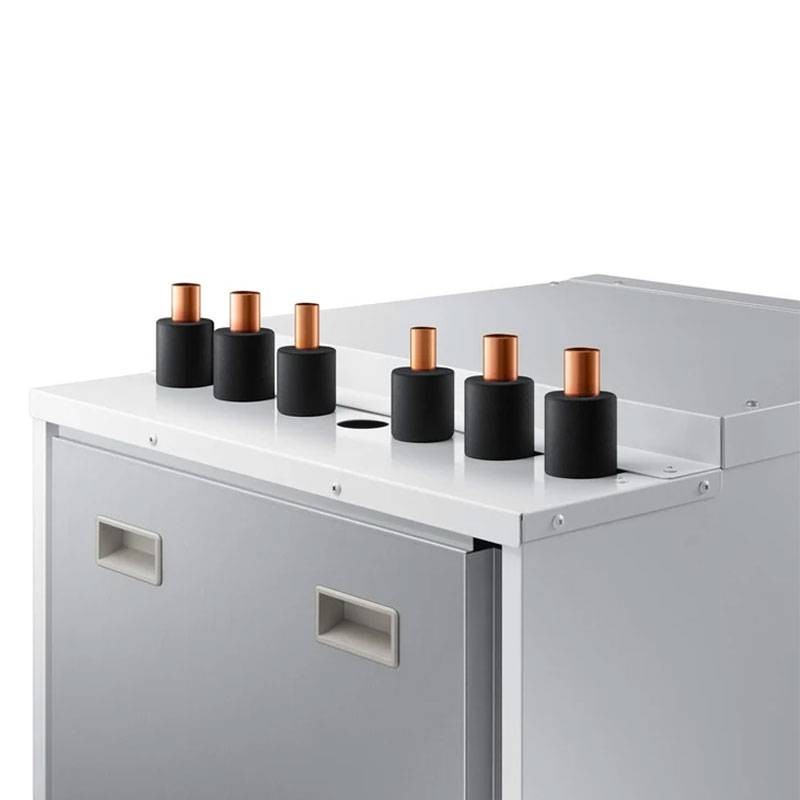

- Connections Placed at the top for simplified installation
- For 260-liter ClimateHubs, there is provision for recirculation of the sanitary circuit

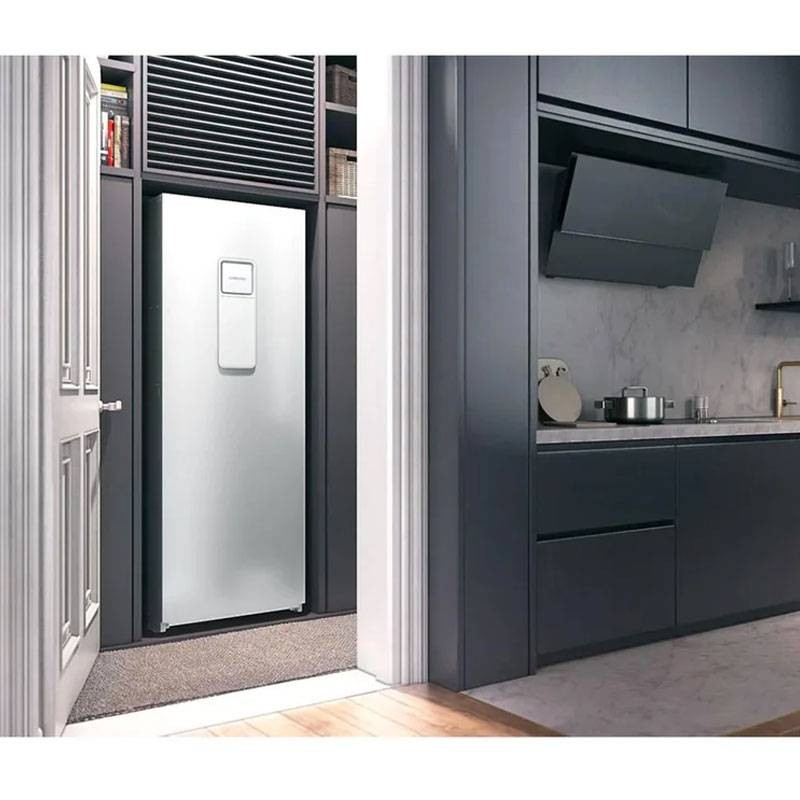

- Dimensions Fits perfectly into the service areas of the house due to its standard size and compact shape
- High effi ciency brazed plate heat exchanger
- 3 kW electrical heating element
- Polyurethane insulation
- Maximum pressure of 12 bar
- Circulation pump included with inverter PWM control, 25LPM/7mAq
- Electronic flow switch: enables, in conjunction with wired control MWR-WW10N, an estimation of consumption
- 8-liter expansion tank
- Maximum efficiency with energy class A++/A++
- Simplified installation thanks to top-mounted connections and easy maintenance from the front panel
- Intuitive consumption monitoring thanks to the special electronic flow switch
- Flow temperature reaches up to 65°C3 with guaranteed operation down to -25°C
Intuitive access and control:
- Removable panel for maintenance and management of internal components

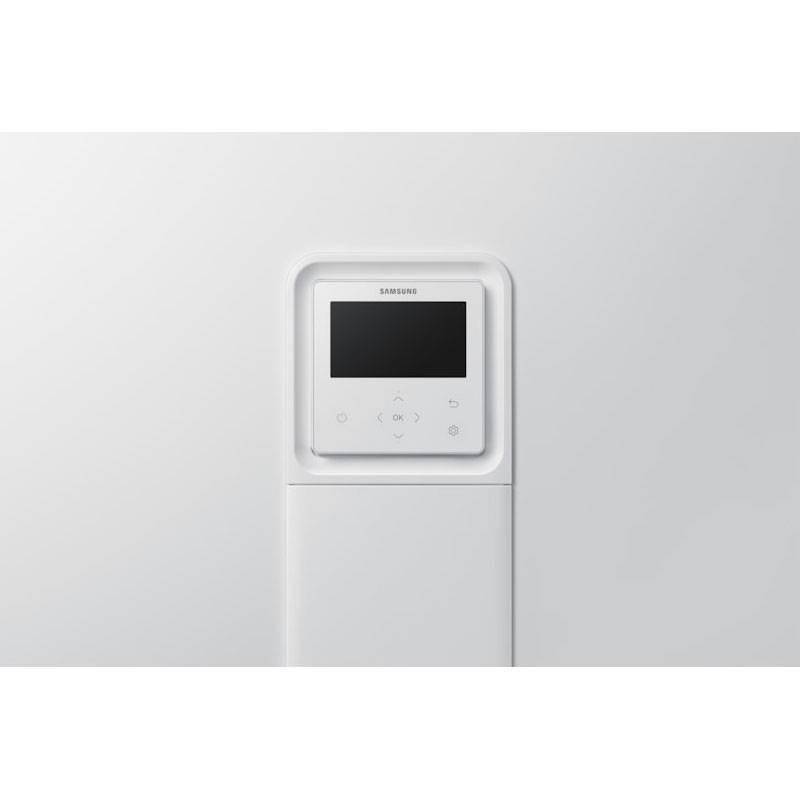

- Provision for MWR-WW10N control.
- Smart Grid. Photovoltaic Contact
- External SD to save data and settings
Features:
- Power supply F/V/Hz 1/2 / 220-240 / 50
- Volume/Isolation Liters 260 / PU Foam
- Flow Temperature Cooling / Heating. °C 5~25 / 15~65
- Efficiency Class A++ / A++
- MCA/MFA 22.7 / 28.4A
- Flow Rate / Press. Water Min-Max l/min / bar 7 - 48 / 3
- Res. Electric Hydronic / anti legionella kW 2/3
- Sound Pressure Heating / Cooling dB(A) 26/26
- Sound Power dB(A) 40
- Dimensions (WxHxD) 595x1800x700mm
- Net weight 146.0 kg
Connections:
- Refrigerant (Liq./Gas) mm (inch) 6.35 / 15.88
- Heating (Ingr./Usc.) mm (inch) 28/28
- DHW (domestic water) (Ingr/Usc/Ric) mm (inch) 22/22/22

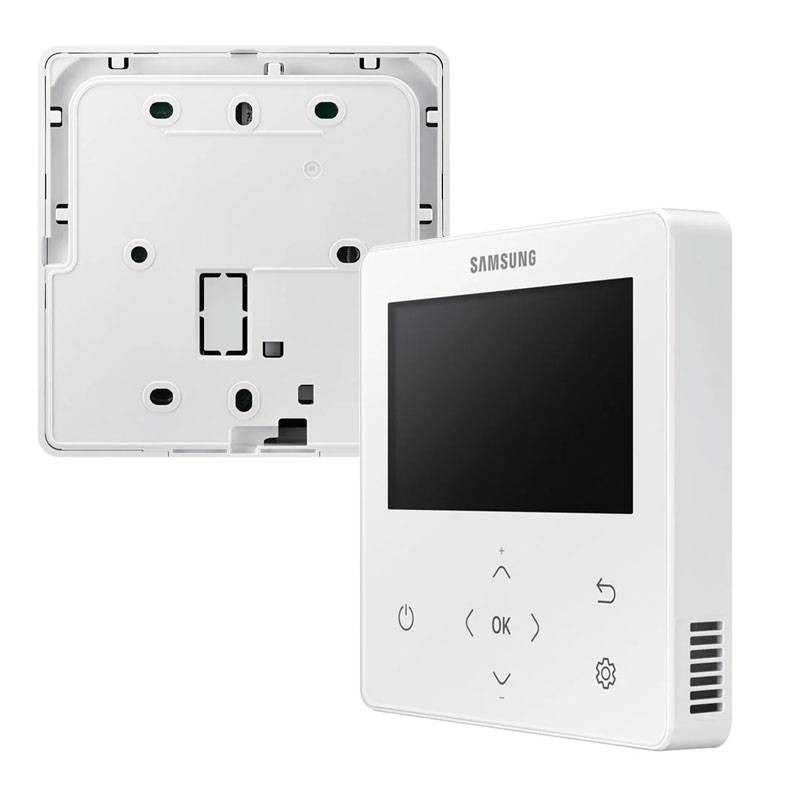

EHS R32 System regulation command code MWR - WW10N:
EHS R32 System regulation command (mandatory), allows simplified and intuitive management of all settings:
- Consumption estimation: The user can view directly on the control how much energy is consumed and produced by the system
- Dual climate curve: Once the climate curve is set, the flow temperature to the system is automatically adjusted according to the outdoor temperature, adjusting the heat supply to the building's heating needs. In this way, the best performance in terms of comfort is guaranteed while keeping the room temperature constant; in addition, heat loss and energy waste are reduced

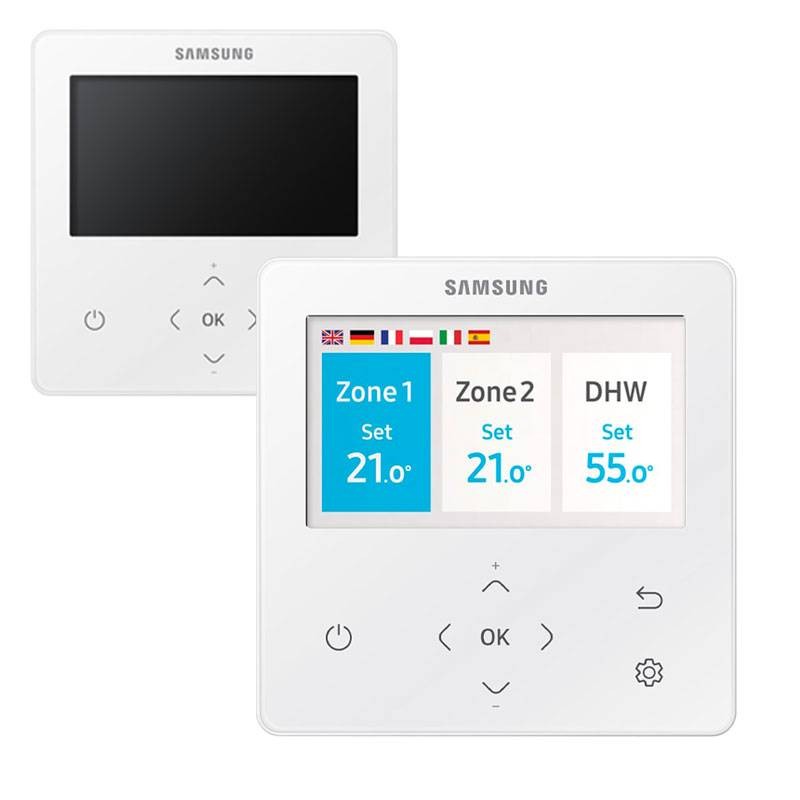

- Multizone Management: Through the control, two different temperature zones can be created and managed.
Option to purchase SmartThings separately: Through a single SmartThings APP, intuitive and simplified management of the heat pump, Samsung appliances and all devices from partner companies already integrated in the application is possible, even remotely.
There are no reviews
Data sheet
- Type: Integrated systems
- Gas: R32
- Thermal power: 6 kW
- Energy class: A+++
- Series: EHS Split +Climatehub
