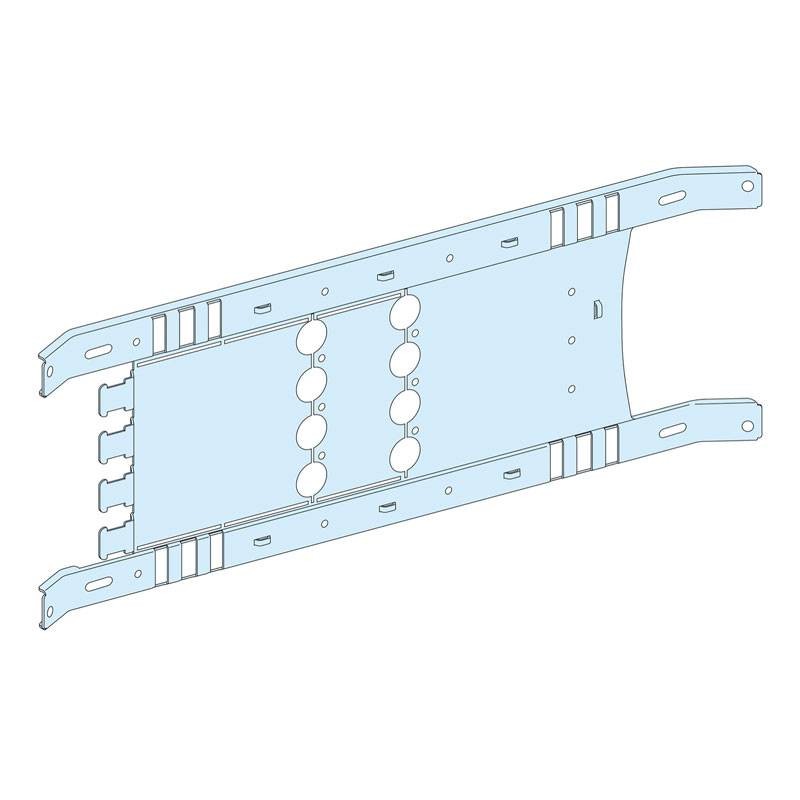

Fixed Bottom Plate NSX-INS Schneider PrismaSeT P 630A 5M LVS03452

Schneider
Schneider
SNR LVS03452 3606481874375

NSX-INS Schneider PrismaSeT P fixed bottom plate with the following features:

  • Product range: PrismaSeT P
  • Product type or component: mounting plate
  • Compatibility range: PrismaSeT - PrismaSeT P cubicle
  • Reference Standards: IEC 61439-2
  • Product Certifications: ASTA
  • Material: Sheet steel
  • Protection treatment: Electrophoresis treatment and cured polyester epoxy powder
  • Surface finish: matte textured

Request info about this product

Fixed Bottom Plate NSX-INS Schneider PrismaSeT P 630A 5M LVS03452

€192.42 Tax included
€192.42

Fixed Bottom Plate NSX-INS Schneider PrismaSeT P 630A 5M LVS03452

€192.42
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 9
Altre disponibilità dal produttore
qty

Fixed Bottom Plate NSX-INS Schneider PrismaSeT P 630A 5M LVS03452

€192.42

Calculate shipping cost
Buy it within and receive it from Tuesday, 11 November
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Device installed:

  • Easypact: fixed CVS400 without differential protection - control: lever - horizontal installation
  • Easypact: fixed CVS630 without differential protection - control: lever - horizontal installation
  • Easypact: fixed EZC400 - Easypact: fixed CVS400 without differential protection - control: lever - horizontal installation
  • Easypact: fixed CVS630 without differential protection - control: lever - horizontal installation
  • Easypact: fixed EZC400 - control: lever - horizontal installation
  • Easypact: fixed EZC630 - control: lever - horizontal installation
  • Compact: fixed INS320...400 - control: direct front rotary operation - horizontal installation
  • Compact: fixed INS500...630 - control: direct front rotary operation - horizontal installation
  • Compact: fixed INV320...400 (no Italy) - control: direct front rotary maneuvering - horizontal installation
  • Compact: fixed INV500...630 (no Italy) - control: direct front rotary operation - horizontal installation
  • Compact: fixed NSX400 without differential protection - control: lever - horizontal installation
  • Compact: fixed NSX630 without differential protection - control: lever - horizontal installation
  • Easypact: fixed CVS400 with differential protection - control: lever - horizontal installation
  • Easypact: fixed CVS630 with differential protection - control: lever - horizontal installation
  • Compact: fixed NSX400 with differential protection - control: lever - horizontal installation
  • Compact: fixed NSX630 with differential protection - control: lever - horizontal installation

Description poles:

  • 1 4P: fixed CVS400 horizontal installation
  • 1 4P: fixed CVS630 horizontal installation
  • 1 4P: fixed EZC400 horizontal installation
  • 1 4P: fixed EZC630 horizontal installation
  • 1 3P: fixed INS320...400 horizontal installation
  • 1 4P: fixed INS320...400 horizontal installation
  • 1 3P: fixed INS500...630 horizontal installation
  • 1 4P: fixed INS500...630 horizontal installation
  • 1 3P: fixed INV320...400 (no Italy) horizontal installation
  • 1 4P: fixed INV320...400 (no Italy) horizontal installation
  • 1 3P: fixed INV500...630 (no Italy) horizontal installation
  • 1 4P: fixed INV500...630 (no Italy) horizontal installation
  • 1 4P: fixed NSX400 horizontal installation
  • 1 4P: fixed NSX630 horizontal installation

Number of vertical modules (50mm):

  • 5 modules: CVS400 without differential protection , direct in 650 mm cabinet
  • 5 modules: CVS630 without differential protection , direct in 650 mm cabinet
  • 5 modules: EZC400, direct in 650 mm cabinet
  • 5 modules: EZC630, direct in 650 mm cabinet
  • 5 modules: INS320...400, direct in 650 mm cabinet
  • 5 modules: INS500...630, direct in 650 mm cabinet
  • 5 modules: INV320...400 (no Italy), direct in 650 mm cabinet
  • 5 modules: INV500...630 (no Italy), direct in 650 mm cabinet
  • 5 modules: NSX400 without differential protection , direct in 650 mm cabinet
  • 5 modules: NSX630 without differential protection , direct in 650 mm cabinet
  • 5 modules: CVS400 with differential protection , direct in 650 mm cabinet
  • 5 modules: CVS630 with differential protection , direct in 650 mm cabinet
  • 5 modules: NSX400 with differential protection , direct in 650 mm cabinet
  • 5 modules: NSX630 with differential protection , direct in 650 mm cabinet

Dimensions and weight:

  • Height: 250 mm
  • Width: 650 mm
  • Weight: 1.76 kg

There are no reviews

Data sheet

Type:
Plates
Modules:
5
Amps:
630A
