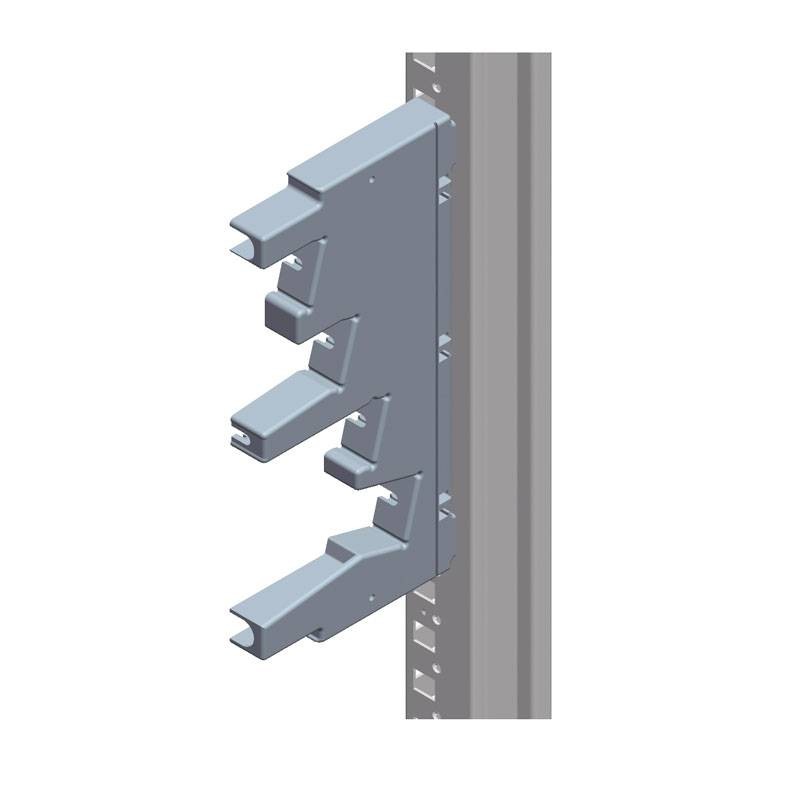

Schneider Prism G Copper Conduit Bar Holder 04192
SNR 04192
3303430041924
Schneider copper busbar duct support with the following features:
- Product type or component: Busbar duct support
- Product name: Copper bus bars
- Range compatibility: Linergy (copper bus bars) busbar - Prism (Prism G) Cassette
- Weight: 200 grams
Schneider Prism G Copper Conduit Bar Holder 04192
€34.58
Tax included
€34.58
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 25
Pay in installments with Klarna
Allowable current:
- 160 A - distribution bar cross section: 15 x 5 mm
- 250 A - distribution bar cross section: 20 x 5 mm
- 400 A - distribution bar cross section: 32 x 5 mm
- 630 A - distribution bar cross section: 32 x 8 mm
Rated allowable short-time current:
- 10 kA (1 s) at 160 A for 450 mm between support spacing
- 20 kA (1 s) at 400 A for 300 mm between support spacing
- 13 kA (1 s) at 250 A for 450 mm between support spacing
- 15 kA (1 s) at 400 A for 450 mm between support spacing
- 15 kA (1 s) to 630 A for 450 mm between support spacing
- 20 kA (1 s) to 630 A for 300 mm between support spacing
- 25 kA (0.6 s) at 400 A for 300 mm between support spacing
- 25 kA (1 s) at 630 A for 300 mm between support spacing
There are no reviews
Data sheet
- Type: Accessories
