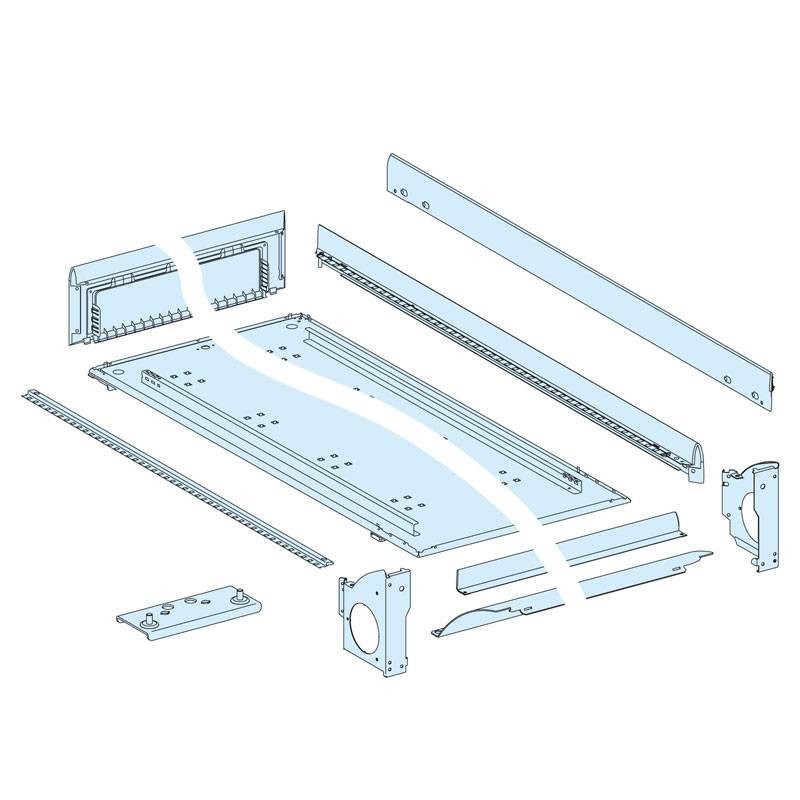

Schneider Prisma G trunking for cabinets 36M IP43 L300 mm LVS08275
SNR LVS08275
3606481876492
Schneider Prism G trunking for cabinets with the following features:
- Product range: Prism G
- Number of vertical modules (50 mm): 36
- Number of 18 mm modules per row: 10
- Rated insulation voltage: 1000 V on main rear bus ducts complying with IEC 61439-2
- Mains frequency: "50/60 Hz"
- Rated current In: 630 A at 40 °C in accordance with IEC 61439-2
- Rated short-time admissible current: 25 kA 1 s complying with IEC 61439-2
- Peak rated allowable current Ipk: 53 kA complying with IEC 61439-2
- Electrical insulation class: Class I
- Protection treatment: Electrophoresis treatment and cured polyester epoxy powder
- Surface Finish: Matte Smooth
- Color: White
- Width: 300 mm
- Height: With plinth: 1980 mm
- Depth: 205 mm
Schneider Prisma G trunking for cabinets 36M IP43 L300 mm LVS08275
€477.71
Tax included
€477.71
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 6
: 2
Pay in installments with Klarna
There are no reviews
Data sheet
- Type: Accessories
- Modules: 36
- Degree of protection: IP43
