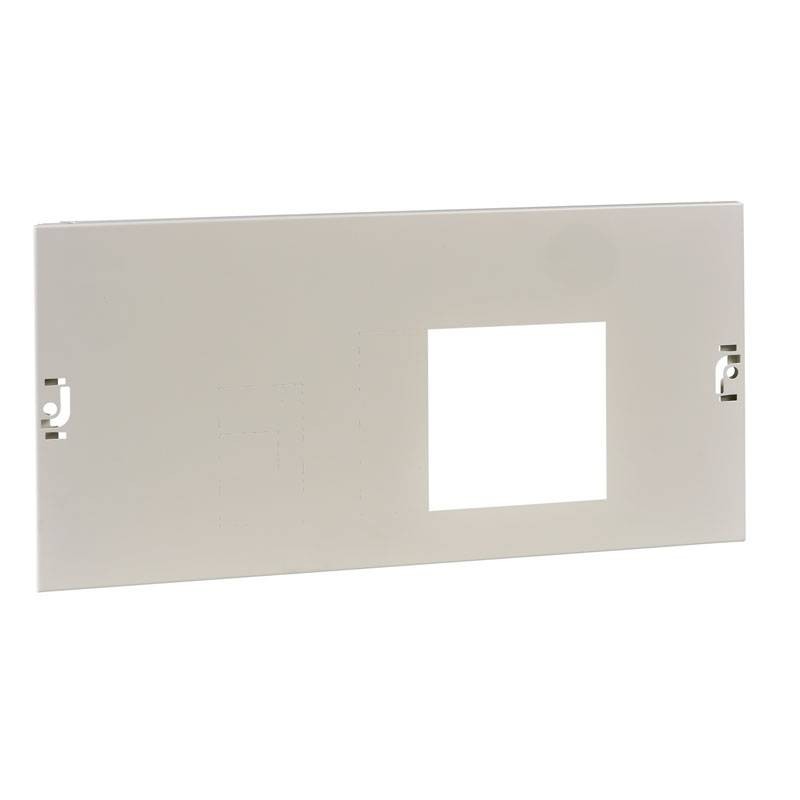

Schneider PrismaSet P front plate NSX400/630 fix dir 4P 5M LVS03644

Brand: Schneider

Cod: SNR LVS03644 EAN: 3606481866127

Schneider PrismaSet P NSX400/630 fix dir 4P face plate with the following features:

Product range: PrismaSet P
Product type or component: Front plate
Compatibility range: PrismaSeT - PrismaSeT P box
Face plate type: Blanked
Operating position: Horizontal
Enclosure Description: Cabinet width 650 mm depth 400 mm
Connection position: Direct connection
Number of vertical modules (50 mm): 5
Reference Standards: IEC 61439-2 - IEC 61439-1
Product certifications: STARE
Surface finish: Matt textured
Protection treatment: Electrophoresis treatment and cured polyester epoxy powder

Data sheet LVS03644 IT

Schneider PrismaSet P front plate NSX400/630 fix dir 4P 5M LVS03644

€50.25 Tax included

€50.25

Schneider PrismaSet P front plate NSX400/630 fix dir 4P 5M LVS03644

€50.25
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 12

Altre disponibilità dal produttore

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

Device installed:

Compact: fixed NSX400 without differential protection - control: lever - horizontal installation
Compact: fixed NSX630 without differential protection - control: lever - horizontal installation
Easypact: fixed CVS400 without differential protection - control: direct front rotary operation - horizontal installation
Easypact: fixed CVS630 without differential protection - control: direct front rotary operation - horizontal installation
Compact: plug-in NSX400 without differential protection - control: lever - horizontal installation
Compact: fixed NSX400 without differential protection - control: direct front rotary operation - horizontal installation
Compact: fixed NSX400 without differential protection - control: motor mechanism - horizontal installation
Compact: plug-in NSX400 without differential protection - control: direct front rotary operation - horizontal installation
Compact: plug-in NSX400 without differential protection - control: motor mechanism - horizontal installation
Compact: plug-in NSX630 without differential protection - control: lever - horizontal installation
Compact: fixed NSX630 without differential protection - control: direct front rotary operation - horizontal installation
Compact: fixed NSX630 without differential protection - control: motor mechanism - horizontal installation
Compact: plug-in NSX630 without differential protection - control: direct front rotary operation - horizontal installation
Compact: plug-in NSX630 without differential protection - control: motor mechanism - horizontal installation
Easypact: fixed CVS400 with differential protection - control: direct front rotary operation - horizontal installation
Easypact: fixed CVS630 with differential protection - control: direct front rotary operation - horizontal installation
Compact: fixed NSX400 with differential protection - control: lever - horizontal installation
Compact: plug-in NSX400 with differential protection - control: lever - horizontal installation
Compact: fixed NSX400 with differential protection - control: direct front rotary operation - horizontal installation
Compact: fixed NSX400 with differential protection - control: motor mechanism - horizontal installation
Compact: plug-in NSX400 with differential protection - control: direct front rotary operation - horizontal installation
Compact: plug-in NSX400 with differential protection - control: motor mechanism - horizontal installation
Compact: fixed NSX630 with differential protection - control: lever - horizontal installation
Compact: plug-in NSX630 with differential protection - control: lever - horizontal installation
Compact: fixed NSX630 with differential protection - control: direct front rotary operation - horizontal installation
Compact: fixed NSX630 with differential protection - control: motor mechanism - horizontal installation
Compact: plug-in NSX630 with differential protection - control: direct front rotary operation - horizontal installation
Compact: plug-in NSX630 with differential protection - control: motor mechanism - horizontal installation
