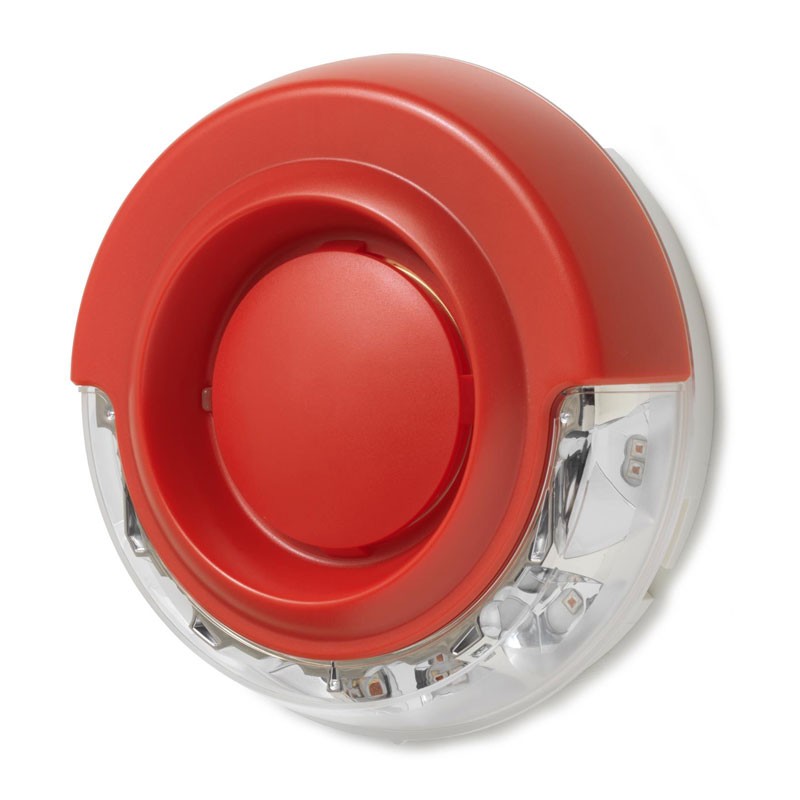

Siemens Cerberus FIT FDS366-RR Optical/Acoustic fire alarm unit
SIE S54364F105A1
Siemens Cerberus FIT wall-mounted optical/acoustic fire detector for use with the C-NET line of addressable detectors. In the event of a fire alarm the devices emit an alarm signal, both audible and optical (LEDs flash).
This device works exclusively in combination with a Cerberus FIT FC360 fire alarm control panel. Reference standards: EN 54-3, EN 54-23.
Siemens Cerberus FIT FDS366-RR Optical/Acoustic fire alarm unit
€94.47
Tax included
€94.47
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 38
Pay in installments with Klarna
Features:
- Standard EN 54-3 , EN 54-23 , EN 54-17
- Protection category IP33C; IP65 with base deep
- Power supply DC 1633 V
- Operating temperature -2570 °C
- Operating current 420 mA (tone and beacon activated)
- Number of tones 16
- Storage temperature -30...+75 °C
- Quiescent current 400 A
- 95 % relative humidity
- Sound intensity 7599 dB (A)
- Light intensity Medium = W-2.4-7.5 Indicator
- Cable capacity 0.22.5 mm2
- Communication protocol C-NET
- System compatibility C-NET -> FC360
- Dimensions (Ø x H) 116 x 42.7 mm
- Colour Flame red, ~RAL 3000
- Accessories FDB226-R Base (wall mounting), red , FDB227-R Base deep (wall mounting), red , FDBZ293 Detector locking device , LP720 Detector locking device.
There are no reviews
Data sheet
- Type: Sirens
