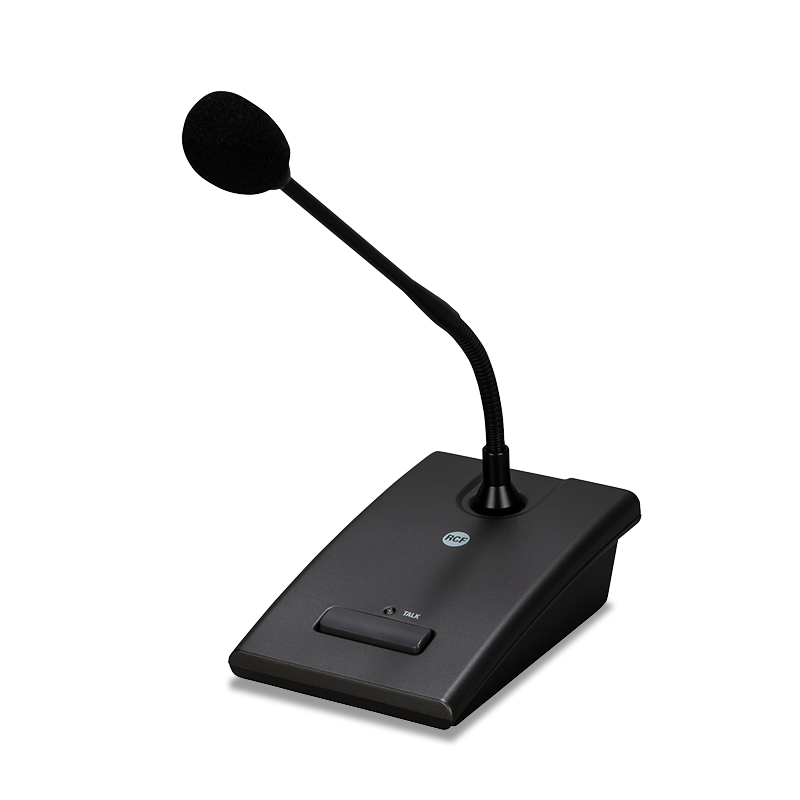

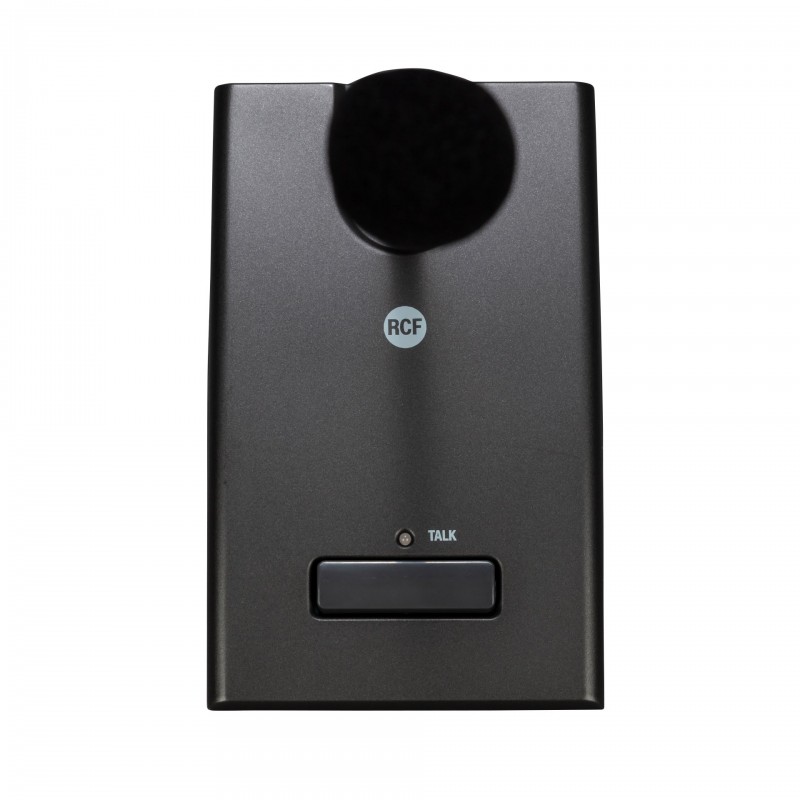

RCF Microphone Base for Ads 3022 PREAM 14322013
MAD 14322013
RCF microphone base for BM 3022 announcements, with the following characteristics:
- Operating voltage: (V ~ Hz): 24.00V ~ Hz
- Power consumption (mA): 2.80 mA
- Type/model: tabletop with electret capsule
- Directivity: Cardioid
- Sensitivity (dB): -65 dB
- Frequency response (-3dB): 200 Hz ÷ 7 kHz
- Output impedance (ohms): 130.00 ohms
- Minimum load impedance (ohms): 470.00 ohms
- Signal-to-noise ratio @ 1 kHz (dB) 82.00 dB
- Total harmonic distortion @1 kHz (%) 0.65 %
- With cable included, cable length 5 meters
RCF Microphone Base for Ads 3022 PREAM 14322013
€335.22
Tax included
€335.22
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
Strengths:
- Plastic body particularly resistant to impact and rubbing, with 300 mm long flexible arm
- High-quality electret microphone capsule with polyurethane foam windbreak cap
- Microphone insertion button with LED indicator
- Its audio output signal level (balanced and trimmer-adjustable) allows its connection to "line" type inputs of mixer-amplifiers even at long distances (up to 1 km) via CAT5 cable
- Automatic "AGC" gain control (switchable)
- Up to 30 BM 3022 microphone bases can be connected serially (in a single line) and used in mixing (several microphones on at the same time) or interlocking (only one microphone active at a time) One or more microphone bases can be prioritized, with the possibility of intervening at any time by temporarily disabling the others
- After activation, the announcement can be preceded by a warning tone (built-in)
- 24V power supply via 230V adapter included
Other technical features:
- Console type: paging
- Connectable microphone bases: 30
- Compatible with DXT 3000 series
- General call: yes
- Preamplified: yes
- LED indicators: yes
- Connections: RJ45
- Conforms to CE mark
- Body material: plastic
Functionality:
- Priority: yes
- VOX:si
- Din-Don generator: yes
- Smart PTT: yes
- Automatic gain control: yes
Dimensions and weight:
- Height: 48 mm / 1.89 inches
- Width: 100 mm / 3.94 inches
- Depth: 159 mm / 6.26 inches
- Weight: 0.74 kg / 1.63 lbs
