Fischer double thread screw for photovoltaic installations M12x350mm 00570113
FIS 00570113
8001132718285

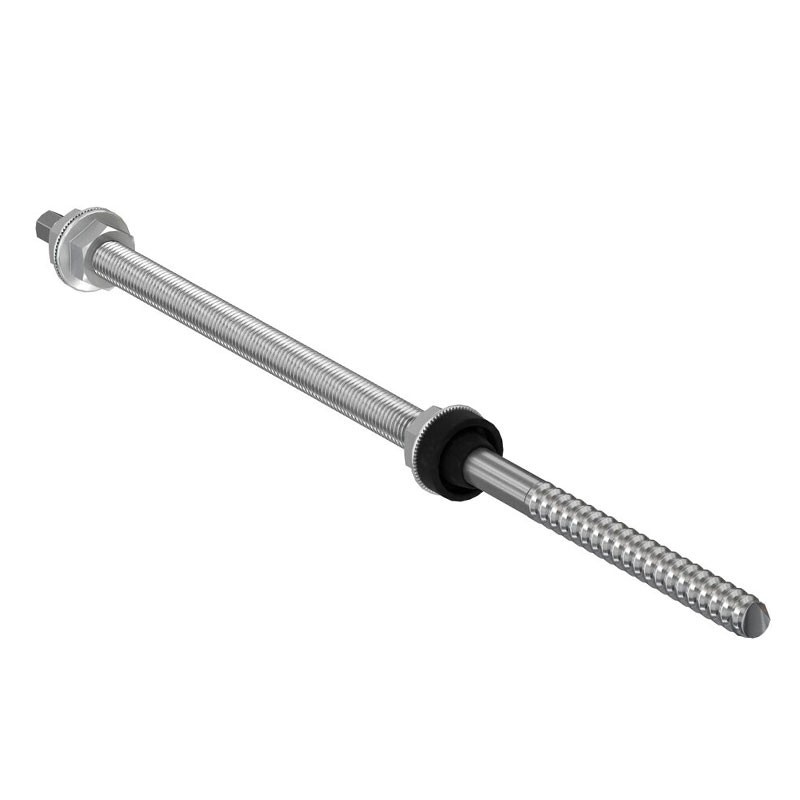

Fischer STSR double thread screw, size M12x350mm Inox, for photovoltaic installations on corrugated slab roofing with wood or concrete supporting structure.
Fischer double thread screw for photovoltaic installations M12x350mm 00570113
€6.23
Tax included
€6.23
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1168
: 112
Pay in installments with Klarna
STSR is the double-threaded A2 stainless steel screw for fastening substructures for photovoltaic systems on corrugated or faux-roofing slabs with wooden supporting structure.
Also suitable for installation on concrete with chemical anchor or on lateral-cement with chemical anchor and FIS HK mesh anchors or FIS HN sock anchors. Integrated EPDM gasket for sealing against rain infiltration. Requires pre-drilling.

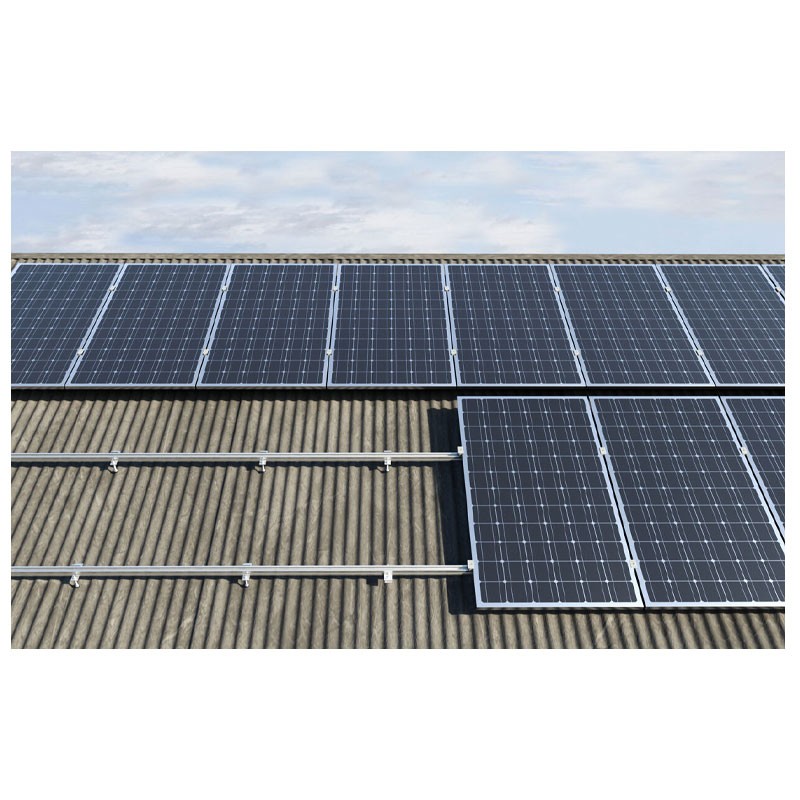

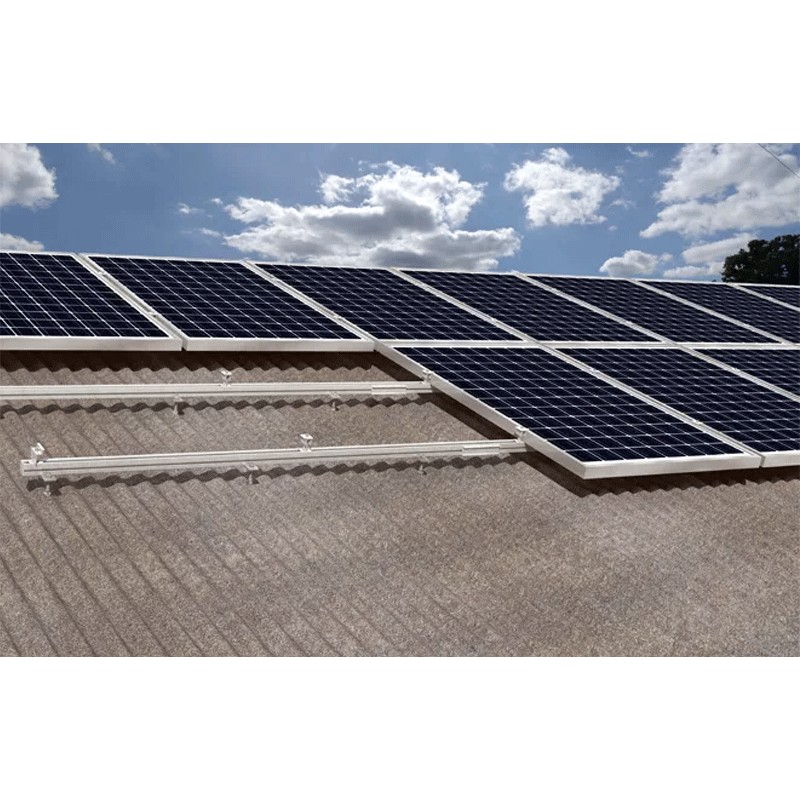

Suitable for Corrugated sheet roofing system with:
- Solar-light profile
- Solar-fish profile
Fixing STSR double-threaded screw:
- With FIS V chemical anchor on concrete beams and slabs
- With FIS V chemical anchor and FIS HK mesh dowel on concrete floor slabs
- Directly on wooden beams after drilling the guide hole
Applications:
- Concrete beams and slabs
- Engineered concrete slab
- Wooden joists
Assembly:
- Identify the length of the STSR double-threaded screw according to the thickness of the supporting structure
- Define the spacing of STSR double-threaded screws according to the snow and wind loads of the installation area of the system and roof pitch
- Locate the position of STSR double-threaded screws according to the supporting structure and plant layout
- Drill the support according to the diameter of the screw and the type of support

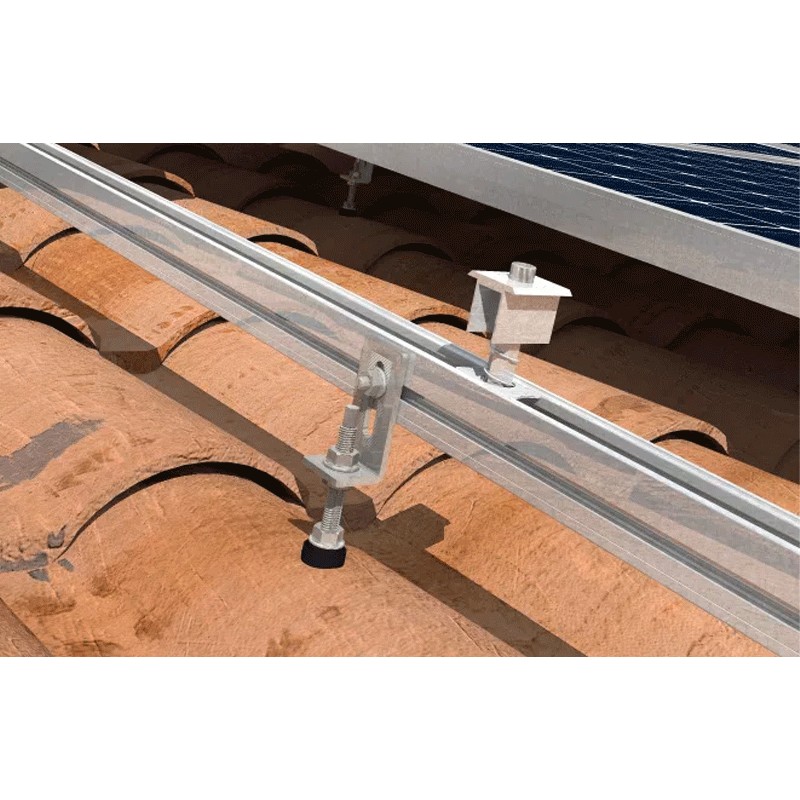

- Attach the STSR double-threaded screw to the structure by bringing the EPDM rubber into contact with the cover
- Tighten the MU F flange nut on the gasket to maintain the watertight seal
- Attach the SSP or MW connection plate, adjusting its height using the MU F nuts

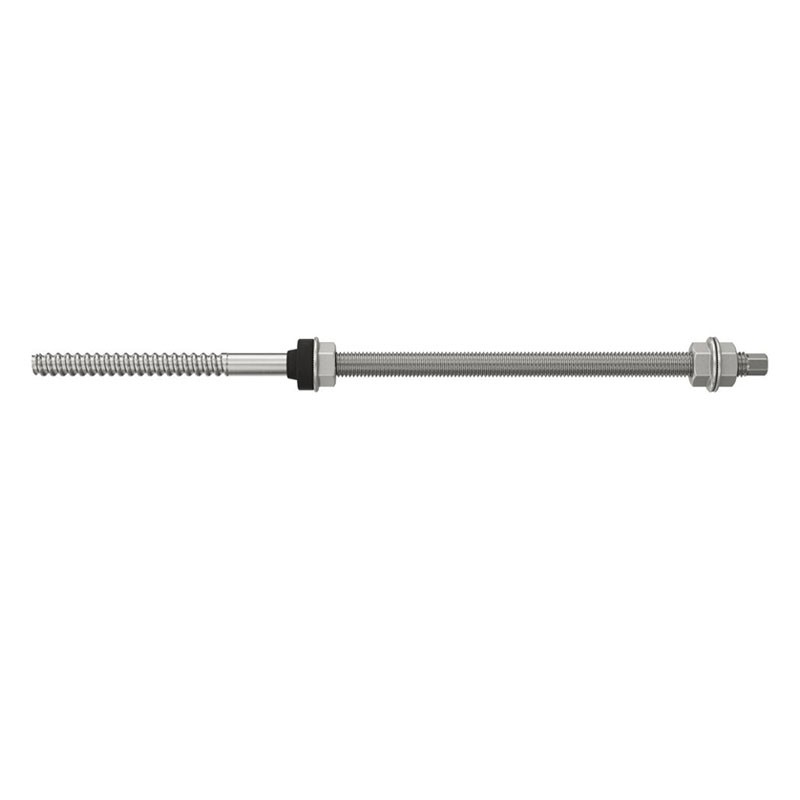

Features:
- Certifications: TUV - R 60154136
- Diameter: 11mm
- Total length 350mm
- Metric top thread: M12mm
- Wooden thread length 100 mm
- Metric thread length 200 mm
- Shank length 35 mm
- Integrated EPDM gasket
- Made of A2 stainless steel
- Weight 0.32 kg
Consigliata dai tecnici per l'installazione solare termico sul tetto. Ho trovato la misura giusta ad un ottimo prezzo
Data sheet
- Type: Screws
