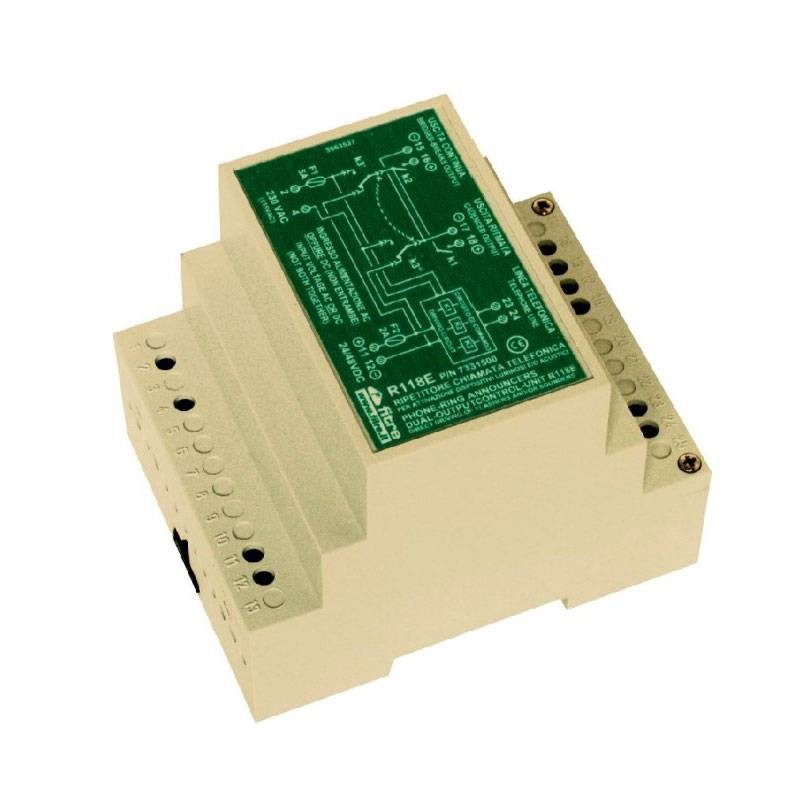

Fitre electronic call repeater R118E 7331500
FTR 7331500
Fitre R118E electronic call repeater with the following features:
- Electronic call repeater with dual output
- Universal multi-voltage model: 24-48Vdc, 230Vac/50Hz or 115Vac/50-60Hz
- Compatible with call signals from normal telephone lines (PSTN or PABX)
- Prepared for operation with call signals from BL lines
- Dual output: "Continuous" or "Rhythmic"
- Power supply of external devices by the same supply voltage
- Provision for control output on 'dry' contacts
- Dimensions: 72x91x70 mm (HxWxD)
- Prepared for installation on Omega DIN rail EN50022
Fitre electronic call repeater R118E 7331500
€237.43
Tax included
€237.43
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
Pay in installments with Klarna
The R118E repeater, connected in parallel to a telephone line, is activated by incoming telephone calls and is capable in turn of commanding a set of any auxiliary devices (luminous, acoustic or other) using a locally available supply voltage.
The R118E has two outputs, with different modes for controlling the respective external device: "continuous" mode, which is normally used to control luminous devices; "rhythmic" mode, which is normally used to control acoustic devices. Each output directly supplies its respective mode to its external device via the same supply voltage (dc or ac) that powers the R118E device. Optionally, it is possible to control the external devices by means of "dry", voltage-free contacts. The device is prepared for installation, docking, on DIN EN50022 Omega bar, without the need to drill holes.
There are no reviews
Data sheet
- Type: Repeaters call
