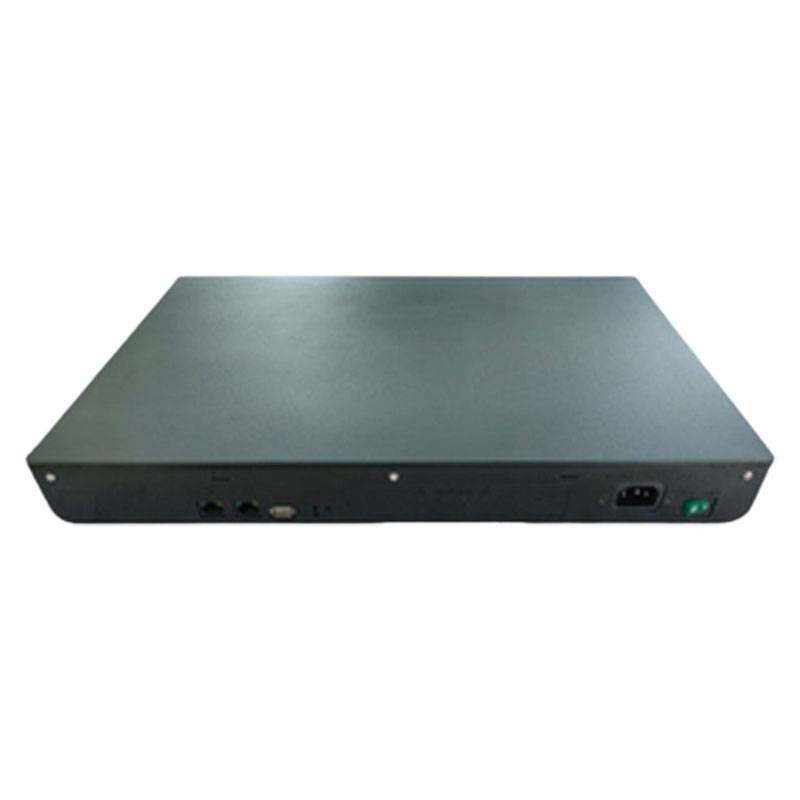

ML300 is a modular analog, ISDN and VoIP equipped 0/0 telephone switchboard with 6 equipment card slots for up to 48 ports and courtesy responder.

Equippable up to: 100 VoIP users, 48 analog users, 16 digital system telephones, 50 SIP Trunks, 16 analog Trunks, 64 VoIP channels, 16 VMS channels.

Programming via browser.

Main ML300 central station services:

• Auto sign-in via email: the central unit sends an email to the user, which allows the user to automatically configure the Fitre ML mobile application
• Handset undocked alert: the central unit notifies theOperator defined during installation that an extension has its handset undocked
• Voice mailbox backup: by activating the function, all audio messages are automatically saved to a network resource to prevent accidental loss
• BLF (Busy Lamp Field): allows the free/busy status of extensions and outside lines to be displayed on SIP standard VoIP phones
• Call Budget: each outside line and extension can be assigned a budget, on a cost or time basis, to limit outgoing calls
• Call Forking: each user can have up to 3 VoIP, system or SIP-standard (e.g. DECT300) terminals associated with his or her extension and operating simultaneously
• Personal and group voice mailboxes
• System voice mailbox for saving messages from full personal and group voice mailboxes
• Alternate calling
• Hands-free intercom call with auto-reply
• Emergency call
• Class of service
• LDAP client: allows synchronization of the exchange's address book with the company's address book
• CLIP/CLIR: display or obscure own number in outgoing calls
• Job codes
• Customizable service codes
• Connection to non-proprietary intercom systems
• Conferencing: up to 48 participants in total
• Dial-in conference
• Guided configuration for quick and easy installation and commissioning
• Connecting remote locations
• Call accounting
• Call forwarding
• Scheduled call detour on an hourly basis
• Forced disconnection
• Outside line bundles of up to 6 outside line bundles customizable per individual user
• Fax Over IP: allows FAX to be sent and received on VoIP outside lines to SIP standard using T.30 and T.38 protocols
• Built-in firewall: to prevent unauthorized access from outside
• Flash over urban: to access additional services provided by telephone operators
• Follow Me
• Day/Pause/Night operation and holiday management
• Hotel management
• Priority management between extensions
• Extension groups: up to 5 groups each consisting of up to 32 extensions, with dedicated voicemail and call forwarding service
• Immediate hotline or with adjustable delay
• Programmable line impedance
• Inclusion: sends an audible alert to a busy extension to notify it of the need to establish communication with it (reminder on busy)
• Email forwarding of voice messages left in box
• CLI-based routing the incoming call is routed according to the caller's number
• Integration with DECT/IP system Fitre SELEDECT
• Interception: allows you to answer from your extension to a direct call to another extension
• Intrusion: allows you to insert yourself into an ongoing conversation by turning it into a 3-way conference
• LCR (Least Cost Routing): routes the outgoing call to the most convenient line
• Allowed/blocked numbers list
• System Activity Log
• Macros: allow shortening the typing of the most frequently used service codes to activate or deactivate user services
• Putting on hold
• Mobility: advanced features for smart working
• Music on hold customizable: the central unit is provided with its own music on hold that can be replaced at will, simply by uploading an audio file from your PC
• Mute: allows telephone terminals that do not have it to take advantage of this service
• Do not disturb: temporarily prevents receiving incoming calls. Can be set for internal calls only, external calls only, or both
• Notification of presence of new voicemail messages: locally, by turning on a specific LED on the phone concerned (obviously the phone must be of the advanced type and have such a led, such as Fitre ML phones, TF615IP and TF425+), and/or remotely by sending an email to the voicemail owner's address with the voicemail message attached or a phone call to a specified number
• Flexible internal numbering up to 6 digits
• Personal numbering
• Multilevel automated operator
• Time and date: automatic update via NTP protocol
• Paging between extensions: allows you to make an announcement from your extension to other VoIP, system or SIP standard extensions, such as telephones, speakers, public address systems and horns
• Exclusive or general call parking
• Outside line reservation
• Presence: notifies, by displaying on the display of system or SIP-standard VoIP telephones, one's current busy or available status, thus reducing the risk of being unnecessarily disturbed. There are 10 statuses available, 4 of which are programmable, identified by a short text message
• Programming via browser
• Reminders with date and time
• ML phone provisioning: simplifies configuration and customization of ML phone system VoIP phones
• Call recording
• Continuous, periodic or on-demand call reporting
• Automatic redialing
• Automatic last number redial allows terminals without it to take advantage of this service
• Courtesy answering machine with direct extension dialing (DISA)
• Forced answer: forcibly puts the called extension in answer by activating the speakerphone of its phone; the called phone must be a VoIP System ML phone
• Room monitor: allows listening to noises and sounds coming from the room where the phone on which the service is activated is located
• Personal and system phonebook
• Abbreviated dialing
• Through dialing on SIP VoIP trunk
• Selection by name
• SMS to Email / Email to SMS: simplifies sending and receiving SMS by allowing any Email client to be used from a PC or smartphone
• APNS and FCM support: support for Apple and Google platforms for push notifications, simplifies dialogue with ML phone mobile applications, reducing data traffic and battery consumption of your smartphone
• Secure SIP support: allows you to encrypt any VoIP phone call, internal or external, ensuring maximum privacy and security
• SMTP and SNMP support: the SMTP protocol allows the control center to send emails to internal users; the SNMP protocol enables efficient management and control of the control center's operating status at the network level
• Daily and individual alarm clocks
• Ring test of own phone
• Blind and consulted transfer
• Video calls
• VMS with multilingual support
